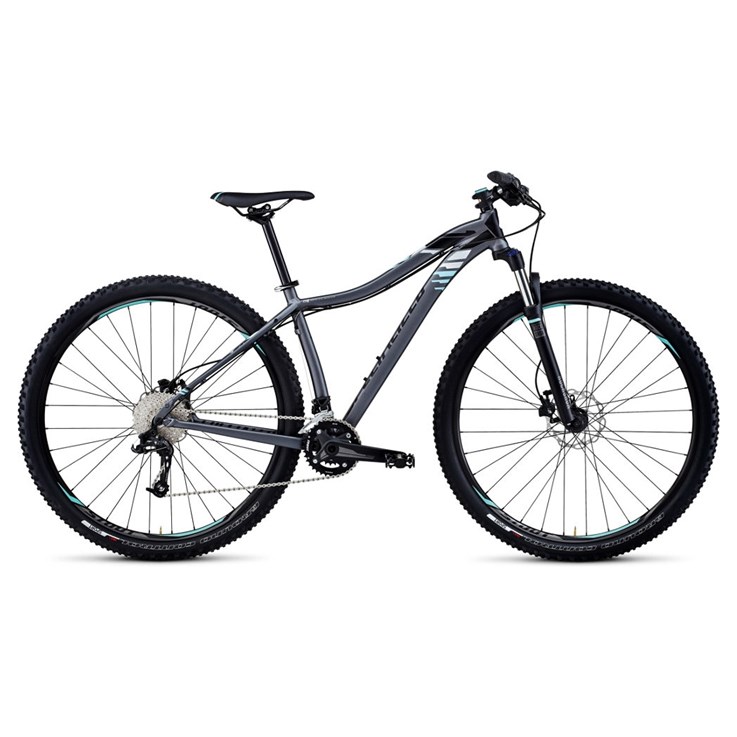

Specialized Jett 29 Askgrå/Tealblå

Cykelbeskrivning

Jett provides the smooth ride and improved handling of 29" wheels in an M4 aluminum XC trail bike designed just for women. The all-new Jett 29 Comp hardtail features Women's XC 29er Geometry, custom-tuned 80mm-travel RockShox 29 fork, and Tektro Draco hydraulic disc brakes with women's shorter reach levers for precise braking and durability.

>Fully butted, smooth-welded M4 Premium Aluminum frame with Women's XC 29er Geometry delivers a confident and lightweight ride, with integrated headset for precision handling.
>Custom-tuned 80mm-travel RockShox 29" fork with hydraulic damping, lockout, and women's spring weights delivers the supple ride qualities of a premium suspension fork.
>Lightweight and durable double-wall alloy rims are tough enough to handle the rough stuff.
>Custom Samox crankset with forged alloy arms and Octalink-splined BB interface means greater durability and better shifting performance.
>Tektro Draco dual-piston hydraulic disc brakes and women's shorter reach levers assure precise braking and durability.
>Women's Body Geometry Riva Comp saddle features a women's cutout and plush seating area for all-day riding comfort.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

Specialized Jett M4 Premium Aluminum, Women's XC 29er Geometry and tubesets, fully butted w/ smooth welds, integrated headset, forged post-mount 160mm dropouts w/ replaceable hanger, disc only

SWAT (Storage, water, air and tools)

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

RockShox XC28 29, TurnKey hydraulic damping w/ lockout, coil spring w/ custom women's spring weights, 1-1/8" alloy steerer, mag disc only post-mount lower, 28mm steel stanchions, preload and rebound adj., 80mm travel, SM/15: 51mm offset, MD/17 and LG/19: 46mm offset

Styrlager

1-1/8" threadless, Campy style, integrated full cartridge bearings

Styrstolpe eller ev. styrstam

Specialized 3D forged alloy, 4-bolt clamp, 6-degree rise, 31.8mm

Styre

Specialized flat bar, double-butted 6061 alloy, 660mm wide, 10-degree backsweep, 4-degree upsweep, 31.8mm

Handtag

Specialized Women's Body Geometry XCT, Kraton w/ gel, closed end, lock-on

Bromsar fram

Tektro Draco 2, hydraulic disc, dual piston, Light Wave style rotor, 160mm rotor

Bromsar bak

Tektro Draco 2, hydraulic disc, dual piston, Light Wave style rotor, 160mm rotor

Bromshandtag

Tektro Draco 2, hydraulic lever, women's shorter reach

Växelförare fram

SRAM X5, 10-speed, 34.9mm clamp

Växelförare bak

SRAM X5, 10-speed

Växelreglage

Shimano Alivio, 9-speed Rapidfire Plus, w/ optical display

Kassett eller ev. drev bak

Shimano HG-20, 9-speed, 11-34

Kedja

KMC X9

Vevparti

Custom Samox, 9-speed

Vevparti utväxling

44/32/22, steel

Vevlager

Shimano, Octalink spline, cartridge bearings, 73mm shell

Pedaler

Composite platform, w/ reflectors, 9/16"

Fälgar

Stout Disc 29", alloy double-wall, 26mm, pin joint, 36h

Nav fram

Specialized disc, alloy, Hi Lo flange, cartridge bearings, steel axle, QR, 36h

Nav bak

Specialized disc, alloy, Hi Lo flange, cartridge bearings, steel axle, steel cassette body, QR, 36h

Ekrar

Stainless, 14g (2.0mm)

Däck fram

Specialized Ground Control Sport, 29x2.1", wire bead, 60TPI

Däck bak

Specialized Ground Control Sport, 29x2.1", wire bead, 60TPI

Innerslang

Standard presta valve

Sadel

Specialized Body Geometry Riva Comp Women's, hollow Cr-Mo rails, 155mm

Sadelstolpe

Alloy, 2-bolt, 12.5mm offset, 27.2mm

Sadelstolpsklämma

Alloy, 31.8mm, QR, brass washer

Övrigt

Ramgeometri

Frame size

15.0 17.0 19.0.

Bottom bracket drop

63.5mm 63.5mm 63.5mm.

Bottom bracket height

305mm 305mm 305mm.

Chainstay length

442mm 442mm 442mm.

Crank length

170mm 170mm 170mm.

Handlebar width

660mm 660mm 660mm.

Head tube angle

70.5° 71° 71°.

Head tube length

90mm 100mm 115mm.

Reach

377mm 396mm 412mm.

Seat tube angle actual

71° 71° 71°.

Seat tube angle effective

73.5° 73.5° 73.5°.

Seat tube length center to top

381mm 431.8mm 482.6mm.

Seatpost length

350mm 350mm 400mm.

Stack

590mm 604mm 618mm.

Standover height

710mm 741mm 775mm.

Stem length

60mm 75mm 75mm.

Top tube length actual

530mm 549mm 570mm.

Top tube length horizontal

552mm 575mm 595mm.

Wheel base

1056mm 1068mm 1089mm.
