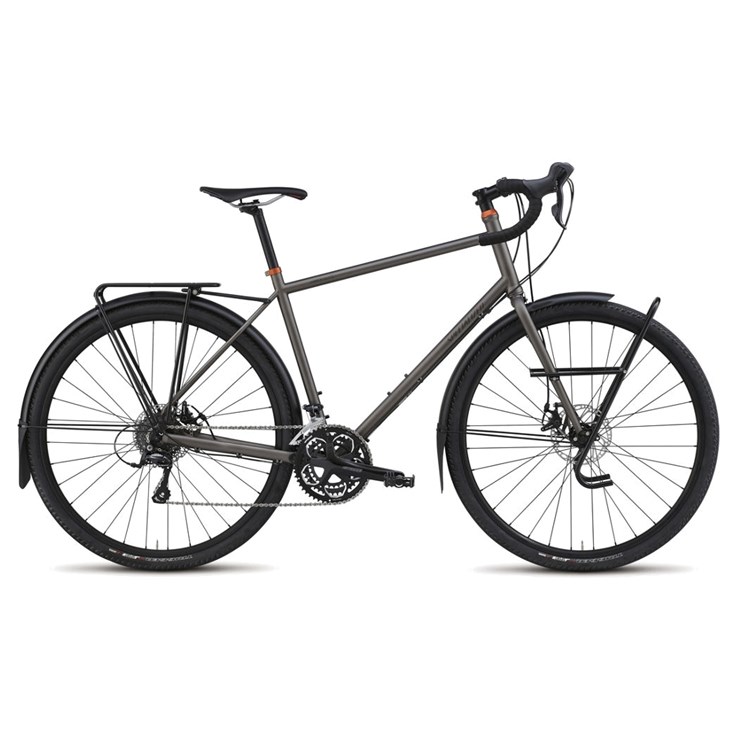

Specialized Awol Elite Gunmetal/Orange Ano

Cykelbeskrivning

No matter the terrain or adventure, the AWOL Elite is up to the task. The Cr-mo frame is plenty stiff with enough compliance for all day comfort and the integrated rack/fender mounts assure you have the option to always ride prepared.

>Strong, light, and compliant Cr-Mo frame provides all day comfort w/o sacrificing weight.
>Butted Cr-Mo fork w/ rack/fender mounts provides confident steering at a low weight.
>Specialized Trigger Sport 700x42c tires w/ BlackBelt protection for all terrain protection.
>FSA Omega, MegaExo, triple crankset for plenty of gearing options.
>Tektro Spyre, mechanical disc brakes for excellent braking performance in all conditions.
>Shimano Sora, long cage derailleur for crisp shifting across wide gear range.
>Body Geometry Phenom saddle w/ steel rails for comfort on the longest days.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

Reynolds premium Cr-Mo, fully butted

Gaffel eller ev. stötdämpare fram

Cr-Mo, unicrown, custom blade curve, w/ integrated cast dropouts

Styrlager

1-1/8" sealed Cr-Mo cartridge bearings integrated w/ headset, 15mm cone spacer

Styrstolpe eller ev. styrstam

Specialized 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware

Styre

Specialized AWOL, 6061 double-butted alloy, 12-degree flare-out, 31.8mm

Styrlinda

Specialized Roubaix, w/ 2.5mm gel pads

Bromsar fram

Tektro Spyre, mechanical disc, dual pivot

Bromsar bak

Tektro Spyre, mechanical disc, dual pivot

Bromshandtag

Shimano Sora

Växelförare fram

Shimano Sora

Växelförare bak

Shimano Sora, long cage

Växelreglage

Shimano Sora STI, 9-speed

Kassett eller ev. drev bak

Shimano, 9-speed, 11-32

Kedja

KMC X9, 9-speed, reusable Missing Link

Vevparti

FSA Omega, MegaExo, triple

Vevparti utväxling

50/39/30

Vevlager

FSA MegaExo, integrated, w/ sealed outboard bearings

Pedaler

Alloy, 1 pc. body, loose ball, w/ reflectors

Fälgar

29" disc, alloy double-wall, 32h

Nav fram

Specialized Hi Lo disc, alloy, RCC bearing system, QR, 32h

Nav bak

Specialized Hi Lo disc, alloy, RCC bearing system, QR, 32h

Ekrar

Stainless, 2.0/1.8/2.0mm

Däck fram

Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x42c

Däck bak

Specialized Trigger Sport, 60TPI, wire bead, BlackBelt protection, 700x42c

Innerslang

Standard, presta valve

Sadel

Body Geometry Phenom, steel rails, 143mm

Sadelstolpe

Specialized alloy, 27.2mm

Sadelstolpsklämma

AWOL forged alloy, CNC, stainless bolt, 29.8mm RACK Tubus Vega, Cr-Mo, w/ custom sized stays FENDERS AWOL, stainless steel, w/ stainless steel 2-bolt mounting hardware

Ramgeometri

Frame size

S M L XL.

Seat tube length bottom bracket center to top

475mm 495mm 525mm 550mm.

Top tube length horizontal

555mm 575mm 600mm 625mm.

Bottom bracket drop

70mm 70mm 70mm 70mm.

Chain stay length

455mm 455mm 455mm 455mm.

Seat tube angle

74° 73.5° 73° 72°.

Head tube angle

71° 72° 72° 72°.

Fork rake

50mm 50mm 50mm 50mm.

Trail

71mm 64mm 64mm 64mm.

Front to center

622mm 626mm 646mm 659mm.

Wheel base

1067mm 1072mm 1092mm 1104mm.

Stand over height

773.7mm 794.1mm 821.3mm 843.5mm.

Head tube length

160mm 185mm 210mm 235mm.

Handle bar width

400mm 420mm 440mm 460mm.

Stem length

60mm 80mm 80mm 90mm.

Crank length

170mm 172.5mm 175mm 175mm.

Seat post length

350mm 350mm 350mm 350mm.
