Scott Scale Big Ed

SEK
Klicka för din storlek.
  • S
  • M
  • L
  • XL
Visa storleksrekommendation.
Leverans.
från 0 kr
Läs mer.
Lager.
Ej i lager*
Läs mer.
Tillverkare.
Artikelnummer.
238247006 (S)
Övriga art.nr.
238247007 (M)
238247008 (L)
238247009 (XL)

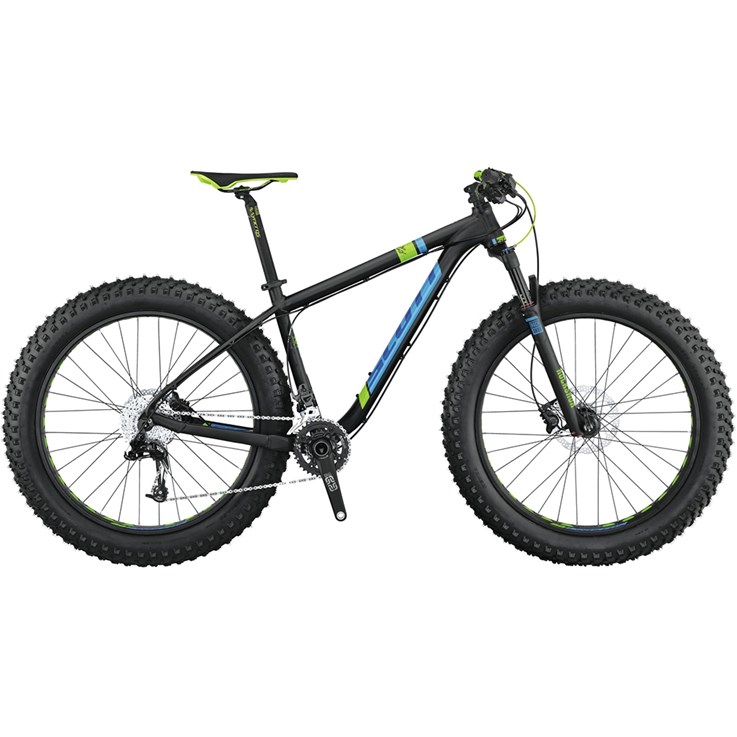

Say hello to Big Ed, our all new Fat Bike. He is equipped with a light custom butted alloy frame, a Rock Shox Bluto RL Fork, and an optimized 2x10 drivetrain. Big Ed was born for the dirt, the dunes, snow and most of all, the pub at the end of the day.

Cykelspecifikationer
Ram Big Ed Alloy 6061 custom butted tubing / Tapered HT / BB121 / 4.8" Tire clearance Integ. Headset / replaceable hanger Travel 100mm
Gaffel eller ev. stötdämpare fram Rock Shox Bluto RL Solo Air 15mm QR axle / Tapered steerer reb. Adj./ Remote Lockout 100mm travel
Gaffel övrigt Rock Shox Push Loc
Styrlager Syncros / VP-A41AC1 / 1.5" - 1 1/8" semi integ. OD 50/61mm / ID 44/55mm
Växelförare bak SRAM X9 long cage 20 Speed
Växelförare fram SRAM X7 HDM / Top pull
Växelhandtag SRAM X7 Trigger
Bromshandtag Shimano BL-M506 Disc
Bromsar Shimano BR-M506 Disc 180/F and 160/Rmm SM-RT54 CL Rotor
Vevparti E-thirteen TRS Double 36Ax22A T / Chainline 74.8mm
Vevlager E-thirteen PF integated / shell 41x121mm
Styre Syncros AM1.5 10Rise / 35mm 9° / 740mm Syncros Pro lock-on grips
Styrstam Syncros XM1.5 35mm HB diameter / 0° angle
Sadelstolpe Syncros / 31.6mm
Sadel Syncros XM2.0 / CROM rails
Nav fram KT / 32H / 150 × 15mm / CL
Nav bak KT / 32H / 190mm with QR / CL
Kedja KMC X10
Kassett eller ev. drev bak SRAM CS-PG1020 11-36 T
Ekrar Stainless Black 15G / 1.8mm
Fälgar Syncros 80 with CNC holes / 32H 80mm wide
Däck Kenda Juggernaut 26 × 4.5" / Kevlar Bead
Vikt i kg 15.30kg
Vikt i lbs 33.73lbs

Ramgeometri
S M L XL
Head tube angle 69.0 ° 69.0 ° 69.0 ° 69.0 °
Head tube length 105.0 mm 105.0 mm 115.0 mm 125.0 mm
Top tube horizontal 575.0 mm 600.0 mm 625.0 mm 650.0 mm
Standover height 787.0 mm 811.0 mm 835.0 mm 863.0 mm
Bottom bracket offset 60.0 mm 60.0 mm 60.0 mm 60.0 mm
Bottom bracket height 320.0 mm 320.0 mm 320.0 mm 320.0 mm
Wheel base 1,101.0 mm 1,126.0 mm 1,151.7 mm 1,177.4 mm
Bottom bracket center to toptube center 320.0 mm 372.0 mm 414.0 mm 465.0 mm
Bottom bracket center to top of seattube 390.0 mm 440.0 mm 480.0 mm 530.0 mm
Seat angle 73.0 ° 73.0 ° 73.0 ° 73.0 °
Chainstay 450.0 mm 450.0 mm 450.0 mm 450.0 mm
Reach 760.0 mm 760.0 mm 760.0 mm 760.0 mm
Stack 385.0 mm 410.0 mm 432.0 mm 454.0 mm
Stem length 619.0 mm 619.0 mm 629.0 mm 638.0 mm
