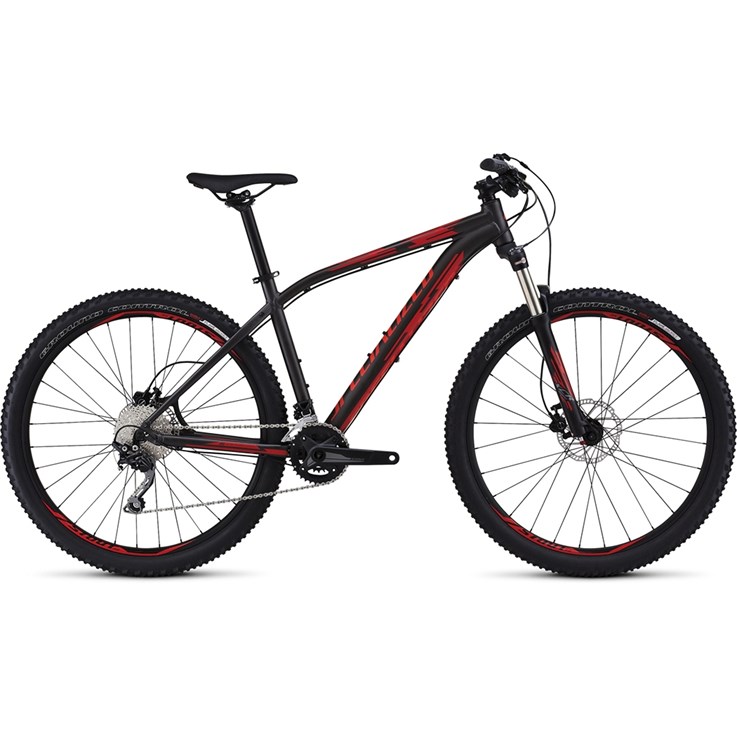

Specialized Pitch Expert 650B Satin Warm Charcoal/Flo Red/Rocket Red

Cykelbeskrivning

When it comes to mountain bike efficiency, it's hard to beat a hardtail. And when it comes to learning the ropes of mountain biking, efficiency is the name of the game. With this in mind, our Pitch Expert 650b features a hardtail design that keeps the rear end of the bike planted to the trail under effort, while our acclaimed Sport Trail 650b Geometry ensures that you'll feel comfortable and confident in the process. And to keep with this theme, it features a lightweight aluminum frame that adds to compliance on the downhill and speed when you're going up the trail. Sprinkle in a thoughtful component selection and plenty of suspension up front to get the job done, and you have yourself a bike that's ready to hit the dirt.

>The frame is constructed from lightweight A1 Premium Aluminum in order to provide a compliant, durable platform to support our acclaimed Sport Trail 650b Geometry. Combined, you get a bike that's extremely versatile, making it equally capable on the climbs and descents.
>Custom SR Suntour XCR-AIR 650b fork features our Multi-Circuit Damping technology to eliminate any "pogo" effect by delivering 80/100mm (size-specific) of hydraulic damped suspension and rebound that smooths out rough terrain.
>650b alloy Stout rims have been laced to our Stout hubs to form wheels that allow you mow over everything in sight, climb gracefully, and get to the bottom of the trail eager for more.
>With reliable traction, puncture-resistance, and sheer speed over the dirt, our 650bx2.1" Ground Control Sport tires will keep you rolling with confidence over almost any terrain.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

Specialized A1 Premium Aluminum, Sport Trail 650b Geometry, butted tube sets, externally relieved head tube, forged dropouts, reinforced disc mount, replaceable alloy derailleur hanger.

Gaffel eller ev. stötdämpare fram

Custom SR Suntour XCR-AIR 650b, custom Multi-Circuit Damping, air spring, S: 80mm travel, M/L/XL: 100mm travel, integrated remote hydraulic lockout, rebound adjust, preload adjust, tapered alloy steerer, mag lowers, Hi-Ten 32mm stanchions, disc mount.

Styrlager

1-1/8" upper/lower, ZeroStack 44, steel cups, loose ball bearings.

Styrstolpe eller ev. styrstam

Specialized Stout, 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware.

Styre

Specialized Stout, double-butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm.

Handtag

Specialized Body Geometry XC Contour, Kraton w/ gel, lock-on, closed end.

Bromsar fram

Tektro Gemini, hydraulic disc, resin pads, I-spec compatible.

Bromsar bak

Tektro Gemini, hydraulic disc, resin pads, I-spec compatible.

Bromshandtag

Tektro Gemini, hydraulic, reach adjust, I-spec compatible.

Växelförare fram

SRAM X5, 2x10, high mount.

Växelförare bak

Shimano Deore Shadow, 10-speed.

Växelreglage

Shimano Deore RapidFire Plus, 10-speed, I-spec.

Kassett eller ev. drev bak

Sunrace, 10-speed, 11-36t.

Kedja

KMC X10, 10-speed, w/ reusable MissingLink.

Vevparti

Specialized Stout XC, 2x10, 2 pc., 24mm spindle, 36/22T, anti-corrosion hardware.

Vevlager

Samox, 24mm BSA for 2 pc. design, 73mm.

Pedaler

Alloy, 1 pc. body, 9/16", w/ reflectors.

Fälgar

Specialized Stout XC 650b, disc, alloy, double-wall, pin joint, 26mm inner width, 32h.

Nav fram

Specialized Stout XC, Hi Lo disc, alloy, RCC bearing system, QR, 28h.

Nav bak

Specialized Stout XC, Hi Lo disc, alloy, RCC bearing system, QR, 32h.

Ekrar

Stainless, 14g, black.

Däck fram

Specialized Ground Control Sport, 60TPI, wire bead, 650bx2.1".

Däck bak

Specialized Ground Control Sport, 60TPI, wire bead, 650bx2.1".

Innerslang

Standard, Presta valve.

Sadel

Body Geometry mountain, thick padding, steel rails, 143mm.

Sadelstolpe

Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, anti-corrosion hardware.

Sadelstolpsklämma

Alloy, nylon/glass fiber washer, QR, 34.9mm.

Ramgeometri

Frame size

XS S M L XL.

Stack

580mm 580mm 580mm 580mm 599mm.

Reach

370mm 391mm 410mm 429mm 449mm.

Head tube length

100mm 100mm 100mm 100mm 120mm.

Head tube angle

70.5° 70.5° 70.5° 70.5° 70.5°.

Bottom bracket height

301mm 301mm 301mm 301mm 301mm.

Bottom bracket drop

48mm 48mm 48mm 48mm 48mm.

Trail

79mm 79mm 79mm 79mm 79mm.

Fork length full

475mm 475mm 475mm 475mm 475mm.

Fork rake offset

42mm 42mm 42mm 42mm 42mm.

Front to center

605mm 626mm 645mm 664mm 690mm.

Chain stay length

425mm 425mm 425mm 425mm 425mm.

Wheel base

1025mm 1046mm 1065mm 1084mm 1110mm.

Seat tube length horizontal

536mm 557mm 587mm 606mm 632mm.

Standover height

694mm 733mm 780mm 792mm 835mm.

Seat tube length

330mm 394mm 444mm 460mm 510mm.

Seat tube angle

74° 74° 73° 73° 73°.

Handlebar width

700mm 700mm 720mm 720mm 720mm.

Stem length

60mm 60mm 70mm 80mm 90mm.

Crank length

170mm 170mm 175mm 175mm 175mm.

Seatpost length

300mm 350mm 350mm 400mm 400mm.
