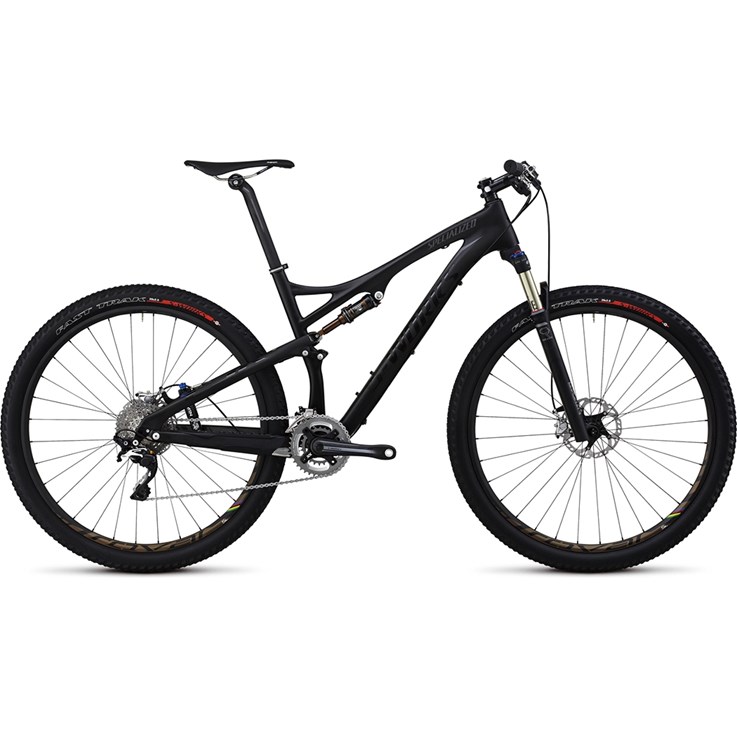

Specialized S-Works Epic FSR Kolfiber 29 XTR Materialfärg/Svart

Cykelbeskrivning

The full-suspension, carbon fiber, S-Works Epic 29 is the first 29er to win a World Cup event, and the bike Mountain Bike Action magazine describes as the "best bike we've ever ridden". One of two S-Works versions, this model is equipped with Shimano's XTR component group.

>Super-light FACT IS 11m full carbon frame with dedicated 29er geometry, PF30 BB, sealed cartridge bearing pivots and 142mm dropouts delivers the all-around best performing 100mm-travel Competitive XC bike.
>Specialized/FOX remote Mini-Brain inertia-valve shock with AUTOSAG, Kashima coating and new 2013 tune to seamlessly transition from efficient pedaling on smooth terrain to fully active on rough terrain.
>Custom RockShox SID World Cup 29 fork with Specialized Brain inertia-valve damping has 100mm of air-sprung travel and a carbon steerer tube to create the most efficient and supple cross-country fork available.
>Roval Control SL 29 142+ wheelset with carbon rims, OS28 end caps, 142+ spacing, and DT Swiss spokes and internals is insanely stiff, light and durable for greater control and quickness.
>S-Works Fast Trak 2.0", 2Bliss ready front tire features dual-compound rubber delivering exceptional speed and traction, while minimizing rotating weight.
>Specialized FACT OSBB, PF30, carbon crankset with 38/24 chainrings, is paired with a SRAM spider and rings for ultimate power transfer.
>All-new Sip Grip, a lock-on, Aramid infused, half-waffle MTB grip boosts durability, comfort and control.
>Shimano XTR brakes are lighter and more powerful than ever; staying cooler and more consistent with the help of Ice Tech rotors and Ti-metal pads.
>Shimano XTR Shadow Plus mid-cage, 10-speed rear derailleur is tough, lightweight, and delivers pinpoint shifts.
>Shimano XTR 10-speed shifters feature i-spec for direct attachment to brake lever.
>The ultra-lightweight Shimano XTR cassette features the 11-36 gear range for all trail conditions.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

FACT 11m carbon front triangle, 29" geometry, FACT IS construction, gussetless TT (S/M), FACT carbon seatstays w/carbon non-drive DO and chainstays, tapered HT, carbon PF30 BB, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm

Stötdämpare bak

FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve, Brain Fade adjust, 187x47mm

Gaffel eller ev. stötdämpare fram

Custom RockShox SID World Cup 29 Brain, inertia valve damper, Solo air spring, tapered carbon crown/steerer, top-mount Brain Fade and rebound adj., QR, 100mm travel

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Syntace F109, 6-degree rise, 31.8mm clamp

Styre

S-Works XC Carbon flat bar, uni-directional carbon, 680mm wide, 8-degree backsweep, 31.8mm

Handtag

Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness

Bromsar fram

Shimano XTR hydraulic disc, post mount, Ti/metal pad, Ice Tech, 160mm rotor

Bromsar bak

Shimano XTR hydraulic disc, post mount, Ti/metal pad, Ice Tech, 160mm rotor

Bromshandtag

Shimano XTR 985 hydraulic, w/I-Spec clamps

Växelförare fram

Shimano XTR M985, E-type for DMD, top-swing, dual-pull

Växelförare bak

Shimano Shadow Plus XTR, 10-speed, GS mid-cage

Växelreglage

Shimano XTR, 10-speed, w/ I-Spec clamps

Kassett eller ev. drev bak

Shimano XTR M980, 10-speed, 11-36

Kedja

Shimano XTR 980

Vevparti

S-Works OS carbon, 10-speed XC double, custom SRAM spider/rings S: 170mm, Others: 175mm

Vevparti utväxling

Vevlager

SRAM PF30, OS press-in bearing, sealed cartridge

Pedaler

Resin Test Ride Pedals with toe clips, CEN std.

Fälgar

Roval Control SL 29, carbon disc, 28mm wide, 32h

Nav fram

Roval Control SL 29, carbon/alloy OS 28 end caps, QR, 32h

Nav bak

Roval Control SL 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 32h

Ekrar

DT Swiss Revolution 2.0/1.5/2.0mm stainless, DT Aerolite, bladed, painted

Däck fram

S-Works Fast Trak, 2Bliss Ready, 120 TPI, aramid bead, 29x2.0"

Däck bak

S-Works Fast Trak, 2Bliss Ready, 120 TPI, aramid bead, 29x2.0"

Innerslang

Ultralight presta

Sadel

Body Geometry Phenom Expert, hollow TI rails, 143mm

Sadelstolpe

Specialized carbon, one bolt, 30.9mm, 400mm height

Sadelstolpsklämma

Specialized 7050 hard anodized alloy, 36.9mm, single bolt NOTESProtective clear coat, derailleur hanger, owners manual

Ramgeometri

Frame size

SM MED LG XL.

Seat tube length center to top

394mm 424mm 463mm 520mm.

Top tube length horizontal

554mm 589mm 615mm 641mm.

Top tube length actual

527mm 559mm 584mm 607mm.

Chainstay length

448mm 448mm 448mm 448mm.

Bottom bracket height low setting

331mm 331mm 331mm 331mm.

Seat tube angle actual low setting

69.5° 69.5° 70° 70°.

Seat tube angle effective low setting

74° 74° 74° 74°.

Head tube angle low setting

70.5° 70.5° 70.5° 70.5°.

Wheel base

1075mm 1109mm 1136mm 1163mm.

Standover height

755mm 766mm 775mm 790mm.

Head tube height

90mm 110mm 120mm 140mm.

Handlebar width

680mm 680mm 680mm 680mm.

Stem length

75mm 90mm 105mm 105mm.

Crank length

170mm 175mm 175mm 175mm.

Seatpost length

400mm 400mm 400mm 400mm.

Stack

586mm 605mm 614mm 633mm.

Reach

386mm 415mm 438mm 458mm.

Ground to top

917mm 936mm 945mm 964mm.
