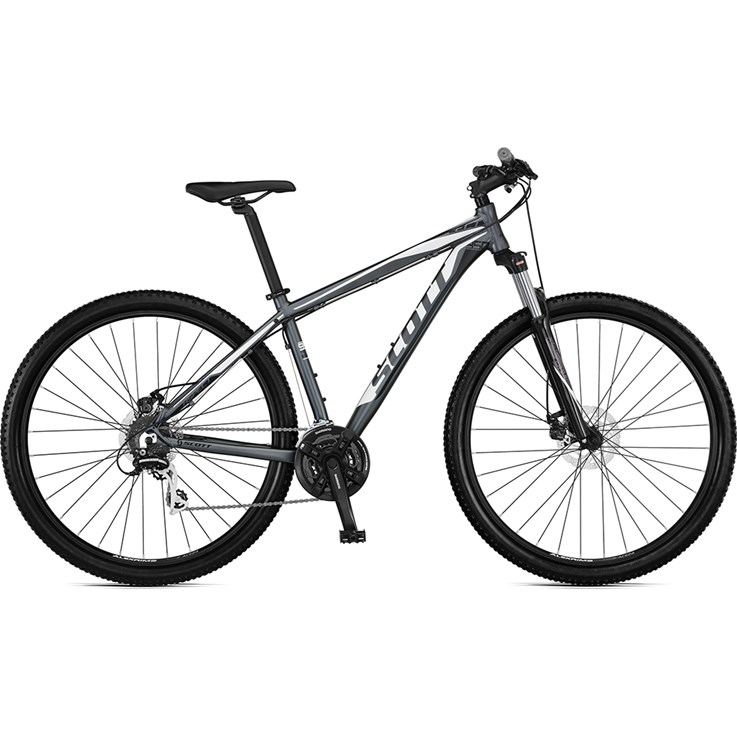

Scott Aspect 950

Budget minded mountain bike great for casual and entry level riders

Specifikationsnyheter
Shimano mech. disc brake

Cykelspecifikationer
Ram Aspect 29 Alloy 6061 D.B., Performance geometry, Integrated headtube
Gaffel eller ev. stötdämpare fram Suntour XCT-29-MLO, with Lockout, 100mm travel
Styrlager Ritchey Logic OE integ.
Växelförare bak Shimano Acera RD-M360, 24 Speed
Växelförare fram Shimano FD-M190, 31.8mm
Växelhandtag Shimano, ST-EF 51 L / 8R, EZ-fire plus
Bromshandtag -
Bromsar Shimano BR-M375L, Mech. Disc, 160F/160R mm Rotor
Vevparti Shimano, FC-M171, 42x34x24 T
Vevlager Shimano BB-UN 26, Cartridge Type
Styre Aspect OS, 660mm, black, 31,8mm, 15mm rise 8°
Styrstam HL TDS-D345A-8
Pedaler Wellgo, C 127 S
Sadelstolpe Alloy, 31.6mm
Sadel Aspect SCT19
Nav fram Formula CL51
Nav bak Shimano FH-RM 35-CL
Kedja KMC Z-7
Kassett eller ev. drev bak Shimano CS-HG31-8l, 11-32T
Ekrar 14 G, stainless, black
Fälgar Alex ACE 24, 32H, black
Däck Impac Ridgepac, 29 x 2.1
Vikt 14.6 kg / 31.16 lbs

Ramgeometri
S M L XL
Head tube angle 69.5° 69.5° 69.5° 69.5°
Head tube length 105 mm 4.1 in 115 mm 4.5 in 125 mm 4.9 in 140 mm 5.5 in
Top tube horizontal 575 mm 22.6 in 585 mm 23.0 in 605 mm 23.8 in 625 mm 24.6 in
Seat tube angle 72.5° 72.5° 72.5° 72.5°
Bottom bracket center to top of seattube 395 mm 15.6 in 440 mm 17.3 in 480 mm 18.9 in 530 mm 20.9 in
Bottom bracket center to toptube center 340 mm 13.4 in 385 mm 15.2 in 425 mm 16.7 in 475 mm 18.7 in
Chainstay length 450 mm 17.7 in 450 mm 17.7 in 450 mm 17.7 in 450 mm 17.7 in
Bottom bracket offset -60 mm -2.4 in -60 mm -2.4 in -60 mm -2.4 in -60 mm -2.4 in
Standover height 786 mm 30.9 in 817 mm 32.2 in 842 mm 33.1 in 875 mm 34.4 in
Wheel base 1084 mm 42.7 in 1094 mm 43.1 in 1115 mm 43.9 in 1136 mm 44.7 in
Reach 381 mm 15.0 in 388 mm 15.3 in 405 mm 15.9 in 420 mm 16.5 in
Stack 616 mm 24.3 in 626 mm 24.6 in 635 mm 25.0 in 649 mm 25.6 in
Stem length 75 mm 90 mm 90 mm 100 mm
