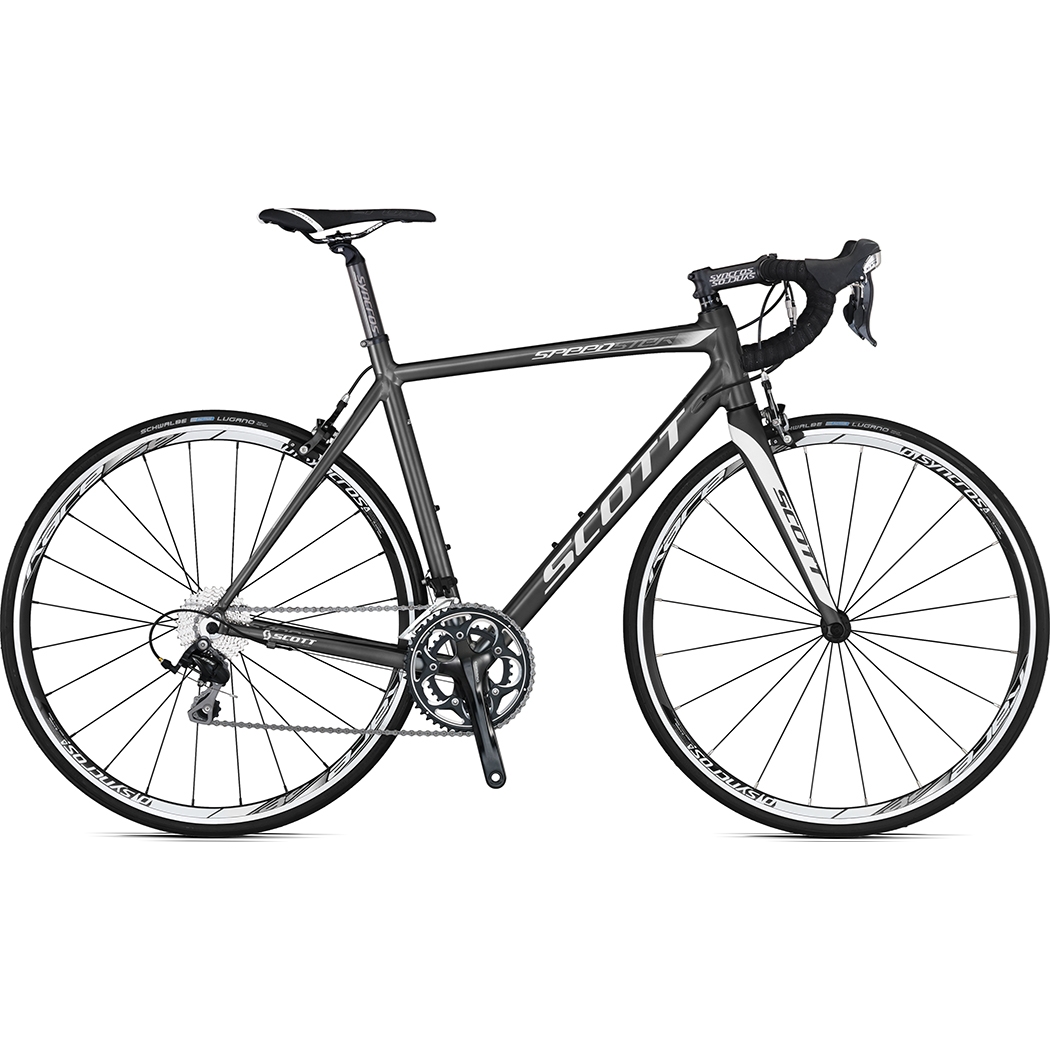

Scott Speedster 20 CD20 (Compact Double 20 Växlar)

AERO Hydroformed Super light Alloy Frame with SCO TT Aero Carbon Fork, Internal Cable routing

Specifikationsnyheter
Speedster Aero Frame and Fork, Shimano 105 Black, Syncros Handlbar, Stem, Seatpost, Saddle

Cykelspecifikationer
Ram D.Butted 6061 Alloy Tubing , Road geometry , Integrated Headtube
Gaffel eller ev. stötdämpare fram Speedster , Carbon/Alloy, 1 1/8 " Alloy steerer
Styrlager Integrated Cartridge
Växelförare bak Shimano 105 Black, RD-5701A/SS 20 Speed
Växelförare fram Shimano 105 FD-5700 Black
Växelhandtag Shimano 105 ST-5700 Black, Dual control 20 Speed
Bromshandtag -
Bromsar Shimano BR-R561 Black, Super SLR Dual pivot
Vevparti Shimano 105 Compact Black, FC-5750 Hollowtech II 50 x 34
Vevlager Shimano 105 BB - 5700
Styre Syncros RR2.0 , Anatomic 31.8 mm
Styrstam JD ST57 Alloy, 1-1/8" / four Bolt 31.8 mm
Pedaler nil
Sadelstolpe Syncros R1.4 Carbon/AL 31.6
Sadel SYNCROS RR2.5
Nav fram Formula Team 20 H,
Nav bak Formula Team 24 H
Kedja Shimano TIAGRA CN-4600
Kassett eller ev. drev bak Shimano TIAGRA CS-4600, 10 Speed 12-30 T
Ekrar CN - Standard, Black 2 mm
Fälgar Syncros Race 28 Aero Profile, 20 Front / 24 Rear
Däck Schwalbe, Lugano 700 x 23 C
Vikt 9.24 kg / 20.37 lbs

Ramgeometri
XXS/47 XS/49 S/52 M/54 L/56 XL/58 XXL/61
Head tube angle 70.5° 71.0° 73.0° 73.0° 73.0° 73.0° 73.0°
Head tube length 111 mm 4.4 in 116 mm 4.6 in 136 mm 5.4 in 156 mm 6.1 in 176 mm 6.9 in 196 mm 7.7 in 216 mm 8.5 in
Top tube horizontal 505 mm 19.9 in 515 mm 20.3 in 530 mm 20.9 in 545 mm 21.5 in 560 mm 22.0 in 575 mm 22.6 in 595 mm 23.4 in
Seat tube angle 75.0° 75.0° 74.5° 74.0° 73.5° 73.3° 73.3°
Bottom bracket center to top of seattube 470 mm 18.5 in 490 mm 19.3 in 520 mm 20.5 in 540 mm 21.3 in 560 mm 22.0 in 580 mm 22.8 in 610 mm 24.0 in
Bottom bracket center to toptube center 410 mm 16.1 in 430 mm 16.9 in 460 mm 18.1 in 480 mm 18.9 in 500 mm 19.7 in 520 mm 20.5 in 550 mm 21.7 in
Chainstay length 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in
Bottom bracket offset -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in
Standover height 722 mm 28.4 in 736 mm 29.0 in 763 mm 30.0 in 782 mm 30.8 in 802 mm 31.6 in 820 mm 32.3 in 845 mm 33.3 in
Wheel base 973 mm 38.3 in 979 mm 38.5 in 971 mm 38.2 in 982 mm 38.7 in 992 mm 39.1 in 1004 mm 39.5 in 1025 mm 40.4 in
Stem length 90 mm 100 mm 100 mm 110 mm 110 mm 120 mm 120 mm
