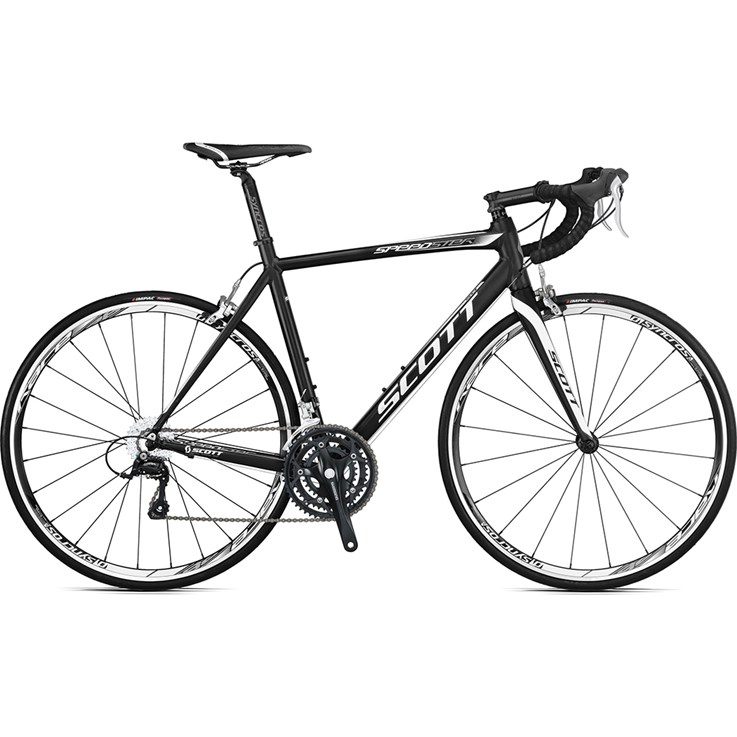

Scott Speedster 50 24 (Triple 24 Växlar)

AERO Hydroformed Super light Alloy Frame with SCO TT Aero Carbon Fork, Internal Brake Cable

Specifikationsnyheter
Speedster Aero Frame and Fork, Syncros Handlbar, Stem, Seatpost, Saddle

Cykelspecifikationer
Ram D.Butted 6061 Alloy Tubing , Road geometry , Integrated Headtube
Gaffel eller ev. stötdämpare fram Speedster , Carbon/Alloy, 1 1/8 " Alloy steerer
Styrlager Integrated Steel Cup
Växelförare bak Shimano Sora NEW, RD-3500 24 Speed
Växelförare fram Shimano FD 2303
Växelhandtag Shimano ST-2300, Dual control 24 Speed
Bromshandtag -
Bromsar Scott Comp SCBR 312 (Tektro), 39-49 mm
Vevparti Shimano 2303, 30/42/52 T
Vevlager Shimano Square BB UN26
Styre Syncros RR2.0 , Anatomic 31.8 mm
Styrstam JD ST57 Alloy, 1-1/8" / four Bolt 31.8 mm
Pedaler nil
Sadelstolpe Syncros RR2.5 31.6/300
Sadel SYNCROS RR3.0
Nav fram Formula Comp 20H
Nav bak Formula Comp 24 H
Kedja Shimano HG 50 KMC
Kassett eller ev. drev bak SRAM PG - 830 , 8 Speed 11-28T
Ekrar CN - Standard, Black 2 mm
Fälgar Syncros Race 28 Aero Profile, 20 Front / 24 Rear
Däck Schwalbe, Racepac 700 x 23 C
Vikt 10.15 kg / 22.38 lbs

Ramgeometri
XXS/47 XS/49 S/52 M/54 L/56 XL/58 XXL/61
Head tube angle 70.5° 71.0° 73.0° 73.0° 73.0° 73.0° 73.0°
Head tube length 111 mm 4.4 in 116 mm 4.6 in 136 mm 5.4 in 156 mm 6.1 in 176 mm 6.9 in 196 mm 7.7 in 216 mm 8.5 in
Top tube horizontal 505 mm 19.9 in 515 mm 20.3 in 530 mm 20.9 in 545 mm 21.5 in 560 mm 22.0 in 575 mm 22.6 in 595 mm 23.4 in
Seat tube angle 75.0° 75.0° 74.5° 74.0° 73.5° 73.3° 73.3°
Bottom bracket center to top of seattube 470 mm 18.5 in 490 mm 19.3 in 520 mm 20.5 in 540 mm 21.3 in 560 mm 22.0 in 580 mm 22.8 in 610 mm 24.0 in
Bottom bracket center to toptube center 410 mm 16.1 in 430 mm 16.9 in 460 mm 18.1 in 480 mm 18.9 in 500 mm 19.7 in 520 mm 20.5 in 550 mm 21.7 in
Chainstay length 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in
Bottom bracket offset -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in
Standover height 722 mm 28.4 in 736 mm 29.0 in 763 mm 30.0 in 782 mm 30.8 in 802 mm 31.6 in 820 mm 32.3 in 845 mm 33.3 in
Wheel base 973 mm 38.3 in 979 mm 38.5 in 971 mm 38.2 in 982 mm 38.7 in 992 mm 39.1 in 1004 mm 39.5 in 1025 mm 40.4 in
Stem length 90 mm 100 mm 100 mm 110 mm 110 mm 120 mm 120 mm
