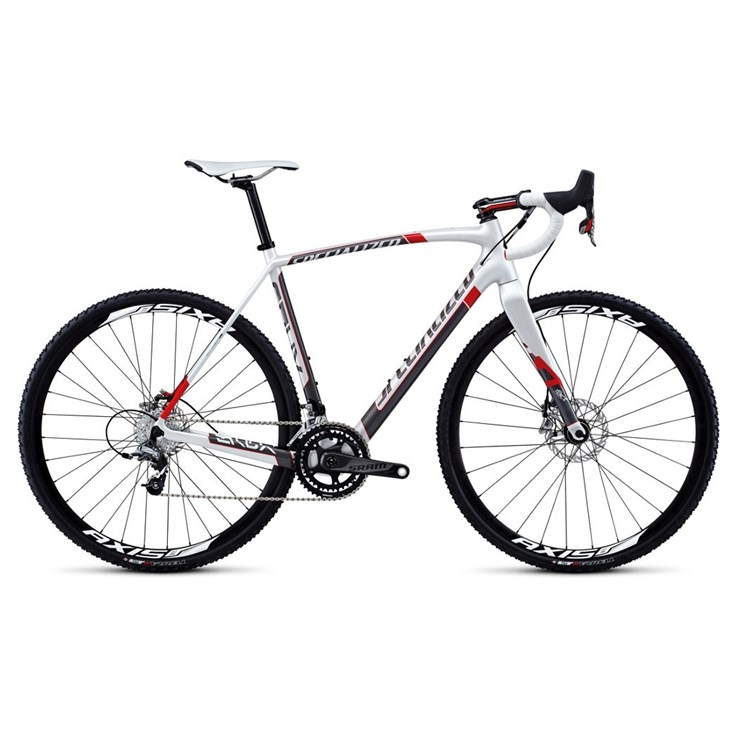

Specialized Crux Expert Carbon Disc Red Pearlvit/Askgrå/Röd

Cykelbeskrivning

The CruX is a 'cross beast, with race-optimized geometry, tapered headtube, internal cable routing, and an outstanding stiffness-to-weight ratio to power through the nastiest courses. Axis 2.0 wheels and SRAM RED 22 drivetrain with integrated hydraulic disc brakes complete the uber-tough, race-ready Expert package.

>Specialized FACT 10r carbon disc frame with 'cross-specific geometry and race features, such as tapered headtube and OSBB for greater stiffness, acceleration, efficiency and handling on any race course; paired with FACT carbon disc fork with tapered steerer.
>Specialized Terra Pro 2Bliss Ready tire has a sharp-edged tread that clears well for wet and muddy courses.
>SRAM carbon BB30 crankset with 'cross-specific gearing for excellent power transfer and precision shifting.
>All-new, hydraulic SRAM RED 22 disc brakes offer the lightest disc setup possible with perfect modulation and stopping power, while DoubleTap shifters provide simple, intuitive shifting and reach adjustment for perfect fit.
>Specialized Body Geometry Phenom Comp saddle with hollow Cr-Mo rails enables riders to develop a position ideal for CX racing, while providing increased durability with scuff guards.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

Specialized FACT 10r carbon, disc-specific, 1-3/8" lower bearing, OSBB

SWAT (Storage, water, air and tools)

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

Specialized FACT carbon, disc-specific monocoque fork, carbon steerer and crown for 1-3/8" lower bearing

Styrlager

1-1/8" upper and 1-3/8" lower integrated stainless cartridge bearings, 8mm cone spacer, w/ 20mm of spacers

Styrstolpe eller ev. styrstam

Specialized Expert Pro-Set, 3D forged aluminum, 4-position adjustable, 4-bolt, 31.8mm clamp

Styre

Specialized CX Comp Shallow Bend, 6061 alloy, 125mm drop, 70mm reach

Styrlinda

Specialized S-Wrap HD

Bromsar fram

SRAM RED, hydraulic disc, 160mm 6-bolt rotor

Bromsar bak

SRAM RED, hydraulic disc, 140mm 6-bolt rotor

Bromshandtag

Växelförare fram

SRAM Force 22, braze-on, 11-speed, YAW compatible

Växelförare bak

SRAM Force 22, 11-speed

Växelreglage

SRAM RED 22, DoubleTap, 11-speed, integrated hydraulic brake system

Kassett eller ev. drev bak

SRAM PG 1170, 11-speed, 11-28

Kedja

SRAM PC 1170 w/ PowerLock

Vevparti

SRAM S-952, carbon, BB30

Vevparti utväxling

SRAM RED 22, 46/36, YAW compatible

Vevlager

OS integrated, sealed bearings

Pedaler

Nylon flat test ride, loose ball, w/ reflectors

Hjul fram

AXIS 2.0 Disc

Hjul bak

AXIS 2.0 Disc

Fälgar

Nav fram

Nav bak

Ekrar

Däck fram

Specialized Terra Pro, 2Bliss Ready, 120TPI, foldable aramid bead, 700x33c

Däck bak

Specialized Terra Pro, 2Bliss Ready, 120TPI, foldable aramid bead, 700x33c

Innerslang

Standard, presta valve

Sadel

Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Specialized Sport, alloy, 27.2mm

Sadelstolpsklämma

Forged alloy, 32.6mm

Utrustning

Övrigt

Ramgeometri

Frame size

460.0 490.0 520.0 540.0 560.0 580.0 610.0.

Bottom bracket drop

71mm 71mm 71mm 69mm 69mm 67mm 67mm.

Chain stay length

425mm 425mm 425mm 425mm 425mm 425mm 425mm.

Crank length

170mm 170mm 170mm 172.5mm 172.5mm 175mm 175mm.

Fork rake

51mm 51mm 51mm 49mm 49mm 49mm 49mm.

Front to center

593mm 593mm 595mm 601mm 606mm 609mm 615mm.

Handle bar width

400mm 400mm 420mm 420mm 420mm 440mm 440mm.

Head tube angle

69.5° 70.5° 71.5° 71.5° 72° 72.5° 73°.

Head tube length

100mm 115mm 125mm 140mm 155mm 170mm 190mm.

Reach

366mm 369mm 375mm 378mm 384mm 387mm 392mm.

Seat post length

300mm 300mm 300mm 350mm 350mm 350mm 350mm.

Seat tube angle

75.5° 75.5° 74° 73.5° 73.25° 73° 72.5°.

Seat tube length bottom bracket center to top

470mm 490mm 510mm 530mm 550mm 570mm 600mm.

Stack

522mm 541mm 554mm 567mm 583mm 597mm 618mm.

Stand over height

725mm 754mm 773mm 790mm 807mm 825mm 849mm.

Stem length

75mm 75mm 90mm 100mm 100mm 110mm 110mm.

Top tube length horizontal

501mm 513mm 537mm 549mm 560mm 570mm 587mm.

Trail

75mm 69mm 62mm 64mm 61mm 58mm 55mm.

Wheel base

1008mm 1007mm 1009mm 1016mm 1022mm 1025mm 1031mm.
