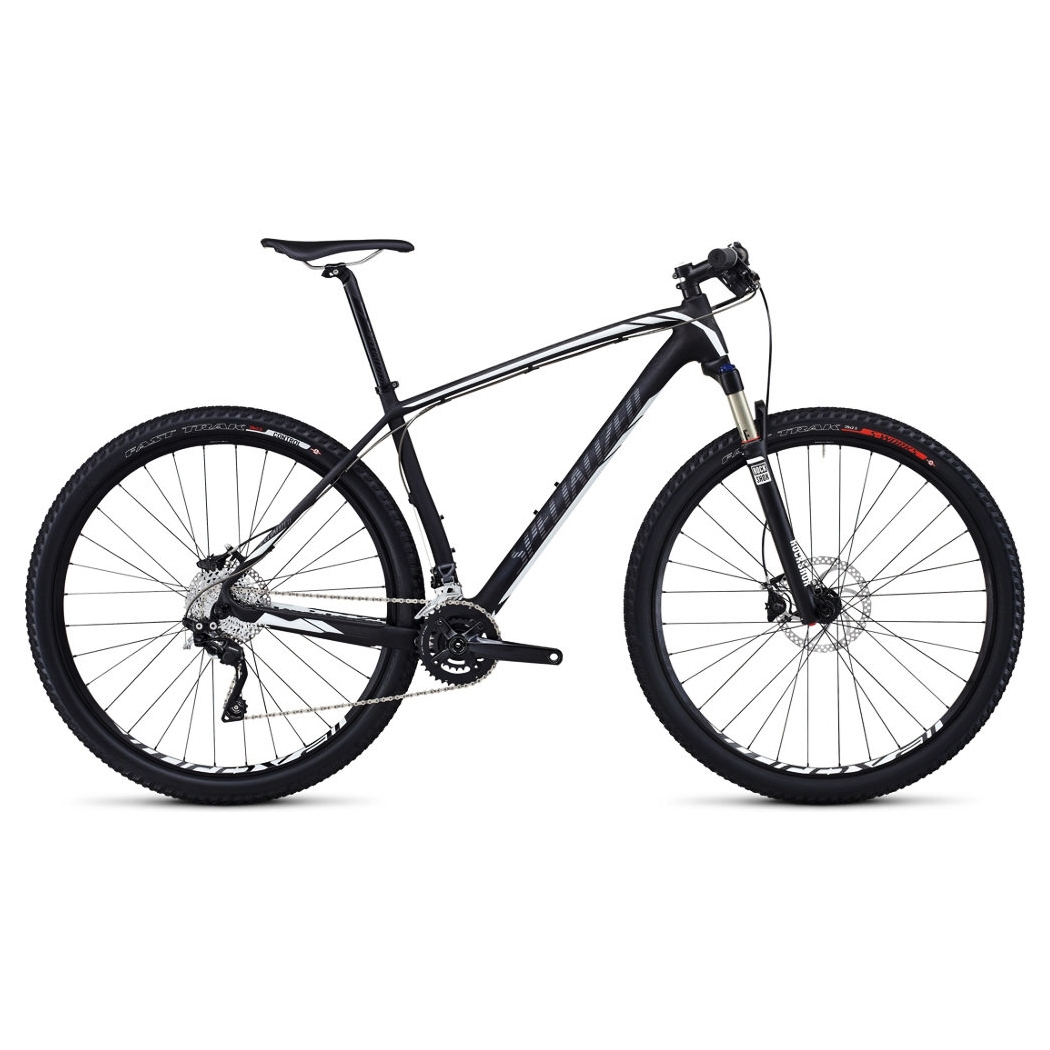

Specialized Stumpjumper Hardtail Comp Carbon 29 Materialfärg/Askgrå/Vit

Cykelbeskrivning

With an 80mm-travel RockShox Reba RL 29 fork, 2x10 drivetrain and a carbon frame the Stumpjumper Comp Carbon 29 is a lightweight cross-country machine with podium finishes in sight.

>FACT IS 8m carbon HT frame with 29er geometry is engineered with a tapered head tube, hollow carbon dropouts, PF30 BB and PM 140 rear brake for a stiff, responsive and race-ready design.
>RockShox Reba RL 29 fork with 90mm travel, Solo Air spring and rebound adjust, and a 15mm thru-axle provides premium XC suspension performance w/Lockout and compression adjust.
>Roval 29 rims, mated to Specialized Hi Lo hubs increase wheel stiffness for more confident riding.
>Custom SRAM S-1250 10-speed XC double crankset has 29er-specific gearing, large PF30 bearings, and alloy arms for smooth, efficient power transfer.
>Formula C1 hydraulic disc brakes provide consistent and reliable stopping power.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

FACT 8m carbon, 29" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, 135mm dropouts, replaceable alloy rear derailleur hanger

SWAT (Storage, water, air and tools)

Bottle cage w/ SWAT Technology compatible (not included)

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

RockShox Reba RL 29, Solo Air spring, alloy tapered steerer, lockout and reb adj., 15mm thru-axle, 15.5": 80mm Others: 90mm travel

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp

Styre

Specialized XC, flat bar, 2014 butted alloy, 700mm wide, 8-degree backsweep, 31.8mm

Handtag

Specialized Sip Grip, light lock-on, half-waffle aramid-infused, 15.5"/17.5": regular, 19"/21": XL thickness

Bromsar fram

Formula C1, alloy caliper, metallic pad, 15.5"/17.5": 160mm, 19"/21": 180mm rotor

Bromsar bak

Formula C1, alloy caliper, metallic pad, 160mm rotor

Bromshandtag

Formula C1, hydraulic disc, tooled reach adj.

Växelförare fram

SRAM X7, 10-speed, 34.9mm clamp, top pull

Växelförare bak

Shimano XT Shadow Plus, 10-speed, SGS long cage

Växelreglage

Shimano SLX, 10-speed, trigger

Kassett eller ev. drev bak

SRAM PG-1030, 10-speed, 11-36

Kedja

SRAM PC 1031, 10-speed, PowerLink

Vevparti

Custom SRAM S-1250, 7050 alloy arms, 10-speed XC double, PF30 spindle, S: 170mm, Others: 175mm

Vevparti utväxling

38/24

Vevlager

SRAM PF30, OS press-in bearings, sealed cartridge

Pedaler

Fälgar

Roval 29, alloy disc, 26mm wide, 32h

Nav fram

Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h

Nav bak

Specialized Hi Lo disc, double-sealed cartridge bearings, QR, 32h

Ekrar

DT Industry Stainless, 3X front/rear 2.0

Däck fram

S-Works Fast Trak, 2Bliss Ready, 29x2.0", foldable aramid bead, 120 TPI

Däck bak

Specialized Fast Trak Control, 2Bliss Ready, 29x2.0", foldable aramid bead, 60 TPI

Innerslang

Sadel

Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Specialized 2014 butted alloy, single bolt setback, 27.2mm, 15.5/17.5" 350mm, Others: 400mm

Sadelstolpsklämma

Specialized 7050 hard anodized alloy, single bolt, 32.6mm

Övrigt

Ramgeometri

Frame size

15.5 17.5 19 21.

Bottom bracket drop

63.5mm 63.5mm 63.5mm 63.5mm.

Bottom bracket height

304mm 304mm 304mm 304mm.

Chainstay length

435mm 435mm 435mm 435mm.

Crank length

170mm 175mm 175mm 175mm.

Ground to top

897mm 916mm 930mm 945mm.

Handlebar width

700mm 700mm 700mm 700mm.

Head tube angle

71.5° 71.5° 71.5° 71.5°.

Head tube height

90mm 100mm 115mm 130mm.

Reach

394mm 410.5mm 430mm 450mm.

Seat tube angle effective

73.5° 73.5° 73.5° 73.5°.

Seat tube length center to top

394mm 445mm 483mm 533mm.

Stack

594mm 612mm 627mm 641mm.

Standover height

760mm 810mm 830mm 870mm.

Stem length

75mm 90mm 105mm 105mm.

Top tube length actual

558mm 570mm 590mm 614mm.

Top tube length horizontal

570mm 592mm 615mm 640mm.

Wheel base

1049mm 1072mm 1106mm 1132mm.
