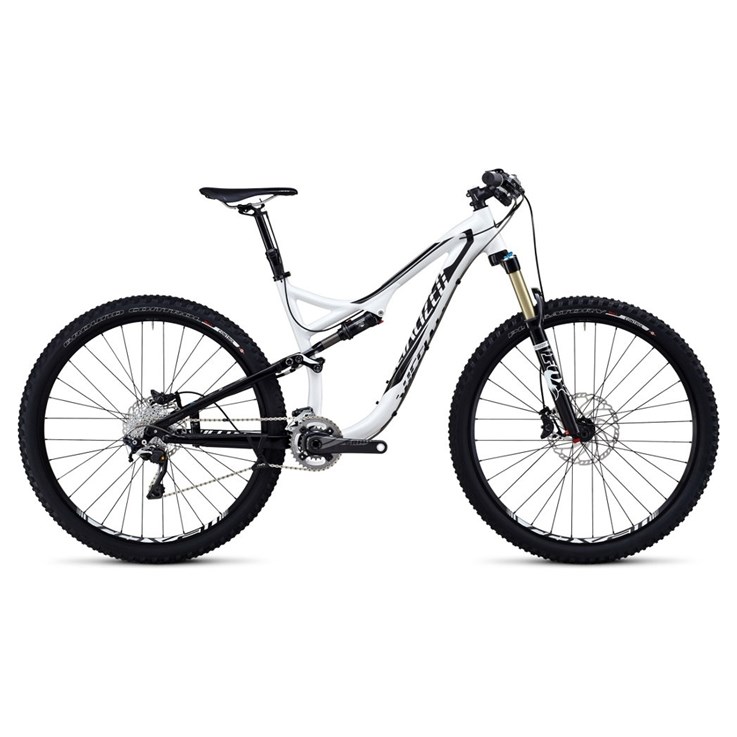

Specialized Stumpjumper FSR Elite 29 Vit/Svart

Cykelbeskrivning

The 130mm FACT carbon fiber frame with 29er Trail geometry, plus a Fox/Specialized remote Brain shock with AUTOSAG, Fox Float CTD Evolution 29 series fork, Shimano SLX disc brakes and a 142+ wheelset makes the Stumpjumper FSR Elite 29 one of the fiercest bikes on the trail.

>Hot, new asymmetrical graphic on the M5 alloy FSR frame with 29er geometry, 130mm of travel, full-cartridge bearing pivots, PF30 BB, Brain mount on seatstay, and 142mm dropouts makes it an amazingly stiff, light, and agile trail bike.
>FOX/Specialized Brain shock with ground-breaking AUTOSAG feature and micro-reservoir, Trail Tune inertia valve damping, Brain Fade, and adjustable rebound lets riders dial in the perfect combination of pedaling efficiency and bump compliance.
>FOX Float CTD Evolution 29 series has an adjustable air spring with 130mm of travel, rebound adjust and lockout, 15mm thru-axle and a tapered steerer tube for precise and plush performance.
>Roval 29 rims mated to Specialized Hi Lo hubs, with 142mm rear hub spacing and 12mm thru-axle, increase wheel stiffness for more confident riding.
>Shimano shifters matched to a custom SRAM S-2200 carbon Trail double crankset with 36/22 gearing is built for strong, lightweight performance.
>Specialized 720mm-wide, alloy XC Mini Riser handlebar ideal for 29er handling and riding position.
>Shimano SLX brakes and shifting; XTR rear derailleur for premium shifting performance.
>Specialized Command Post BlackLite uses a remote lever to adjust saddle height on-the-fly to maximize climbing and descending performance.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

M5 hydroformed tubing, 29" geometry, tapered headtube, PF30 BB, ISCG ’05, Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel

SWAT (Storage, water, air and tools)

Bottle cage w/ SWAT Technology compatible (not included)

Stötdämpare bak

FOX/Specialized remote Brain w/ AUTOSAG, smaller Brain reservoir, inertia valve w/ Trail Tune, BrainFade adjust, 195x48mm

Gaffel eller ev. stötdämpare fram

Fox Float 34 CTD Evolution 29, air spring, tapered steerer, Climb, Trail, Descend settings and reb adj., 15mm thru-axle, 130/105mm travel

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm clamp

Styre

Specialized XC Mini-Riser, 7050 butted alloy, 720mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm

Handtag

Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness

Bromsar fram

Shimano SLX, hydraulic disc, metallic pads, SM-RT66 6-bolt rotor, S/M: 180mm rotor; L/XL: 200mm rotor

Bromsar bak

Shimano SLX, hydraulic disc, metallic pads, SM-RT66 6-bolt rotor, S/M: 160mm rotor, L/XL: 180mm rotor

Bromshandtag

Shimano SLX

Växelförare fram

SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull

Växelförare bak

Shimano XTR Shadow Plus, 10-speed, SGS long cage

Växelreglage

Shimano SLX, 10-speed, trigger

Kassett eller ev. drev bak

SRAM PG-1050, 10-speed, 11-36

Kedja

SRAM PC 1051, 10-speed, PowerLink

Vevparti

Custom SRAM carbon S-2200, 10-speed Trail double, PF30 spindle, removable spider, S: 170mm, Others: 175mm

Vevparti utväxling

36/22

Vevlager

SRAM PF30, OS press-in bearings, sealed cartridge

Pedaler

Fälgar

Roval 29, alloy disc, 21mm internal width, 32h

Nav fram

Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h

Nav bak

Specialized Hi Lo disc, 4x-sealed cartridge bearings, 12mm thru-axle, 142mm spacing, 32h

Ekrar

DT Industry Stainless, 3X front/rear 2.0 PG

Däck fram

Specialized Purgatory Control, 2Bliss Ready, 29x2.3", foldable aramid bead, dual-compound, 60TPI

Däck bak

Specialized Ground Control, 2Bliss Ready, 29x2.3", foldable aramid bead, 60 TPI

Innerslang

Sadel

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Specialized Command Post BlackLite, 3-position, adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S: 100mm, Others: 125mm travel

Sadelstolpsklämma

Command Post, 7050 hard anodized alloy, single bolt, 34.9mm

Övrigt

Ramgeometri

Frame size

S M L XL XXL.

Bottom bracket drop

34mm 34mm 34mm 34mm 34mm.

Bottom bracket height

338mm 338mm 338mm 338mm 338mm.

Chainstay length

450mm 450mm 450mm 450mm 450mm.

Crank length

170mm 175mm 175mm 175mm 175mm.

Handlebar width

720mm 720mm 720mm 720mm 720mm.

Head tube angle

69° 69° 69° 69° 69°.

Head tube length

100mm 110mm 125mm 145mm 170mm.

Reach

397mm 423mm 445mm 466mm 479mm.

Seat tube angle

, Actual 69° 69.4° 69.8° 70.3° 70.6°.

Seat tube angle

, Effective 74.5° 74.5° 74.5° 74.5° 74.5°.

Seat tube length center to top

396mm 430mm 468mm 523mm 565mm.

Seatpost length

350mm 400mm 400mm 400mm 400mm.

Stack

614mm 624mm 638mm 656mm 680mm.

Standover height

750mm 741mm 750mm 764mm 779mm.

Stem length

60mm 75mm 90mm 90mm 105mm.

Top tube length

, Actual 579mm 606mm 632mm 660mm 684mm.

Top tube length

, Horizontal 567mm 596mm 622mm 648mm 668mm.

Wheel base

1118mm 1148mm 1175mm 1203mm 1226mm.
