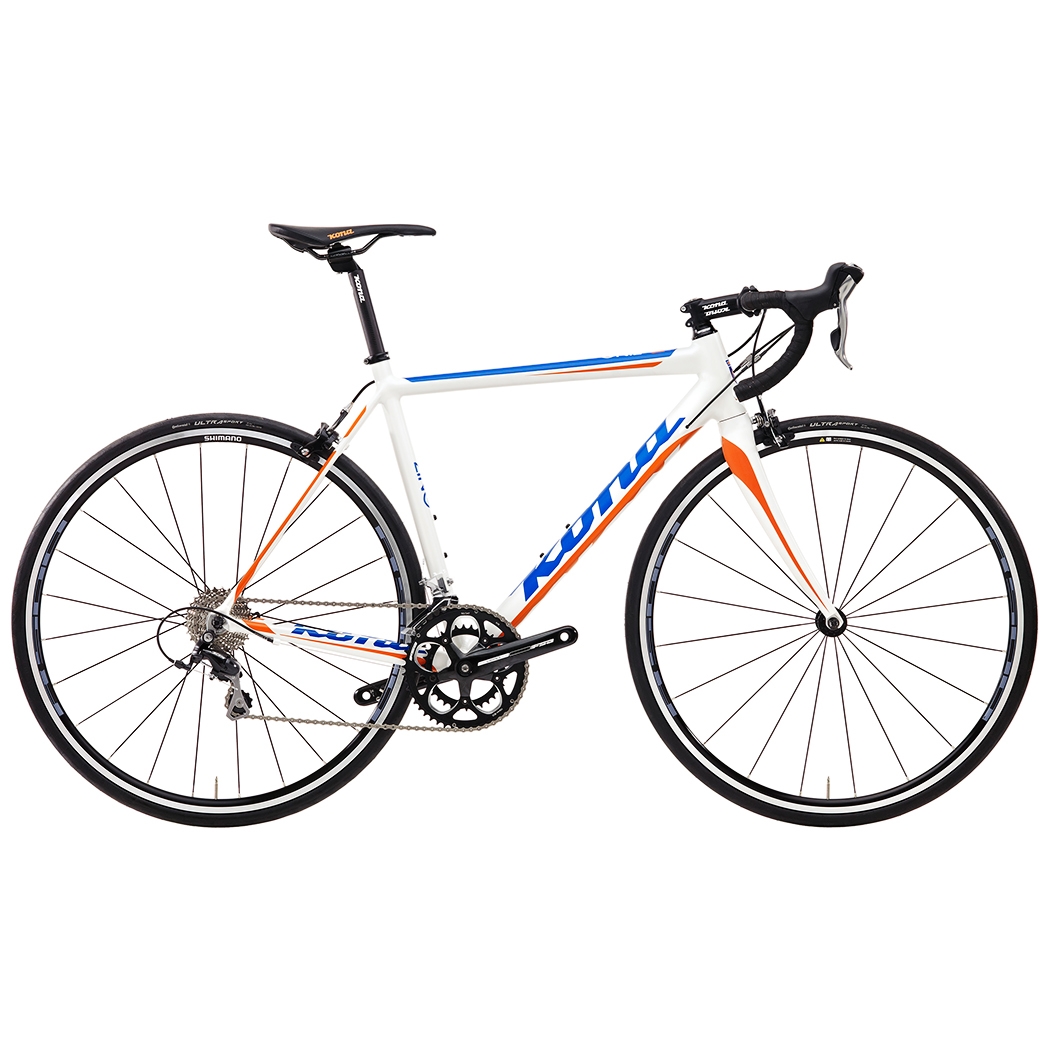

Kona Zing Matt White with Orange and Blue

New for 2014, the base model Zing incorporates all of the features, ride characteristics and design elements of our Kona Carbon Race models, but in a Kona Race Light 6061 Aluminum Butted frame. Designed specifically for budding road riders and budget-oriented racers who aren’t willing to jump into a carbon frameset, the bike features smooth welds at the head and seat tube and internal rear-brake and gear routing. The geometry is similar to our carbon Zing, making for a zippy ride that beautifully handles everything from training and club racing to GranFondo riding.

Vikt 9,19 Kg. (Avser storlek 17", 53 Cm eller M)
Ram Kona Race Light 6061 Aluminum Butted
Storlekar S(49), M(53), L(56), XL(59), XXL(61)
Stötdämpare bak n/a
Gaffel eller ev. stötdämpare fram Kona Carbon Race by Deda
Vevparti FSA Vero
Vevparti utväxling 34/50t
Vevlager FSA MegaExo
Pedaler n/a
Kedja KMC X10
Kassett eller ev. drev bak Shimano Tiagra 12-28t 10 spd
KedjaGUIDE n/a
Växelförare fram Shimano Tiagra
Bromsar bak Shimano 105
Växelreglage Shimano Tiagra
Bromsar Tektro R312
Bromsskiva fram n/a
Bromsskiva bak n/a
Bromshandtag Shimano Tiagra
Styrlager FSA No.44e
Styre Kona Road Compact
Styrstolpe eller ev. styrstam Kona Road
Sadelstolpe Kona Double Clamp w/offset
Sadelstolpsklämma Kona Clamp
Handtag Kona Cork Tape
Sadel Kona Road
Nav fram Shimano R501A Wheelset
Nav bak Shimano R501A Wheelset
Ekrar Shimano R501A Wheelset
Fälgar Shimano R501A Wheelset
Däck fram Continental UltraSport 700x25c
Däck bak Continental UltraSport 700x25c
Färg Matt White w/Orange & Blue
Övrigt n/a

Size 49 53 56 59 61
1 Reach 390 394 398 406 414
2 Stack 523 544 563 586 605
3 HT Angle 71.5 72 72 72.5 73
4 HT Length 120 140 160 180 200
5 ST Angle 74.5 74 73.5 73 72.5
6 ST Length 490 530 560 590 610
7 CS Length 407 407 410 410 413
8 BB Drop 72 72 72 72 72
9 Wheelbase 989 995 1009 1014 1031
10 Front Center 593 599 609 614 628
11 Fork Length 370 370 370 370 370
12 Fork Offset 45 45 45 45 45
13 TT Length 535 550 565 585 605
14 Standover 741 769 792 817 836
