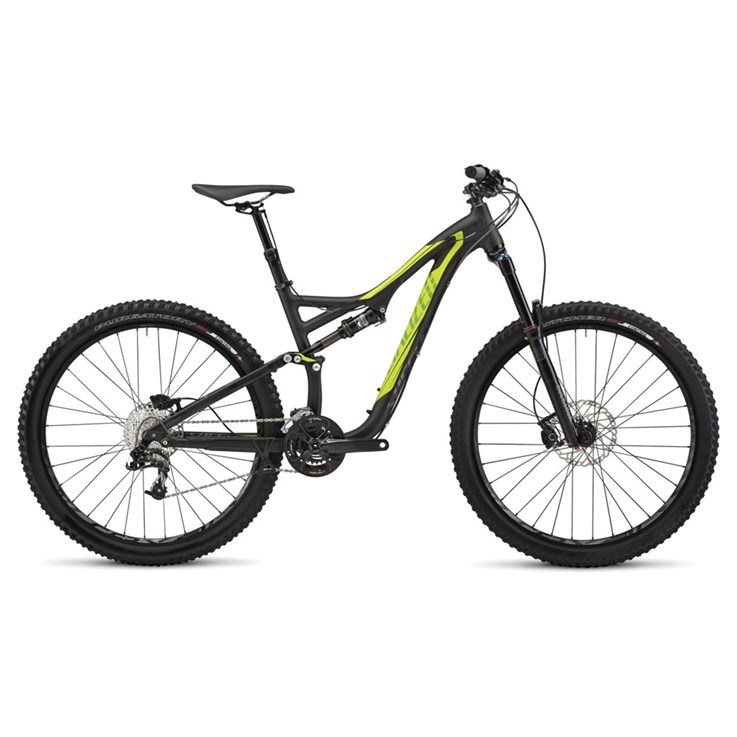

Specialized Stumpjumper FSR Comp EVO 650B Met Black/Hyper Grn/Moto Green

SEK
Klicka för din storlek.
  • S
  • M
  • L
  • XL
Leverans.
från 0 kr
Läs mer.
Lager.
Ej i lager*
Läs mer.
Tillverkare.
Artikelnummer.
93315-2502 (S)
Övriga art.nr.
93315-2503 (M)
93315-2504 (L)
93315-2505 (XL)

Cykelbeskrivning


The M5 aluminum Stumpjumper FSR Comp EVO is purpose-built for the aggressive trail rider. It separates itself from the "regular" Stumpjumpers with a slacker head angle and 150mm of front and rear travel. The Comp EVO features a custom FOX CTD Evolution rear shock with AUTOSAG, RockShox Revelation RC fork, and a 2.3" Specialized Butcher Control and Slaughter Control tire combination.

>M5 alloy EVO 650b frame w/ 150mm of smooth FSR travel for charging technical singletrack.
>Custom FOX Float CTD Evolution shock w/ AUTOSAG, Climb, Trail, Descend tunes for total control.
>RockShox Revelation RC 150mm fork w/ 15mm thru-axle ideal for ripping technical descents.
>Roval 650b rims mated to Specialized Hi Lo hubs for increased stiffness and confident riding.
>Specialized Butcher Control 2.3" tire features a DH-inspired tread for rough singletrack.
>Specialized Slaughter Control, 2Bliss Ready, 2.3" tire for fast-rolling performance with bite.
>Specialized All-Mountain alloy bar is 750mm wide for stable handling on rough terrain.
>Shimano Deore disc brakes for dialed modulation and stopping power.
>SRAM X9 Type 2, 10-speed rear derailleur for quiet, precise trail shifting.
>SRAM X7, 10-speed, trigger for precise shifting and reliability.
>Specialized Command Post BlackLite w/ remote adjusts saddle height on-the-fly.

Cykelspecifikationer


Vikt

Uppgift om vikt saknas.

Ram

M5 hydroformed tubing, EVO 650b geometry, tapered headtube, PF30 BB, ISCG ’05, Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel

Stötdämpare bak

Custom FOX Float CTD Evolution w/ AUTOSAG, Climb, Trail, Descend settings and rebound adj., 195x51mm

Gaffel eller ev. stötdämpare fram

Custom RockShox Revelation RC 650b, tapered alloy steerer, 3P damper w/ 3-position compression, rebound adj., 15mm thru-axle, 150mm travel

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise

Styre

Specialized All-Mountain, low-rise, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 31.8mm

Handtag

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL

Bromsar fram

Shimano Deore BR-M615, hydraulic disc, Ice Tech pads, S/M: 180mm rotor, Others: 200mm

Bromsar bak

Shimano Deore BR-M615, hydraulic disc, Ice Tech pads, S/M: 160mm rotor, Others: 180mm

Bromshandtag

Shimano Deore BL-M615, hydraulic lever

Växelförare fram

SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull

Växelförare bak

SRAM X9 Type 2, 10-speed, mid cage

Växelreglage

2014, new X7 10spd rear shifter, ball bearing design, zero loss mechanism

Kassett eller ev. drev bak

SRAM PG 1030, 10-speed, 11-36

Kedja

SRAM PC 1031, 10-speed, w/ PowerLink, nickel finish

Vevparti

Custom SRAM S-1250, 7050 alloy arms, 10-speed Trail double, PF30 spindle, 36/22

Vevparti utväxling

36/24

Vevlager

SRAM, PF30, OS press-in bearings, sealed cartridge

Pedaler

Resin test ride, w/ toe clips, CEN std.

Fälgar

Roval 650b, alloy disc, 24mm wide, 32h

Nav fram

Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h

Nav bak

Specialized Hi Lo disc, 4 sealed cartridge bearings, 12mm thru-axle, 32h

Ekrar

DT Swiss Industry, stainless

Däck fram

Specialized Butcher Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3"

Däck bak

Specialized Slaughter Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3"

Innerslang

Ultralight, presta valve

Sadel

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Command Post BlackLite, alien head design, single bolt head, w/ remote adjust lever, 30.9mm, S: 100mm travel, Others: 125mm

Sadelstolpsklämma

Command Post, single bolt, 34.9mm

Ramgeometri


Frame size

S M L XL.

Seat tube length center to top

396mm 430mm 468mm 523mm.

Top tube length horizontal

568mm 595mm 620mm 643mm.

Top tube length actual

530mm 555mm 579mm 603mm.

Chainstay length

435mm 435mm 435mm 435mm.

Bottom bracket height

327mm 327mm 327mm 327mm.

Seat tube angle actual

68.4° 68.8° 69.2° 69.7°.

Seat tube angle effective

74° 74° 74° 74°.

Head tube angle

68° 68° 68° 68°.

Wheel base

1107mm 1137mm 1165mm 1193mm.

Standover height

738mm 729mm 738mm 754mm.

Head tube height

100mm 110mm 135mm 155mm.

Handlebar width

750mm 750mm 750mm 750mm.

Stem length

60mm 60mm 75mm 75mm.

Crank length

170mm 175mm 175mm 175mm.

Seatpost length

380mm 430mm 430mm 430mm.

Stack

602mm 619mm 642mm 661mm.

Reach

401mm 426mm 445mm 467mm.
