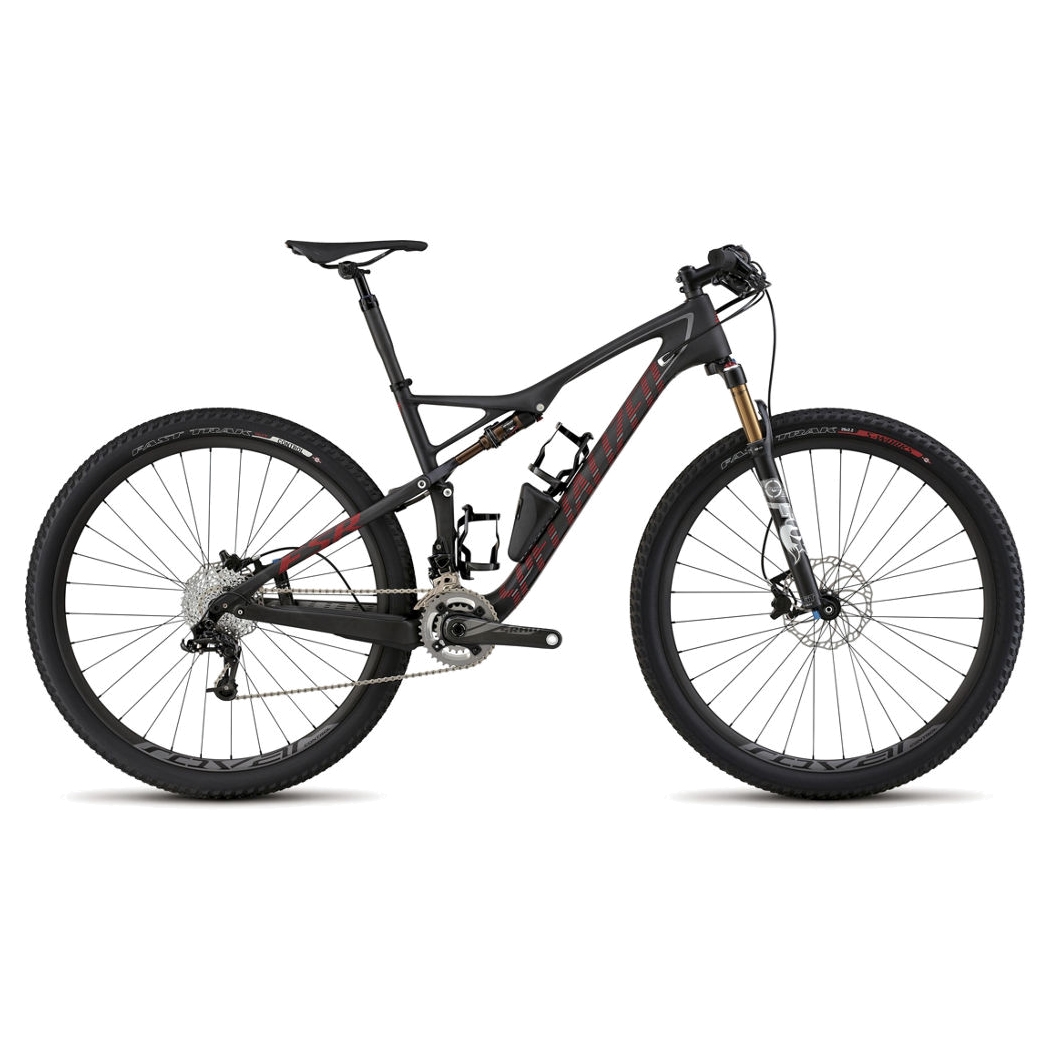

Specialized Epic FSR Marathon Carbon 29 Carbon/Red/Dream Silver

Cykelbeskrivning

With 29-inch wheels, carbon fiber frame, and Brain inertia valve damping technology in both the FOX/Specialized shock and custom 100mm-travel FOX Float 32 Terra Logic fork with Kashima coating, the Epic FSR Marathon Carbon has the speed to tame any cross-country terrain.

>FACT carbon, 100mm-travel, FSR frame w/ full SWAT kit for the ultimate XC race machine.
>Specialized/FOX Brain shock w/ AUTOSAG knows the difference between smooth and rough terrain.
>FOX Float 32 100mm-travel fork w/ Terra Logic damping and Kashima coating for XC terrain.
>Roval Control Carbon 29 carbon wheelset w/ Zero Bead Hook and 142+ spacing for greater control.
>Custom SRAM carbon PF30 crankset for stiff, yet lightweight pedaling performance.
>Reliable Magura MT6 hydraulic disc brakes w/ carbon master cylinder and reach adjust.
>SRAM X0 Type 2, 10-speed, mid-cage rear derailleur for lightweight, pinpoint shifts.
>SRAM X0 10-speed trigger for precise and quick shifts.
>Command Post XCP dropper post with carbon lower is engineered for XC racing.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

FACT 11m carbon, 29" geometry, FACT IS construction, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, 100mm travel

Stötdämpare bak

FOX/Specialized remote Mini-Brain w/ AUTOSAG, Kashima coating, inertia valve, BrainFade adjust, 205x53mm, 100mm travel

Gaffel eller ev. stötdämpare fram

Fox Float 32 Terra Logic, Kashima coating, tapered steerer, rebound adj., 15mm thru-axle, 100mm travel

Styrlager

1-1/8" and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized, forged alloy, 6-degree rise

Styre

Specialized flat, carbon, 8-degree backsweep, 31.8mm

Handtag

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL

Bromsar fram

Magura MT6, hydraulic disc, Hi Friction pad, carbon master cylinder, alloy caliper, Storm SL rotor, S/M: 160mm rotor, Others: 180mm

Bromsar bak

Magura MT6, hydraulic disc, Hi Friction pad, carbon master cylinder, alloy caliper, 160mm Storm SL rotor

Bromshandtag

Magura MT6, alloy lever

Växelförare fram

Custom SRAM X0, 10-speed, 2x10, high direct mount

Växelförare bak

SRAM X0 Type 2, 10-speed, mid cage

Växelreglage

SRAM X0, 10-speed, trigger

Kassett eller ev. drev bak

SRAM PG 1050, 10-speed, 11-36

Kedja

SRAM PC 1051, 10-speed, w/ PowerLink

Vevparti

Custom SRAM S-2200, carbon, PF30 spindle, 22/36

Vevlager

SRAM, PF30, OS press-in bearings, sealed cartridge

Pedaler

Resin test ride, w/ toe clips, CEN std.

Fälgar

Roval Control Carbon 29, carbon disc, hookless bead, 22mm internal width, 32h

Nav fram

Roval Control Carbon 29, 15mm thru-axle, 32h

Nav bak

Roval Control Carbon 29 142+, DT Swiss Star Ratchet, 12mm thru-axle, 32h

Ekrar

DT Swiss Revolution

Däck fram

S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.2"

Däck bak

Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0"

Innerslang

Ultralight, presta valve

Sadel

Body Geometry Phenom Expert, hollow Ti rails, 143mm

Sadelstolpe

Command Post XCP, carbon lower tube, 2-position height adjustable, internal routing, 35mm travel, 15mm offset, 27.2mm

Sadelstolpsklämma

Alloy, 31.8mm

Ramgeometri

Frame size

S M L XL.

Seat tube length center to top

400mm 434mm 470mm 520mm.

Top tube length

, Horizontal 564mm 593mm 620mm 647mm.

Top tube length

, Actual 529mm 557mm 583mm 611mm.

Bottom bracket drop

40mm 40mm 40mm 40mm.

Bottom bracket height

332mm 332mm 332mm 332mm.

Chainstay length

448mm 448mm 448mm 448mm.

Seat tube angle actual

68.9° 69.25° 69.6° 70°.

Seat tube angle effective

73.75° 73.75° 73.75° 73.75°.

Head tube angle

70.5° 70.5° 70.5° 70.5°.

Wheel base

1082mm 1112mm 1140mm 1168mm.

Standover height

770mm 774mm 780mm 793mm.

Head tube length

90mm 105mm 120mm 140mm.

Stack

587mm 601mm 615mm 634mm.

Reach

393mm 418mm 441mm 462mm.

Handlebar width

700mm 700mm 700mm 700mm.

Stem length

75mm 90mm 100mm 110mm.

Crank length

170mm 175mm 175mm 175mm.

Seatpost length

350mm 400mm 400mm 400mm.
