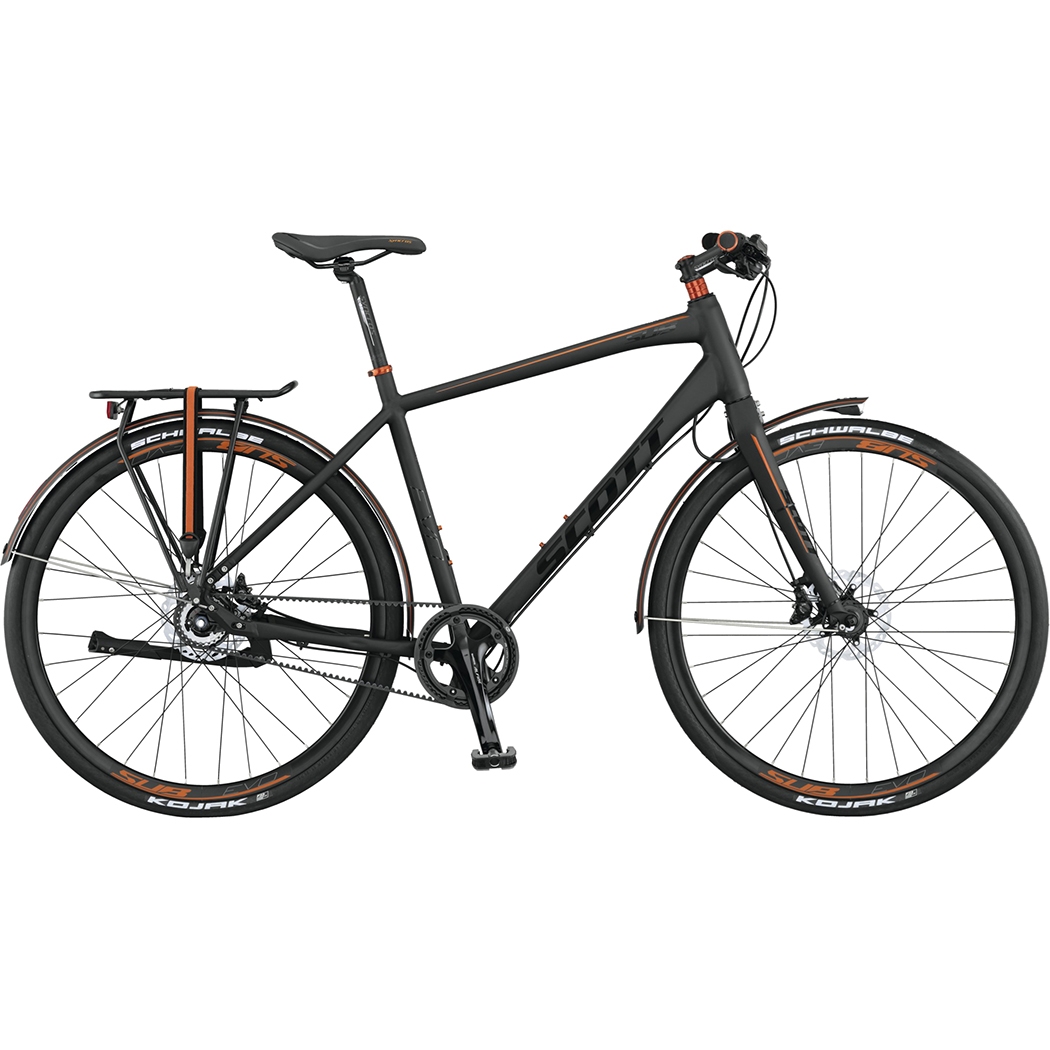

Scott Sub Evo 10

The SCOTT SUB Evo 10 features a sporty trekking geometry that suits trips of all distances. Equipped with a Shimano Alfine 8 speed gates belt, integrated front and rear lights, a custom Racktime carrier and compatibility with Snap'it accessories, this bike is begging to go on an adventure.

Cykelspecifikationer
Ram SUB Evo 6061 Smooth welding Belt Drive
Gaffel eller ev. stötdämpare fram Sub Evo Alu Rigid Forged
Styrlager VP-A41AC Semi integrated
Växelhandtag Shimano SL-S503
Bromshandtag Shimano BL-S700
Bromsar Shimano BR-S700 + SM-BH90-SB (hose)
Vevparti Shimano FC- S501CXXL w Gates 50T CDX ring
Vevlager Included with crankset
Styre Syncros Flat Bar HL MTB-300 UC3.0
Styrstam Syncros HL TDS-D5078 UC3.0
Pedaler SP-823
Sadelstolpe Syncros HL SPC-212 UC3.0
Sadel Syncros Urban Solution 2.5
Nav fram Shimano Alfine DHS7011 Dynamo 32h
Nav bak Shimano SG-S501 32h
Kedja Gates 122T CDX belt
Kassett eller ev. drev bak Gates 26T CDX
Ekrar Pillar Steel 14G
Fälgar Mach 1 560 Disc, 32h
Däck Schwalbe Kojak
Belysning Integrated Busch & Müller
Pakethållare och skärmar Racktime Standit w/ spring clamp Curana C-lite D45 with integrated Front and Rear Light
Vikt i kg 14.00kg
Vikt i lbs 30.86lbs

Ramgeometri
S M L XL
Head tube angle 70.0 ° 70.0 ° 70.0 ° 70.0 °
Head tube length 185.0 mm 185.0 mm 185.0 mm 205.0 mm
Top tube horizontal 580.0 mm 595.0 mm 605.0 mm 615.0 mm
Standover height
Bottom bracket offset -65.0 mm -65.0 mm -65.0 mm -65.0 mm
Bottom bracket height 285.0 mm 285.0 mm 285.0 mm 285.0 mm
Wheel base 1,101.7 mm 1,116.7 mm 1,126.7 mm 1,126.2 mm
Bottom bracket center to toptube center 410.0 mm 450.0 mm 490.0 mm 530.0 mm
Bottom bracket center to top of seattube 480.0 mm 520.0 mm 560.0 mm 600.0 mm
Seat angle 73.0 ° 73.0 ° 73.0 ° 73.0 °
Chainstay 455.0 mm 455.0 mm 455.0 mm 455.0 mm
Reach
Stack
Stem length 80.0 mm 90.0 mm 100.0 mm 110.0 mm
