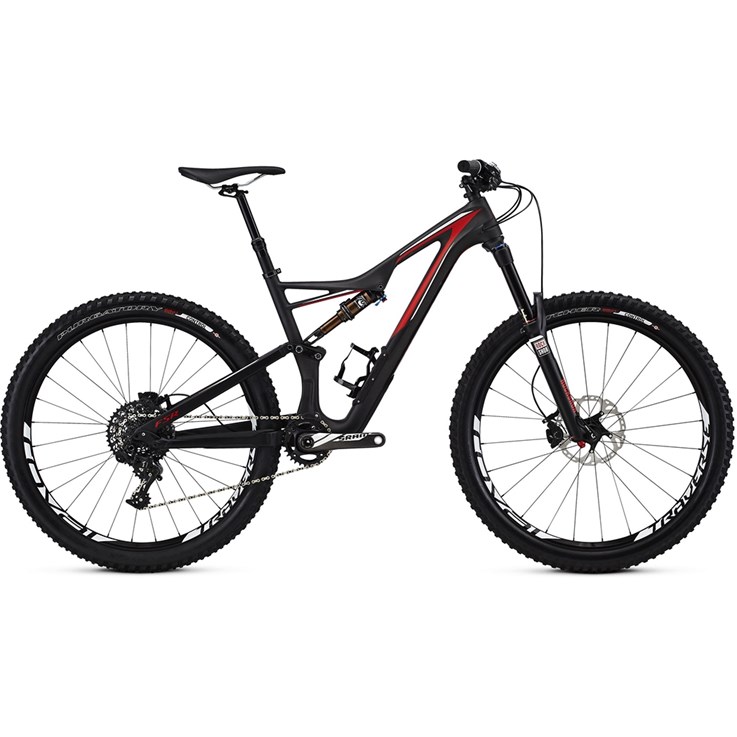

Specialized Stumpjumper FSR Expert Carbon 650B Satin Carbon/Red/White

Cykelbeskrivning

If your idea of trail riding follows the philosophy of "go big or go home," you simply can't beat the agility and responsiveness that a 650b provides. Knowing this, we built our Stumpjumper FSR Expert Carbon 650b to be the ultimate all-rounder trail bike. It features SRAM's workhorse one-by groupset, X1, and Shimano's dependable, no-holds-barred XT hydraulic disc brakes to round out a build that places an equal focus on durability and efficiency. At the frame, you'll find our FACT 9m carbon fiber that creates a lightweight, strong, and stiff construction. The carbon molding process also allowed us to revolutionize how you carry your trail essentials with the all-new SWAT Door found at the down tube. This compartment will fit a tube, a tool, and pump without rattling or compromising the structural integrity of the frame. And when you factor in our proprietary Rx Trail Tune at the shock, plus an aggressive, trail-eating geometry that features ridiculously short chainstays, a roomy top tube, a low bottom bracket, and a slacked out front end, you truly do get a bike that refuses to compromise.

>FACT 9m carbon fiber Trail Chassis with Stumpjumper FSR M5 alloy rear end blends stiffness with light weight to form the pinnacle of efficiency, while 150mm of travel, fully enclosed cable routing, and integrated SWAT Door create exceptional handling and zero-hassle storage.
>Connected with our FSR 6-Pack Linkage, a custom FOX FLOAT Factory rear shock features AUTOSAG for easy setup and 150mm of plush, adjustable suspension, while our Rx Trail Tune provides a more supple, responsive, and efficient feel for climbing up and descending down the trail.
>RockShox Pike RC 650b fork features a 15mm Maxle Ultimate thru-axle and 150mm of plush travel to take on big hits and bumpy terrain with supreme confidence and efficiency.
>650bx2.3” Specialized Butcher Control front tire inspires confidence through any terrain.
>650bx2.3” Specialized Purgatory Control rear tire delivers reliable traction over a diverse section of soils and conditions.
>Command Post IRcc seatpost features 12 positions of up to 125mm of height adjustability for a more customizable position, ultimately resulting in more control and increased handling on both climbs and descents.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

FACT 9m carbon, Trail 650b Geometry, FACT IS carbon construction, M5 alloy rear triangle, SWAT Door integration, fully enclosed internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, front derailleur compatible w/ Taco Blade, 150mm travel.

Stötdämpare bak

Custom FOX FLOAT Factory CTD, AUTOSAG, Rx Trail Tune, Boost Valve, Kashima coating, 197x47.6mm.

Gaffel eller ev. stötdämpare fram

RockShox Pike RC 650b, Solo Air spring, 150mm travel, compression adjust, rebound adjust, tapered steerer, 42mm offset, 15mm Maxle Ultimate thru-axle.

Styrlager

Hella Flush, 1-1/8" and 1-1/2" threadless, Campy style upper w/ 1-1/2" lower, cartridge bearings.

Styrstolpe eller ev. styrstam

Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise.

Styre

Specialized, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 25mm rise, 750mm, 31.8mm.

Handtag

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness.

Bromsar fram

Shimano XT, hydraulic disc, Ice-Tech metallic pads w/ fins, I-spec compatible, S/M: 180mm rotor, L/XL: 200mm rotor.

Bromsar bak

Shimano XT, hydraulic disc, Ice-Tech metallic pads w/ fins, I-spec compatible, S/M: 160mm rotor, L/XL: 180mm rotor.

Bromshandtag

Shimano XT, I-spec compatible.

Växelförare bak

SRAM X1, 11-speed, alloy cage.

Växelreglage

SRAM X1, 11-speed, trigger.

Kassett eller ev. drev bak

SRAM XG-1180, 11-speed, 10-42t.

Kedja

SRAM PC-X1, 11-speed.

Vevparti

Custom SRAM S-2200, carbon, PF30 spindle, 30T, 94mm BCD spider.

Vevlager

SRAM, PF30, OS press-in bearings, sealed cartridge.

Pedaler

Nylon, CEN std., w/ toe clips.

Fälgar

Roval Traverse 650b, alloy, disc, 29mm inner width, 24/28h.

Nav fram

Roval Traverse, 15/20mm thru-axle, 24h.

Nav bak

Roval Traverse 142+, SRAM XX1 driver body, 12mm thru-axle, 28h.

Ekrar

DT Swiss Revolution.

Däck fram

Specialized Butcher Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3".

Däck bak

Specialized Purgatory Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3".

Innerslang

Standard, Presta valve.

Sadel

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm.

Sadelstolpe

Command Post IRcc, cruiser control technology, micro-adjust height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm travel, M/L/XL: 125mm.

Sadelstolpsklämma

Specialized, 7050 alloy, single bolt, 34.9mm.

Ramgeometri

Frame size

S M L XL.

Stack

590mm 599mm 608mm 617mm.

Reach

388mm 414mm 442mm 464mm.

Head tube length

95mm 105mm 115mm 125mm.

Head tube angle

67° 67° 67° 67°.

Bottom bracket height

335mm 335mm 335mm 335mm.

Bottom bracket drop

18mm 18mm 18mm 18mm.

Trail

104mm 104mm 104mm 104mm.

Fork length full

542mm 542mm 542mm 542mm.

Fork rake offset

42mm 42mm 42mm 42mm.

Front to center

677mm 706mm 738mm 764mm.

Chain stay length

420mm 420mm 420mm 420mm.

Wheel base

1096mm 1126mm 1158mm 1184mm.

Seat tube length horizontal

558mm 587mm 618mm 646mm.

Standover height

737mm 743mm 757mm 759mm.

Seat tube length

396mm 430mm 468mm 523mm.

Seat tube angle

74° 74° 74° 74°.

Handlebar width

750mm 750mm 750mm 750mm.

Stem length

45mm 60mm 60mm 60mm.

Crank length

170mm 175mm 175mm 175mm.

Seatpost length

390mm 430mm 430mm 430mm.
