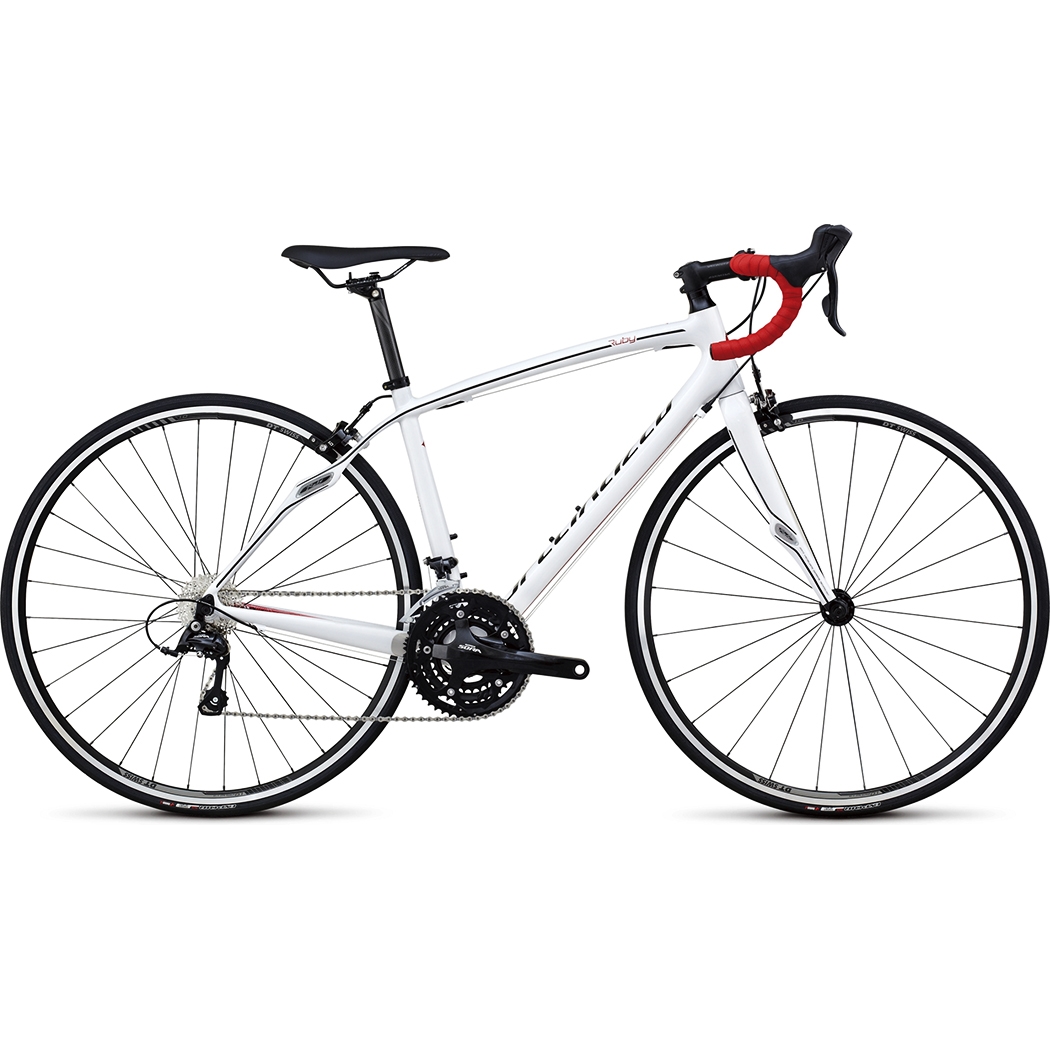

Specialized Ruby Trippel Vit
Visa storleksrekommendation.
Artikelnummer.
90E2-7444 (44)
Övriga art.nr.
90E2-7448 (48)
90E2-7451 (51)
90E2-7454 (54)
90E2-7457 (57)
Cykelbeskrivning
The Ruby is a quick and efficient, FACT 8r carbon bike, with Zertz vibration dampers in the frame and fork, designed to cover long distances in maximum control and comfort. High-quality Shimano Sora triple drivetrain and DT Axis 1.0 wheelset provide value and performance.
>FACT IS 8r carbon frame with Zertz inserts features women's endurance geometry and tubing for a lightweight, compliant, and balanced ride.
>DT Axis 1.0 wheelset is significantly lighter than comparable-level wheelsets, these tough wheels roll smooth and fast.
>Ultra-light FACT carbon monocoque fork with vibration-damping Zertz is stiff, responsive, and durable.
>New Shimano Sora triple crankset with forged alloy arms, plus all-new Sora drivetrain for durability with reliable and quiet shifting.
>Body Geometry Women's Riva 155mm features generous padding for all-day performance and comfort.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas.
Ram
Specialized FACT 8r carbon, FACT IS construction, compact women's design, Zertz, threaded BB
Stötdämpare bak
Gaffel eller ev. stötdämpare fram
Specialized Ruby, FACT carbon full monocoque, Zertz
Styrlager
1-1/8" Aheadset stainless race, steel balls w/ top cap w/ 20mm of spacers
Styrstolpe eller ev. styrstam
Specialized Elite-Set, 3D-forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
Styre
Specialized Comp CX, alloy, standard drop
Styrlinda
Specialized Roubaix tape w/ 2.5 gel pads
Bromsar fram
Axis DC 1.0
Bromsar bak
Axis DC 1.0
Bromshandtag
Shimano 105 STI
Växelförare fram
Shimano Sora triple, clamp-on
Växelförare bak
Shimano Sora
Växelreglage
Shimano Sora STI, 10-speed
Kassett eller ev. drev bak
Shimano CS-HG-50, 9-speed, 12-27
Kedja
KMC X9, 9-speed, nickel plate, w/ reusable Missing Link
Vevparti
Shimano Sora triple
Vevparti utväxling
52/39/30
Vevlager
BB-7420 ST, Cr-Mo axle, Power Spline BB
Pedaler
Nylon flat test ride, loose ball, w/ reflectors
Hjul fram
DT Axis 1.0
Hjul bak
DT Axis 1.0
Fälgar
Nav fram
Nav bak
Ekrar
Däck fram
Specialized Espoir Sport, double BlackBelt, 60TPI, wire bead, 700x23c
Däck bak
Specialized Espoir Sport, double BlackBelt, 60TPI, wire bead, 700x23c
Innerslang
Lightweight, presta
Sadel
Body Geometry Women's Riva Sport, 155mm wide
Sadelstolpe
Specialized Comp, FACT carbon w/ Zertz insert, 27.2mm
Sadelstolpsklämma
Forged alloy, 32.6mm NOTESChainstay protector, derailleur hanger, clear coat, owners manual
Ramgeometri
Frame size
440.0 480.0 510.0 540.0 570.0.
Seat tube length bottom bracket center to top
363mm 391.5mm 421.5mm 456.5mm 486.5mm.
Top tube length horizontal
509mm 522mm 529mm 539mm 566mm.
Bottom bracket drop
73mm 73mm 73mm 73mm 71.5mm.
Chain stay length
412mm 415mm 415mm 415mm 417mm.
Seat tube angle
74.5° 74.5° 74° 74° 73.5°.
Head tube angle
70.25° 71.25° 71.5° 72° 72°.
Fork rake
51mm 51mm 51mm 49mm 49mm.
Trail
68mm 62mm 60mm 59mm 59mm.
Front to center
577mm 584mm 587mm 591mm 614mm.
Wheel base
977mm 988mm 991mm 995mm 1021mm.
Stand over height
504mm 560mm 642mm 668mm 692mm.
Head tube length
120mm 130mm 145mm 165mm 190mm.
Handle bar width
360mm 380mm 400mm 400mm 420mm.
Stem length
75mm 75mm 90mm 100mm 100mm.
Crank length
165mm 165mm 170mm 170mm 172.5mm.
Seat post length
300mm 300mm 300mm 300mm 350mm.
Reach
358mm 370mm 370mm 374mm 390mm.
Stack
518mm 531mm 546mm 568mm 590mm.
