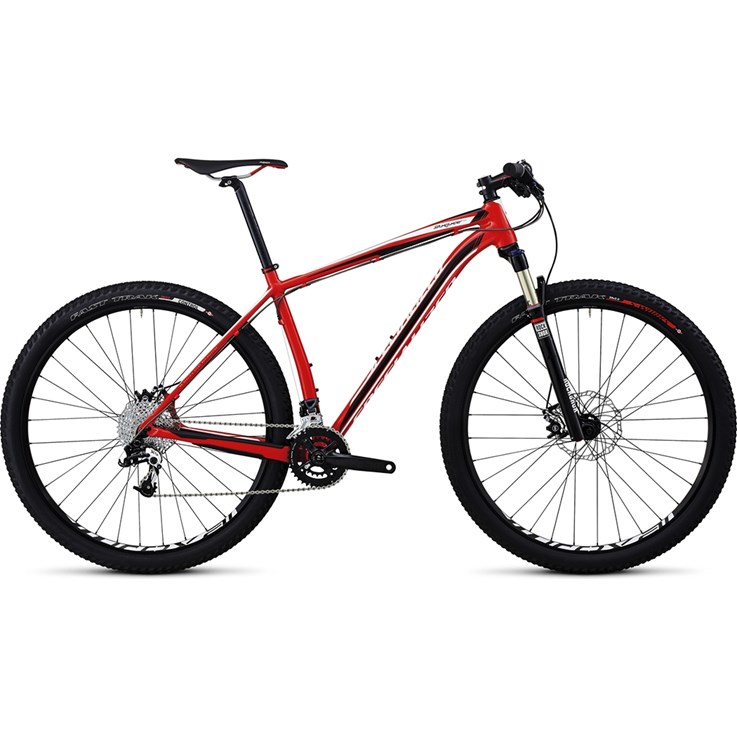

Specialized Stumpjumper Hardtail Comp 29 Röd/Svart/Vit

Cykelbeskrivning

The aluminum Stumpjumper HT Comp 29 features an M5 manipulated alloy frame with an 80mm-travel RockShox Reba RL fork and custom SRAM 2x10 crankset for pro-level performance at a privateer price.

>M5 fully manipulated alloy HT frame with optimized 29er geometry features a PF30 BB, and PM 140 rear brake for a sleek, responsive and race-ready design.
>RockShox Reba RL 29 fork with 90mm travel, new Solo Air spring, w/Lockout and rebound adjust, provides premium XC suspension performance.
>Roval 29 rims mated to Specialized Hi Lo hubs, 12mm thru-axle increase wheel stiffness for more confident riding.
>S-Works Fast Trak 29 2.0", 2Bliss ready front tire features dual-compound rubber delivering exceptional speed and traction, while minimizing rotating weight.
>Custom SRAM S-1250 XC double crankset with PF30 spindle for improved ground clearance and a custom alloy guard for chain retention during high-speed descents.
>All-new Sip Grip, a lock-on, Aramid infused, half-waffle MTB grip boosts durability, comfort and control.
>Custom Magura MTS hydraulic disc brakes provide consistent and reliable stopping power.
>SRAM PG-1030, 10-speed 11-36t cassette compliments the 2x10 drivetrain.
>Specialized BG Phenom Comp saddle with hollow Cr-Mo rails is a lightweight and minimalist design, features patented BG design for increased blood flow to sensitive areas.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

M5 fully manipulated alloy, 29" geometry, tapered HT, PF30 BB, PM 140mm rear brake, 135mm dropouts, replaceable derailleur hanger

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

RockShox Reba RL 29, Solo air spring, alloy tapered crown/steerer, w/Lockout and rebound adj., QR, 15.5": 80mm, 17.5/19/21": 90mm travel

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, 6-degree rise, S: 75mm, M: 90mm, L: 105mm, XL: 105mm

Styre

Specialized XC flat, 2014 butted alloy, 680mm wide, 8-degree backsweep, 31.8mm

Handtag

Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness

Bromsar fram

Custom Magura MTS, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, 160mm rotor

Bromsar bak

Custom Magura MTS, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, 160mm rotor

Bromshandtag

Custom Magura MTS, alloy master cylinder/lever blade, hollow lever pivot, reach adj.

Växelförare fram

SRAM X7, 10-speed, 34.9 clamp, top pull

Växelförare bak

SRAM X9 Type 2, 10-speed, mid cage

Växelreglage

SRAM X7, 10-speed, w/MatchMaker clamp

Kassett eller ev. drev bak

SRAM PG-1030, 10-speed, 11-36

Kedja

KMC X10, nickel plate, reusable Missing Link

Vevparti

Custom SRAM S-1250, 7050 alloy arms, 10-speed XC double, PF30 spindle, 15.5": 170mm, Others: 175mm

Vevparti utväxling

38/24

Vevlager

SRAM PF30, OS press-in bearing, sealed cartridge

Pedaler

Resin Test Ride Pedals with toe clips, CEN std.

Fälgar

Roval 29, alloy disc, 26mm wide, 32h

Nav fram

Specialized Hi Lo disc, OS28 end caps, sealed cartridge bearing, QR, 32h

Nav bak

Specialized Hi Lo disc, double-sealed cartridge bearing, QR, 32h

Ekrar

DT Swiss Industry, stainless, 14g

Däck fram

S-Works Fast Trak, 2Bliss Ready, 120 TPI, aramid bead, 29x2.0"

Däck bak

Specialized Fast Trak Control, 2Bliss Ready, 60 TPI, aramid bead, 29x2.0"

Innerslang

Ultralight presta

Sadel

Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Specialized 2014 butted alloy, single bolt setback, 27.2mm, 15.5/17.5" 350mm; Others: 400mm

Sadelstolpsklämma

Specialized 7050 hard anodized alloy, 31.8mm, single bolt NOTESProtective clear coat, derailleur hanger, owners manual

Ramgeometri

Frame size

15.5 17.5 19.0 21.0 23.0.

Seat tube length center to top

394mm 445mm 483mm 533mm 584mm.

Top tube length horizontal

570mm 590mm 615mm 640mm 660mm.

Top tube length actual

538mm 556mm 578mm 604mm 628mm.

Chainstay length

435mm 435mm 435mm 435mm 435mm.

Bottom bracket drop

63.5mm 63.5mm 63.5mm 63.5mm 63.5mm.

Bottom bracket height

304mm 304mm 304mm 304mm 304mm.

Head tube length

90mm 100mm 115mm 130mm 150mm.

Head tube angle

71.5° 71.5° 71.5° 71.5° 71.5°.

Seat tube angle actual

71° 71° 71° 71° 71°.

Seat tube angle effective

73.5° 73.5° 73.5° 73.5° 73.5°.

Wheel base

1051mm 1070mm 1096mm 1121mm 1142mm.

Stack

596mm 616mm 630mm 644mm 663mm.

Reach

393mm 408mm 428mm 449mm 463mm.

Standover height

758mm 796mm 826mm 860mm 893mm.

Handlebar width

720mm 720mm 720mm 720mm 720mm.

Stem length

60mm 60mm 70mm 90mm 105mm.

Crank length

170mm 175mm 175mm 175mm 175mm.

Seatpost length

350mm 400mm 400mm 400mm 400mm.
