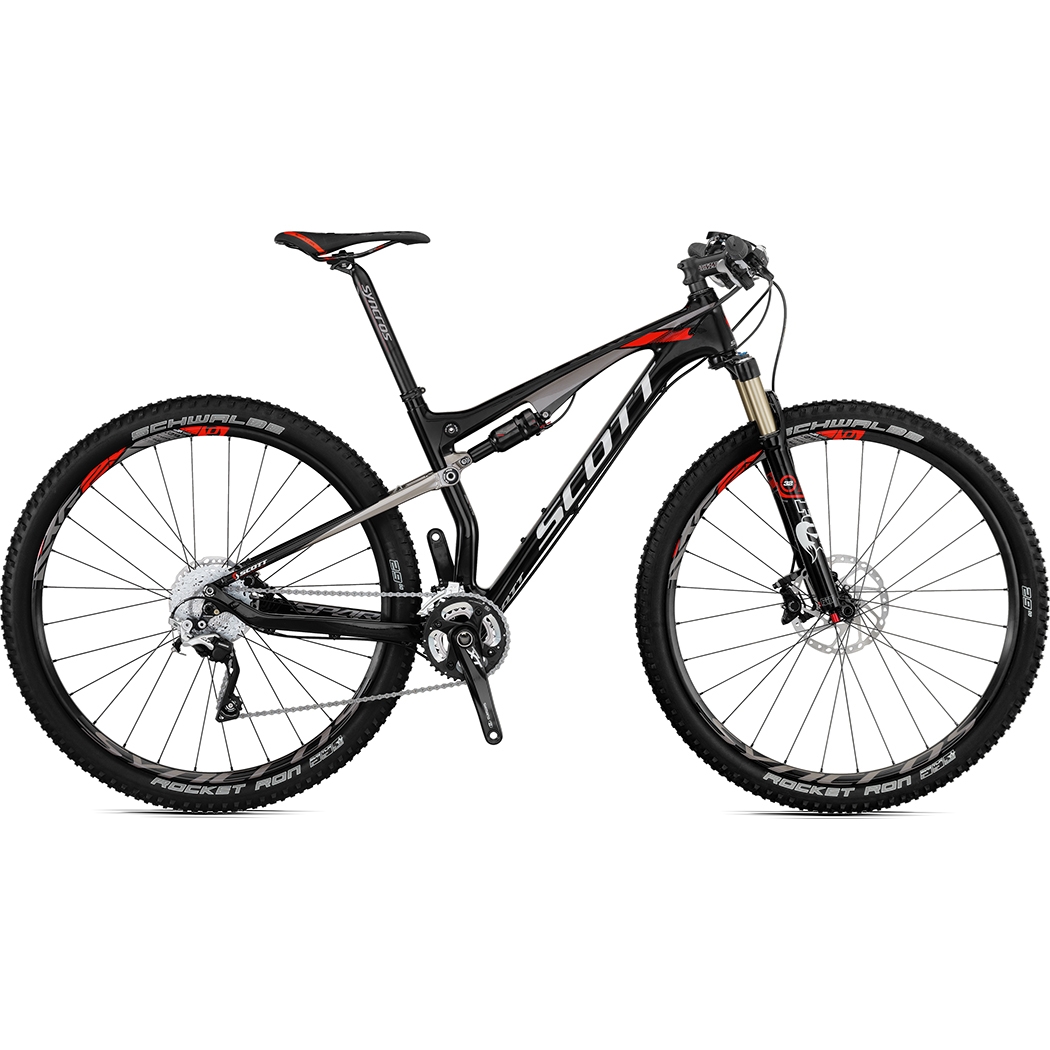

Scott Spark 910

Lightest frame in class, TwinLoc, LTD suspension with 3 modes on fork and shock, frontand rear thru axle, optimized 2 x 10drive train, performance selected parts, Syncros components, tubeless ready

Specifikationsnyheter
FOX fork with 15QR, Nude2 rear shock with updated damping, Shimano Shadow Plus Type rear derailleur, rear IDS SL 12mm thru axle, Syncros components

Cykelspecifikationer
Ram Spark Carbon / IMP5 technology / HMF NET, BB 92 / Alloy swingarm with 160PM, U-Mono Link / Tapered Headtube, IDS SL dropouts for 142 x 12mm, BB height adj. / 100mm rear travel
Gaffel eller ev. stötdämpare fram FOX 32 Float 29 Factory CTD Air, CTD damper with 3 modes, 15mm QR axle / tapered steerer , reb. Adj. / 100 mm travel
Gaffel övrigt Scott LTD suspension technology, Lock - Traction (travel / geo adj) - Descend, activate by Twinloc Remote Lever, Lockout - 70 - 100mm
Stötdämpare bak Scott DT Nude2 / 3 modes Lockout-TC-D , Ball joints / 165 x 38mm / reb. Adj.
Styrlager Ritchey Pro Tapered 1.5" - 1 1/8", semi integr. OD 50/61mm / ID 44/55mm
Växelförare bak Shimano XT RD-M786 SGS, Shadow PlusType / 20 Speed
Växelförare fram Shimano XT FD-M785-E / DM
Växelhandtag Shimano XT SL-M780-I, Rapidfire Plus / 2 way release, Ispec clamp
Bromshandtag Shimano XT BL-M785 Disc
Bromsar Shimano XT BR-M785 Disc, 180/F and 160/R mm SM-RT64 CL Rotor
Vevparti Shimano XT FC-M785, hollowtech 2, 38Ax24A T
Vevlager Shimano SM-BB71-41A / shell 41x89.5mm
Styre Syncros FL1.5 Tbar, Alloy 7050 D.B. / T shape Flat / 9° / 700mm, Syncros Pro lockon grips
Styrstam Syncros FL1.5, 7050 Alloy / oversize 31.8mm, 1-1/8" / 6° angle
Pedaler nil
Sadelstolpe Syncros FL1.5 / 31.6mm
Sadel Syncros XR1.5 / Titanium rails
Nav fram Syncros XR 2.0 29 CL / 15mm, made by DT Swiss
Nav bak Syncros XR 2.0 29 CL / 12 x 142 / RWS, made by DT Swiss
Kedja Shimano CN-HG74
Kassett eller ev. drev bak Shimano XT CS-M77110, 11-36 T
Ekrar DT Swiss Super Comp black
Fälgar Syncros / DT Swiss XR 2.0 29, 28H / Tubeless ready
Däck Schwalbe Rocket Ron EVO, 29 x 2.25 / 127EPI Kevlar Bead, Tubeless ready / Pace star compound
Vikt 11.3 kg / 24.89 lbs

Ramgeometri
S S M M L L XL XL
BB setting high BB setting low BB setting high BB setting low BB setting high BB setting low BB setting high BB setting low
Head tube angle 70.1° 69.5° 70.1° 69.5° 70.1° 69.5° 70.1° 69.5°
Head tube length 105 mm 4.1 in 105 mm 4.1 in 105 mm 4.1 in 105 mm 4.1 in 115 mm 4.5 in 115 mm 4.5 in 125 mm 4.9 in 125 mm 4.9 in
Top tube horizontal 568 mm 22.4 in 570 mm 22.4 in 598 mm 23.5 in 600 mm 23.6 in 628 mm 24.7 in 630 mm 24.8 in 649 mm 25.6 in 650 mm 25.6 in
Top tube length actual 518 mm 20.4 in 518 mm 20.4 in 539 mm 21.2 in 539 mm 21.2 in 566 mm 22.3 in 566 mm 22.3 in 588 mm 23.1 in 588 mm 23.1 in
Seat tube angle 73.1° 72.5° 73.1° 72.5° 73.1° 72.5° 73.1° 72.5°
Bottom bracket center to top of seattube 400 mm 15.7 in 400 mm 15.7 in 440 mm 17.3 in 440 mm 17.3 in 481 mm 18.9 in 481 mm 18.9 in 541 mm 21.3 in 541 mm 21.3 in
Bottom bracket center to toptube center 335 mm 13.2 in 335 mm 13.2 in 350 mm 13.8 in 350 mm 13.8 in 403 mm 15.9 in 403 mm 15.9 in 448 mm 17.6 in 448 mm 17.6 in
Chainstay length 448 mm 17.6 in 448 mm 17.6 in 448 mm 17.6 in 448 mm 17.6 in 448 mm 17.6 in 448 mm 17.6 in 448 mm 17.6 in 448 mm 17.6 in
Bottom bracket offset -41 mm -1.6 in -48 mm -1.9 in -41 mm -1.6 in -48 mm -1.9 in -41 mm -1.6 in -48 mm -1.9 in -41 mm -1.6 in -48 mm -1.9 in
Bottom bracket height 324 mm 12.8 in 317 mm 12.5 in 324 mm 12.8 in 317 mm 12.5 in 324 mm 12.8 in 317 mm 12.5 in 324 mm 12.8 in 317 mm 12.5 in
Standover height 762 mm 30.0 in 758 mm 29.8 in 768 mm 30.2 in 764 mm 30.1 in 806 mm 31.7 in 802 mm 31.6 in 836 mm 32.9 in 833 mm 32.8 in
Wheel base 1082 mm 42.6 in 1082 mm 42.6 in 1112 mm 43.8 in 1112 mm 43.8 in 1143 mm 45.0 in 1143 mm 45.0 in 1163 mm 45.8 in 1163 mm 45.8 in
Reach 386 mm 15.2 in 379 mm 14.9 in 416 mm 16.4 in 409 mm 16.1 in 442 mm 17.4 in 436 mm 17.2 in 456 mm 18.0 in 453 mm 17.8 in
Stack 602 mm 23.7 in 606 mm 23.9 in 602 mm 23.7 in 606 mm 23.9 in 611 mm 24.1 in 615 mm 24.2 in 623 mm 24.5 in 625 mm 24.6 in
Stem length 70 mm 70 mm 80 mm 80 mm 90 mm 90 mm 100 mm 100 mm
