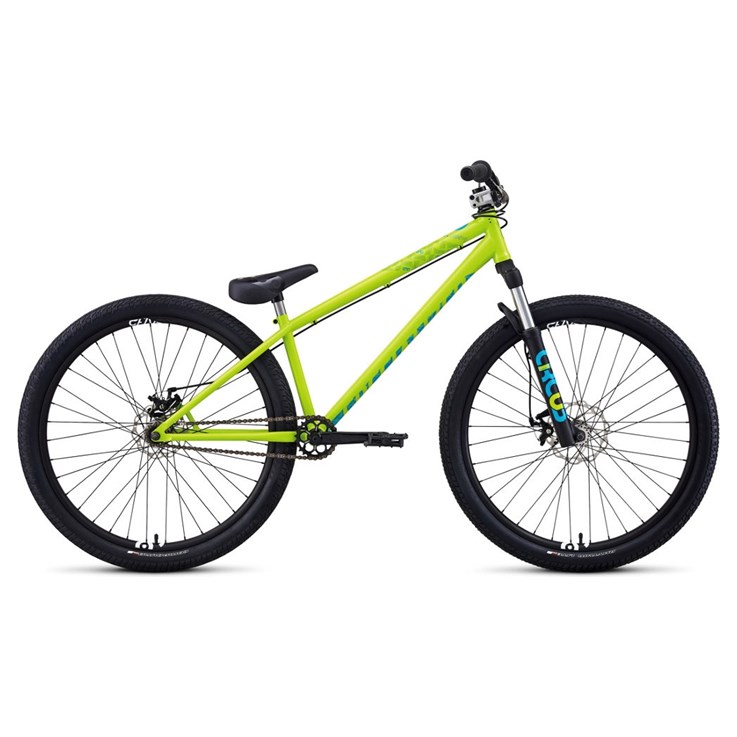

Specialized P.26 Am Hypergrön/Cyanblå/Grön

Cykelbeskrivning

>Butted, singlespeed-specific, 26" Reynolds 520 Cr-Mo frame with integrated headset, MID BB, and 3D-forged horizontal dropouts has perfectly dialed geos for dirt, park, or street.
>Coil-sprung Manitou Circus Comp fork is purpose-built for the punishment from dirt jumping and street riding with hydraulic damping and preload adjustments.
>36-spoke, double-wall, 26" singlespeed wheelset is built to withstand endless abuse.
>BMX-style, 3-piece tubular Cr-Mo crankset with cartridge-bearing MID BB is strong and light to go big with confidence; singlespeed 25T chainring resists bending and delivers the clearance you need.
>The Cr-Mo P.Series MTB Street handlebar is 735mm wide for more leverage and precise handling.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

Double-butted Reynolds 520 Cr-Mo, singlespeed-specific, integrated headset, MID BB shell, hydra-formed chainstays, 3D forged horizontal dropouts w/ intl std disc mount

SWAT (Storage, water, air and tools)

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

Manitou Circus Sport, coil spring, 1-1/8" steel steerer, hydraulic damping w/ preload adjustment.,9mm axle dropouts, mag post mount lower, 32mm steel stanchions, 80mm travel

Styrlager

Integrated 1-1/8" threadless, Campy style, full cartridge bearings

Styrstolpe eller ev. styrstam

Specialized P.Series BMX, forged alloy, top load, 52mm, 22.2mm clamp

Styre

Specialized P.Series MTB Street, heat-treated butted Cr-Mo, 735mm wide, 11-degree backsweep, 2-degree upsweep, 75mm rise

Handtag

P.Grip BMX, w/ flange, Pruven, end plugs, 150mm

Bromsar fram

Bromsar bak

Tektro Novela, mechanical disc, dual pad angle adjustment, 140mm rotor

Bromshandtag

Tektro, alloy lever

Växelförare fram

Växelförare bak

Växelreglage

Kassett eller ev. drev bak

Singlespeed, Cr-Mo, 12T

Kedja

KMC Z-510H

Vevparti

P.Crank, 3pc. Cr-Mo, tubular arms, 48-spline,165mm, 170mm, 175mm

Vevparti utväxling

P.Spline sprocket, 25T

Vevlager

MID BB, 2x sealed cartridge bearings w/ 19mm, 48-spline Cr-Mo spindle,

Pedaler

Nylon platform w/ molded pins, loose ball, 9/16"

Fälgar

P.Disc 26", alloy double-wall, triple void, 32mm, 36h

Nav fram

P.Series disc, alloy, loose ball, solid axle, 36h

Nav bak

P.Series Dirt Jump disc, alloy, sealed cartridge bearings, solid axle w/ track nut, 36h

Ekrar

Stainless, 14g (2.0mm)

Däck fram

Specialized Rhythm Lite Sport, 60TPI, wire bead, 26x2.3"

Däck bak

Specialized Compound Sport, 60TPI, wire bead, 26x2.2"

Innerslang

Standard Schrader valve

Sadel

P.Seat SL, 1pc. w/ co-molded alloy 25.4mm seatpost, padded

Sadelstolpe

Alloy, 25.4mm, integrated w/ saddle

Sadelstolpsklämma

Integrated Cr-Mo bolt w/ nylock nut

Övrigt

Reflectors, owner's manual

Ramgeometri

Frame size

L.

Bottom bracket drop

7mm.

Bottom bracket height

329mm.

Chainstay length

383mm.

Crank length

170mm.

Fork length

458mm.

Fork offset

40mm.

Handlebar width

735mm.

Head tube angle

70.5°.

Head tube length

128mm.

Reach

413mm.

Seat tube angle actual

74°.

Seat tube length center to top

305mm.

Seatpost length

200mm.

Stack

545mm.

Stem length

40mm.

Top tube length actual

561mm.

Wheel base

1045mm.
