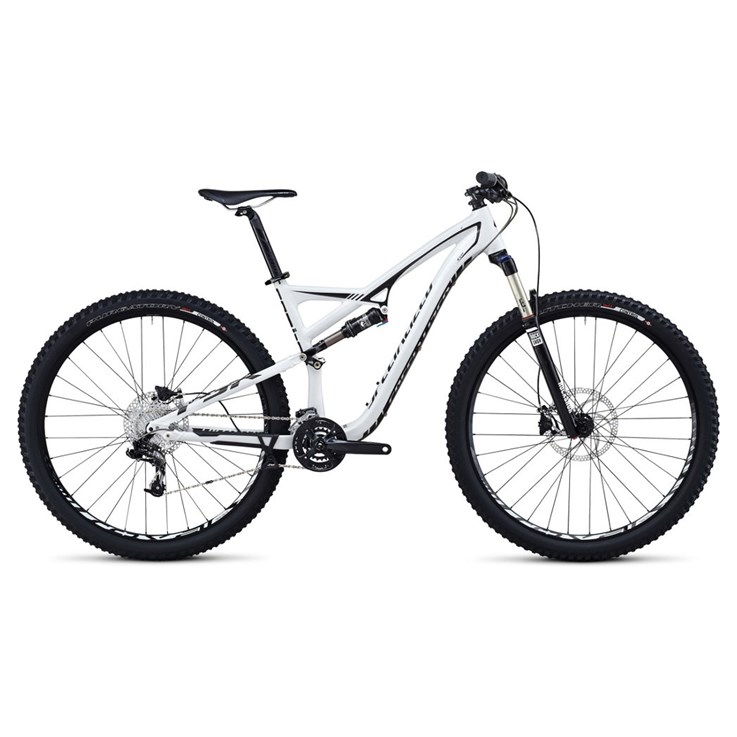

Specialized Camber FSR EVO 29 Vit/Askgrå

Cykelbeskrivning

The Camber EVO 29 utilizes an M5 alloy frame, custom SRAM S-1250, 10-speed XC Trail double crankset and 120mm of travel to create an ultra-capable trail machine.

>The M5 alloy FSR frame with 29er-specific, slacker EVO geometry has 120mm of travel, 142+ dropouts, an all-new concentric sealed-cartridge bearing shock link and features internal cable routing for the Command Post BlackLite to create a lightweight and responsive trail weapon.
>Fox Float CTD Evolution shock with Specialized's proprietary AUTOSAG smooths the trail and is simple and accurate to set up.
>RockShox Reba RL 29 fork has 120mm of travel, Solo Air spring, and a tapered steerer tube makes for lightweight and efficient trail suspension.
>Roval 29 rims mated to Specialized Hi Lo hubs, with 15mm endcaps, 142mm rear hub spacing, and 12mm thru-axle to increase wheel stiffness for more confident riding.
>Custom SRAM 10-speed Trail double-ring shifts fast while the PF30 spindle makes for an efficient and stiff crankset.
>Specialized 750mm-wide, alloy XC Mini Riser handlebar ideal for 29er handling and riding position.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

M5 hydroformed tubing, EVO geometry, tapered headtube, PF30 BB, internal Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, bolt-on cable guides, 120mm travel

SWAT (Storage, water, air and tools)

Bottle cage w/ SWAT Technology compatible (not included)

Stötdämpare bak

Fox Float CTD Evolution, w/ AUTOSAG, air spring, lockout and reb adj., 197x51mm

Gaffel eller ev. stötdämpare fram

RockShox Reba RL 29, Solo Air spring, alloy tapered steerer, lockout and reb adj., 15mm thru-axle, 120mm travel

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized Trail, 6061 alloy, 4-bolt, 8-degree rise, 6-degree rise, 31.8mm clamp

Styre

Specialized XC Mini Riser, 6000 butted alloy, 750mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm

Handtag

Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness

Bromsar fram

Formula C1, alloy caliper, metallic pad, S/M: 180mm, L/XL: 200mm rotor

Bromsar bak

Formula C1, alloy caliper, metallic pad, S/M: 160mm, L/XL: 180mm rotor

Bromshandtag

Formula C1, hydraulic disc, tooled reach adj.

Växelförare fram

SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull

Växelförare bak

SRAM X9 Type 2, 10-speed, mid cage

Växelreglage

SRAM X7, 10-speed, w/ MatchMaker clamp

Kassett eller ev. drev bak

SRAM PG-1030, 10-speed, 11-36

Kedja

SRAM PC 1031, 10-speed, PowerLink

Vevparti

Custom SRAM S-1250, 10-speed Trail double, PF30 spindle, S: 170mm, Others: 175mm

Vevparti utväxling

36/22, w/ alloy guard

Vevlager

SRAM PF30, OS press-in bearings, sealed cartridge

Pedaler

Fälgar

Roval 29, alloy disc, 26mm wide, 32h

Nav fram

Specialized Hi Lo disc, 15mm thru-axle, sealed cartridge bearings, QR, 32h

Nav bak

Specialized Hi Lo disc, 4x-sealed cartridge bearings, 12mm thru-axle, 142+ spacing, 32h

Ekrar

DT Industry Stainless, 3X front/rear 2.0

Däck fram

Specialized Butcher Control, 2Bliss Ready, 29x2.3", foldable aramid bead, dual-compound, 60TPI

Däck bak

Specialized Purgatory Control, 2Bliss Ready, 29x2.3", foldable aramid bead, dual-compound, 60 TPI

Innerslang

Sadel

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Specialized 2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm

Sadelstolpsklämma

7050 hard anodized alloy collar, QR, 34.9mm

Övrigt

Ramgeometri

Frame size

S M L XL.

Bottom bracket height low setting

330mm 330mm 330mm 330mm.

Chainstay length

451mm 451mm 451mm 451mm.

Crank length

170mm 175mm 175mm 175mm.

Handlebar width

720mm 720mm 720mm 720mm.

Head tube angle low setting

68.8° 68.8° 68.8° 68.8°.

Head tube height

90mm 100mm 125mm 150mm.

Reach

387mm 416mm 432mm 454mm.

Seat tube angle actual low setting

68.8° 68.8° 68.8° 68.8°.

Seat tube angle effective low setting

73.8° 73.6° 73.3° 73°.

Seat tube length center to top

394mm 430mm 468mm 523mm.

Seatpost length

350mm 350mm 400mm 400mm.

Stack

599mm 609mm 633mm 657mm.

Standover height

744mm 752mm 755mm 759mm.

Stem length

60mm 75mm 90mm 100mm.

Top tube length actual

564mm 595mm 618mm 646mm.

Top tube length horizontal

560mm 592mm 617mm 645mm.

Wheel base

1104mm 1135mm 1161mm 1190mm.
