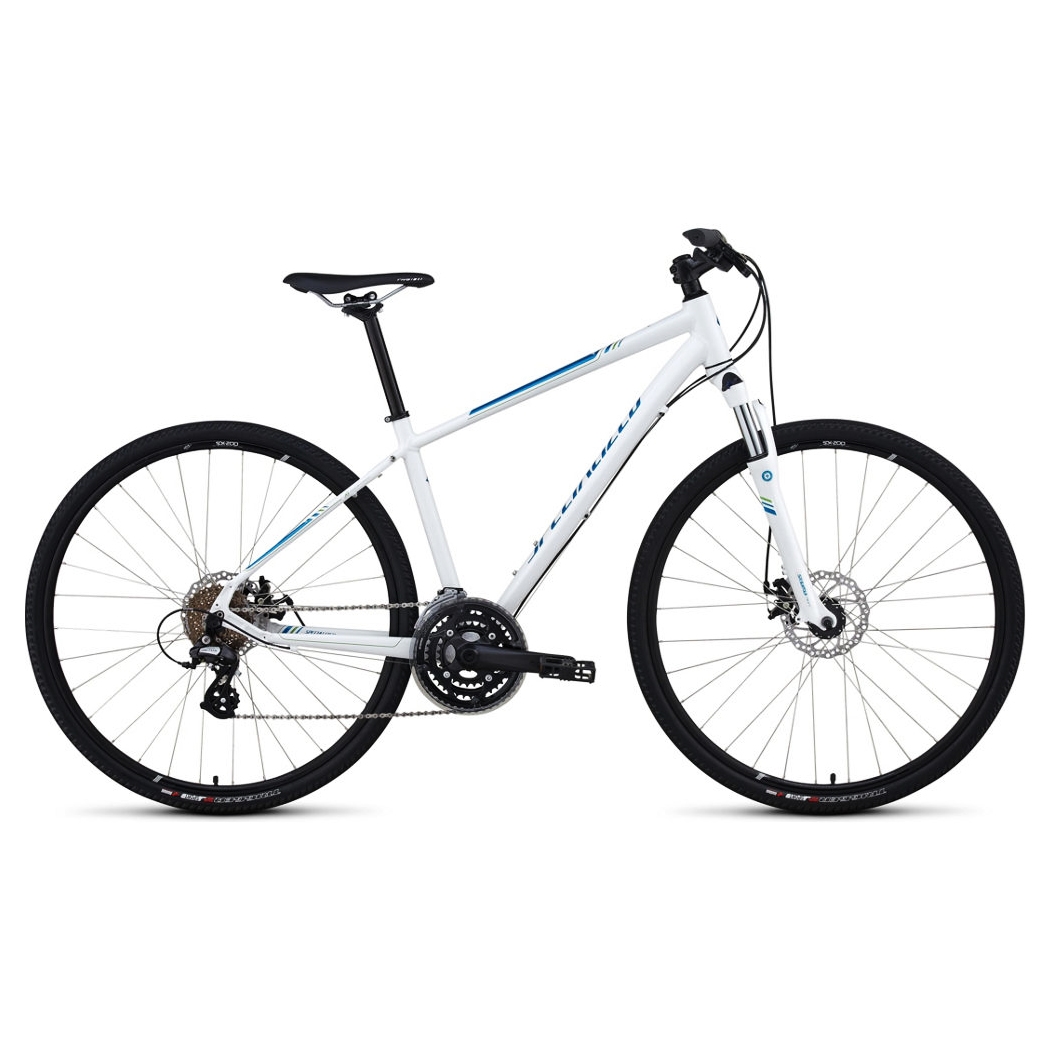

Specialized Ariel Disc INT Vit/Blå/Grön

Cykelbeskrivning

With elements of both a road bike and mountain bike, the Ariel is for the female rider looking to zip through the weekday commute and head out for weekend adventure. The Ariel Disc features a A1 Premium Aluminum frame with Women's Fitness Geometry, Tektro Novela disc brakes, and a 60mm-travel SR Suntour fork for a plush ride.

>A1 Premium Aluminum frame with Women's Fitness Geometry and tubesets for a lightweight and confidence-inspiring ride. Fender/rack braze-ons for versatility.
>SR Suntour 60mm-travel custom women's coil sprung fork with lockout and alloy lowers provides a capable and plush ride.
>SR Suntour 8-speed triple crankset gives you all the gears she needs for varied terrain, with a chainguard for added protection.
>Tektro Novela mechanical disc brakes for solid braking and easy maintenance under any conditions.
>Women's Body Geometry Riva saddle features a women's cutout and plush seating area for all-day riding comfort.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

Specialized A1 Premium Aluminum, Women's Fitness Geometry and tubesets, double-butted, w/ fender/rack braze-ons, forged dropouts, kickstand mount

SWAT (Storage, water, air and tools)

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

SR Suntour NEXi Coil, custom women's coil spring, aluminum lower, custom integrated crown, mechanical lockout, 60mm travel

Styrlager

1-1/8" FSA Ahead, semi-integrated, 8mm cone spacer

Styrstolpe eller ev. styrstam

Melt-forged alloy, 4-bolt, 10-degree rise, 25.4mm clamp

Styre

Specialized XC riser bar, alloy, 8-degree backsweep, 25mm rise, 25.4mm

Handtag

Specialized Body Geometry Women's XCT, Kraton w/ gel, lock-on

Bromsar fram

Tektro Novela, mechanical disc, dual pad angle adjustment, 160mm rotor

Bromsar bak

Tektro Novela, mechanical disc, dual pad angle adjustment, 160mm rotor

Bromshandtag

Tektro, mechanical lever

Växelförare fram

Shimano FDM-191, top-swing, dual-pull

Växelförare bak

Shimano Altus, 8-speed

Växelreglage

Shimano SL-M310, Rapidfire

Kassett eller ev. drev bak

Shimano HG-31, 8-speed, 11-32

Kedja

KMC X8

Vevparti

SR Suntour XCT, 8-speed, square taper spindle, replaceable outer ring, w/ chainguard

Vevparti utväxling

48/38/28, w/ chainguard

Vevlager

Cartridge bearings, square spindle, capless bolts

Pedaler

Composite plastic body, loose ball, w/ reflectors

Fälgar

Disc, alloy double-wall, pin joint, 32h

Nav fram

Disc, double-sealed, ground race, dual-lock nuts w/ 19mm contact side, 5mm QR, round disc mount

Nav bak

Disc, double-sealed, loose ball, dual-lock nuts w/ 19mm contact side, QR, 32h

Ekrar

Stainless, 14g (2.0mm)

Däck fram

Specialized Trigger Sport, 60TPI, wire bead, 700x38c

Däck bak

Specialized Trigger Sport, 60TPI, wire bead, 700x38c

Innerslang

Standard Schrader valve

Sadel

Specialized Body Geometry Riva Women's, steel rails, 155mm

Sadelstolpe

Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm

Sadelstolpsklämma

Alloy, 31.8mm, QR, nylon washer

Övrigt

Ramgeometri

Frame size

XS SM MD LG XL.

Bottom bracket drop

60mm 60mm 60mm 60mm 60mm.

Chain stay length

445mm 445mm 445mm 445mm 445mm.

Crank length

170mm 170mm 175mm 175mm 175mm.

Fork rake

38mm 38mm 38mm 38mm 38mm.

Front to center

616mm 629mm 643mm 658mm 675mm.

Handle bar width

660mm 660mm 660mm 660mm 660mm.

Head tube angle

70° 70° 70° 70° 70°.

Head tube length

85mm 105mm 120mm 135mm 160mm.

Seat post length

300mm 350mm 350mm 350mm 350mm.

Seat tube angle

73° 73° 73° 73° 73°.

Seat tube length bottom bracket center to top

345mm 395mm 440mm 485mm 550mm.

Stand over height

699mm 738mm 771mm 804mm 849mm.

Stem length

60mm 70mm 80mm 80mm 90mm.

Top tube length horizontal

560mm 572mm 585mm 600mm 615mm.

Trail

91mm 91mm 91mm 91mm 91mm.

Wheel base

1054mm 1067mm 1081mm 1097mm 1113mm.
