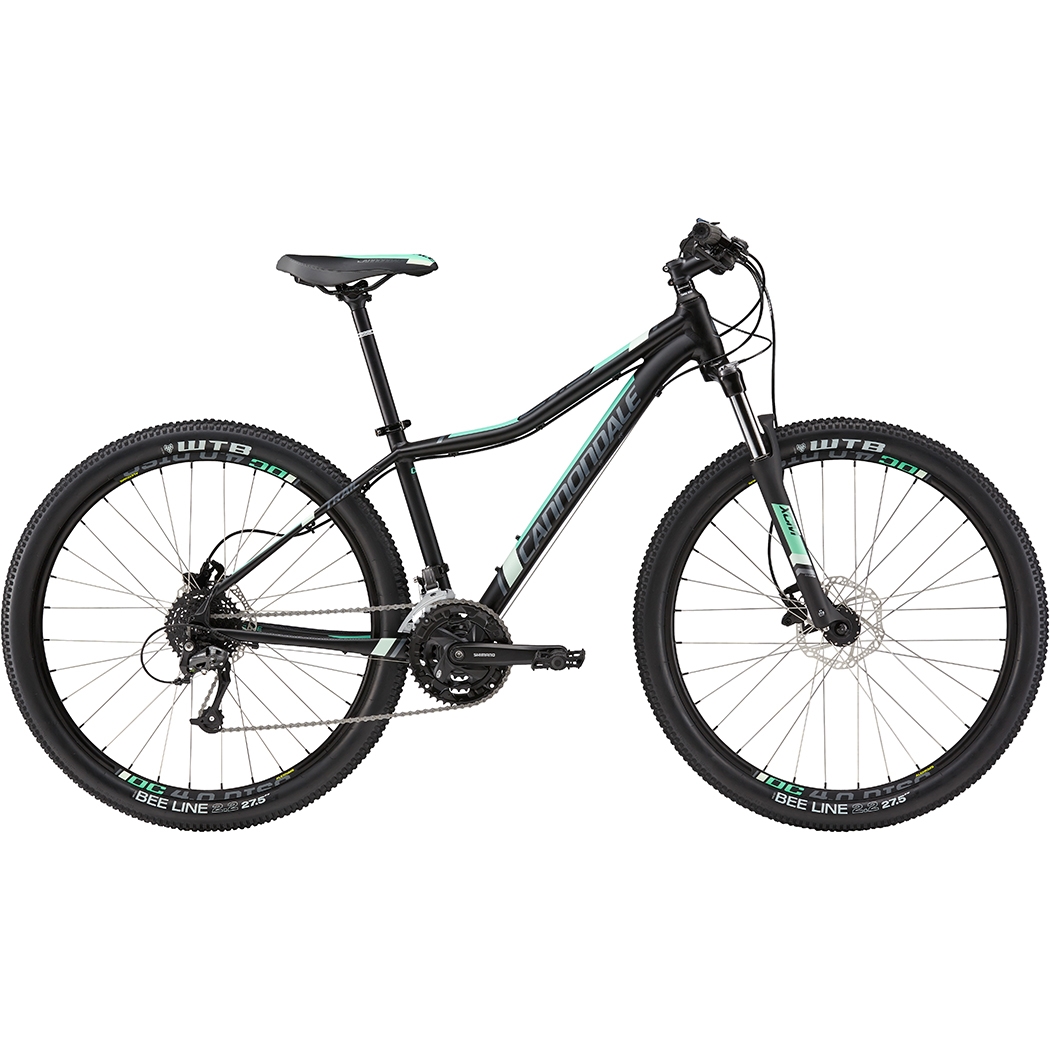

Cannondale Trail 27,5 Womens 5 Bbq
Cannondale high-performance at an affordable price. Their incredible performance and value make the light, smooth Tango bikes the perfect entry point into the world of mountain biking.
>Light and strong thanks to Cannondale's advanced alloy construction.
>A comfortable high-performance ride due to SAVE technologies and size-specific suspension.
>27.5" (650b) wheels for great fit and easy handling.
For experienced riders looking for an affordable upgrade, or new riders looking for a performance head start.
Cykelvikt M 13,95 kg
Ram Tango 27.5, Optimized 6061 alloy, SAVE, 1 1/8" headtube
Gaffel eller ev. stötdämpare fram SR Suntour XCM, 80mm, size-specific coil spring, remote lockout, 1-1/8", 27.5"
Vevparti Shimano M371, 44/32/22
Vevlager Tange Cartridge
Växelreglage Shimano Altus
Kassett eller ev. drev bak SunRace, 11-34, 9-speed
Kedja Shimano HG53, 9-speed
Växelförare fram Shimano Altus, 31.8 clamp
Växelförare bak Shimano Acera
Fälgar Alex DC 4.0 27, double wall, 32-hole
Nav Cannondale C4 Disc
Däck Fram WTB Bee Line, 27.5X2.0"
Pedaler Cannondale Platform
Bromsar s Hayes Dyno Sport hydraulic disc, 180/160mm
Styre Cannondale C4 flat, 6061 alloy, 640mm
Styrstolpe eller ev. styrstam Cannondale C4, 31.8, 7 deg.
Styrlager Tange Si, 1-1/8"
Bromshandtag Hayes Dyno Sport hydraulic
Ekrar Stainless Steel, 14g
Handtag eller ev. linda Cannondale Dual-Density
Sadel Cannondale Women's Ergo XC
Sadelstolpe Cannondale C4, 6061 alloy, 27.2
Sizes SM MD TL
Seat tube length (cm/in) 35.0/13.8 40.0/15.7 45.0/17.7
Top tube length horizontal (cm/in) 54.5/21.5 57.0/22.4 59.5/23.4
Top tube length actual (cm/in) 53.1/20.9 54.9/21.6 57.1/22.5
Head tube angle (degrees) 70.0° H H
Seat tube angle (degrees) 73.5° H H
Stand over height * (cm/in) 35.2/13.8 38.8/15.3 41.1/16.2
Head tube length (cm/in) 9.0/3.5 10.3/4.1 11.5/4.5
Wheel base (cm/in) 104.9/41.3 107.5/42.3 110.1/43.3
Front center (cm/in) 61.8/24.3 64.4/25.3 66.9/26.3
Chain stay length (cm/in) 43.5/17.1 H H
Bottom bracket drop (cm/in) 4.3/1.7 H H
Bottom bracket height (cm/in) 31.4/12.4 H H
Fork rake (cm/in) 4.5/1.8 H H
Trail (cm/in) 8.2/3.2 H H
Stack (cm/in) 57.6/22.7 58.9/23.2 60.0/23.6
Reach (cm/in) 37.4/14.7 39.6/15.6 41.7/16.4
Designed for a women’s proportions, the Tango comes in smaller sizes, with shorter top tubes and size specific headtube lengths.
27.5" (650b) Wheels
27.5" wheels are a perfect choice for smaller riders. They bring some of the roll-over-anything capabilities and traction of 29" wheels, but reduce toe-overlap and fitting issues on smaller frames.
Optimized seat stay and chain stay shaping provides vertical compliance for a more comfortable ride with no loss in lateral rigidity.
Because ride feel and suspension are key to enjoyment, we’ve engineered size-specific springs so that the forks on each individual size are better suited to each rider and have a consistent response throughout the range.
Trademark double-pass smooth welds showcase Cannondale’s aluminum frame mastery. Since we don’t patch fill with putty and paint, our process eliminates the stress-risers and weak points found on traditionally welded frames, enabling us to build lighter, stronger frames ever ywhere in the line.
