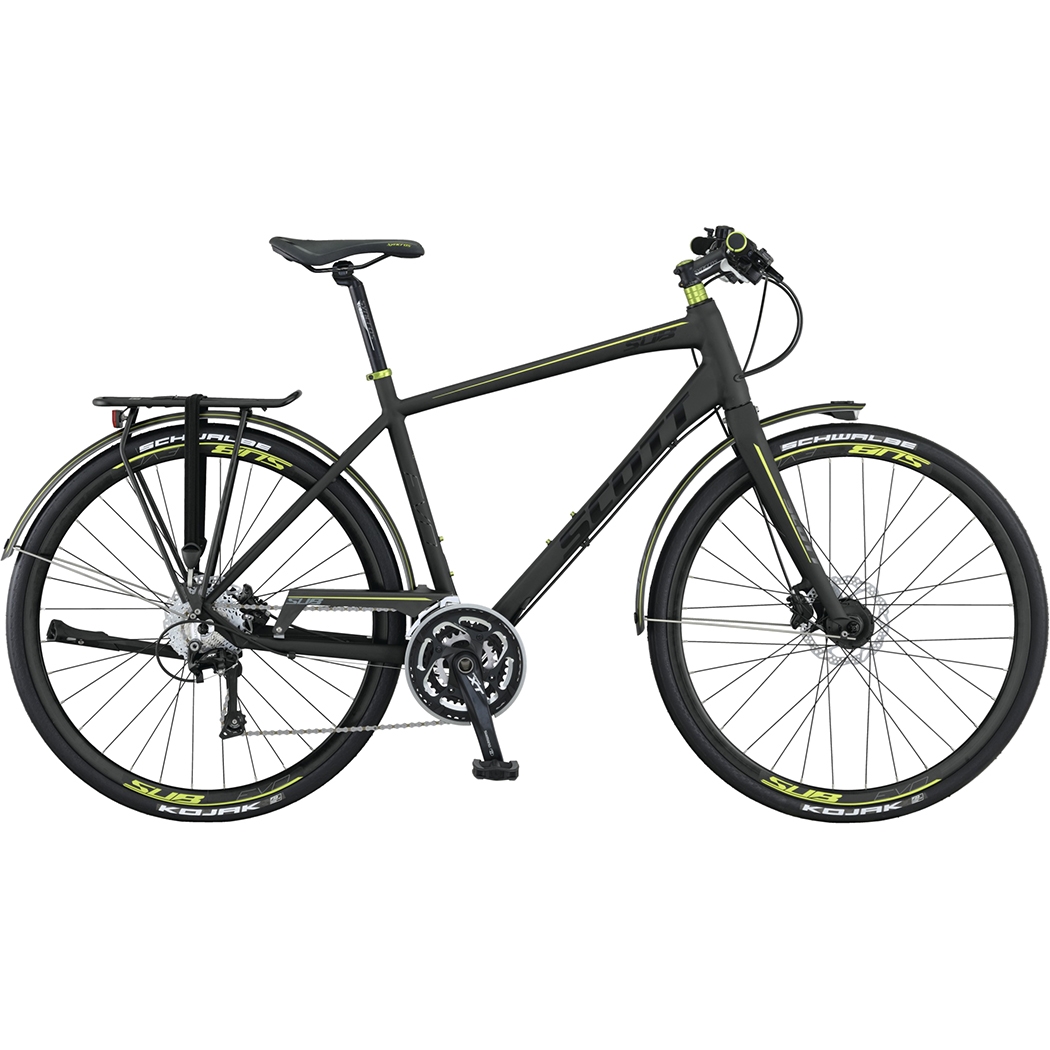

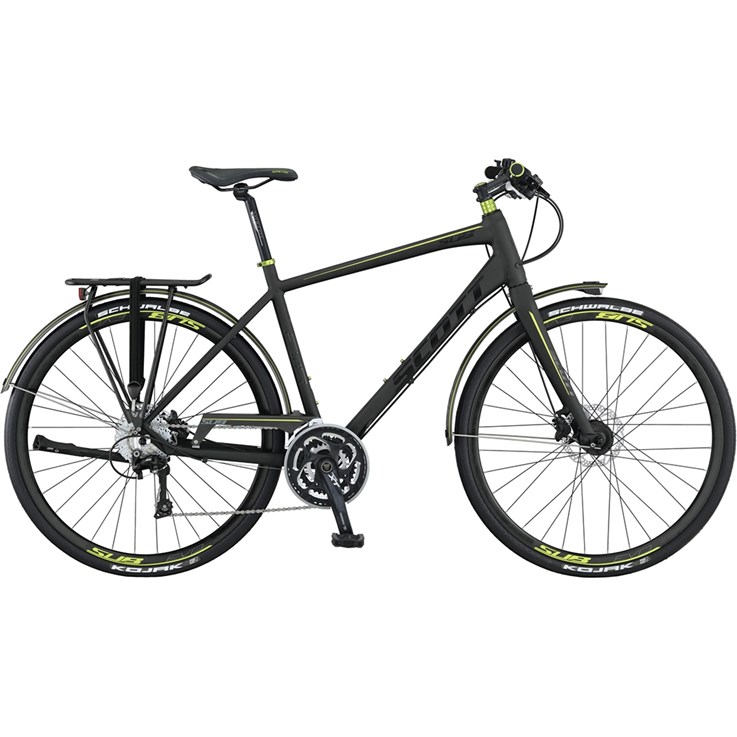

Scott Sub Evo 20

The SCOTT SUB Evo 20 features a sporty trekking geometry that suits trips of all distances. Equipped with a Shimano 30 speed transmission, integrated front and rear lights, a custom Racktime carrier and compatibility with Snap'it accessories, this bike is begging to go on an adventure.

Cykelspecifikationer
Ram SUB Evo 6061 Smooth welding
Gaffel eller ev. stötdämpare fram Sub Evo Alu Rigid Forged
Styrlager VP-A41AC Semi integrated
Växelförare bak Shimano RD-T780 SGS 10 Speed
Växelförare fram Shimano FD-T780
Växelhandtag Shimano SL-T780
Bromshandtag Shimano BL-M355
Bromsar Shimano BR-M355
Vevparti Shimano FC-T781 48x36x26 T
Vevlager Included with crankset
Styre Syncros Flat Bar HL MTB-300 UC3.0
Styrstam Syncros HL TDS-D5078 UC3.0
Pedaler SP-823
Sadelstolpe Syncros HL SPC-212 UC3.0
Sadel Syncros Urban Solution 2.5
Nav fram Shimano XT DHT7851DB Dynamo 32h
Nav bak Shimano FH-M615 CL 32h
Kedja Shimano HG54
Kassett eller ev. drev bak Shimano HG81 11-34 T
Ekrar Pillar Steel 14G
Fälgar Mach 1 560 Disc, 32h
Däck Schwalbe Kojak
Belysning Integrated Busch & Müller
Pakethållare och skärmar Racktime Standit w/ spring clamp Curana C-lite D45 with integrated Front and Rear Light
Vikt i kg 13.80kg
Vikt i lbs 30.42lbs

Ramgeometri
S M L XL
Head tube angle 70.0 ° 70.0 ° 70.0 ° 70.0 °
Head tube length 185.0 mm 185.0 mm 185.0 mm 205.0 mm
Top tube horizontal 580.0 mm 595.0 mm 605.0 mm 615.0 mm
Standover height
Bottom bracket offset -65.0 mm -65.0 mm -65.0 mm -65.0 mm
Bottom bracket height 285.0 mm 285.0 mm 285.0 mm 285.0 mm
Wheel base 1,101.7 mm 1,116.7 mm 1,126.7 mm 1,126.2 mm
Bottom bracket center to toptube center 410.0 mm 450.0 mm 490.0 mm 530.0 mm
Bottom bracket center to top of seattube 480.0 mm 520.0 mm 560.0 mm 600.0 mm
Seat angle 73.0 ° 73.0 ° 73.0 ° 73.0 °
Chainstay 455.0 mm 455.0 mm 455.0 mm 455.0 mm
Reach
Stack
Stem length 80.0 mm 90.0 mm 100.0 mm 110.0 mm
