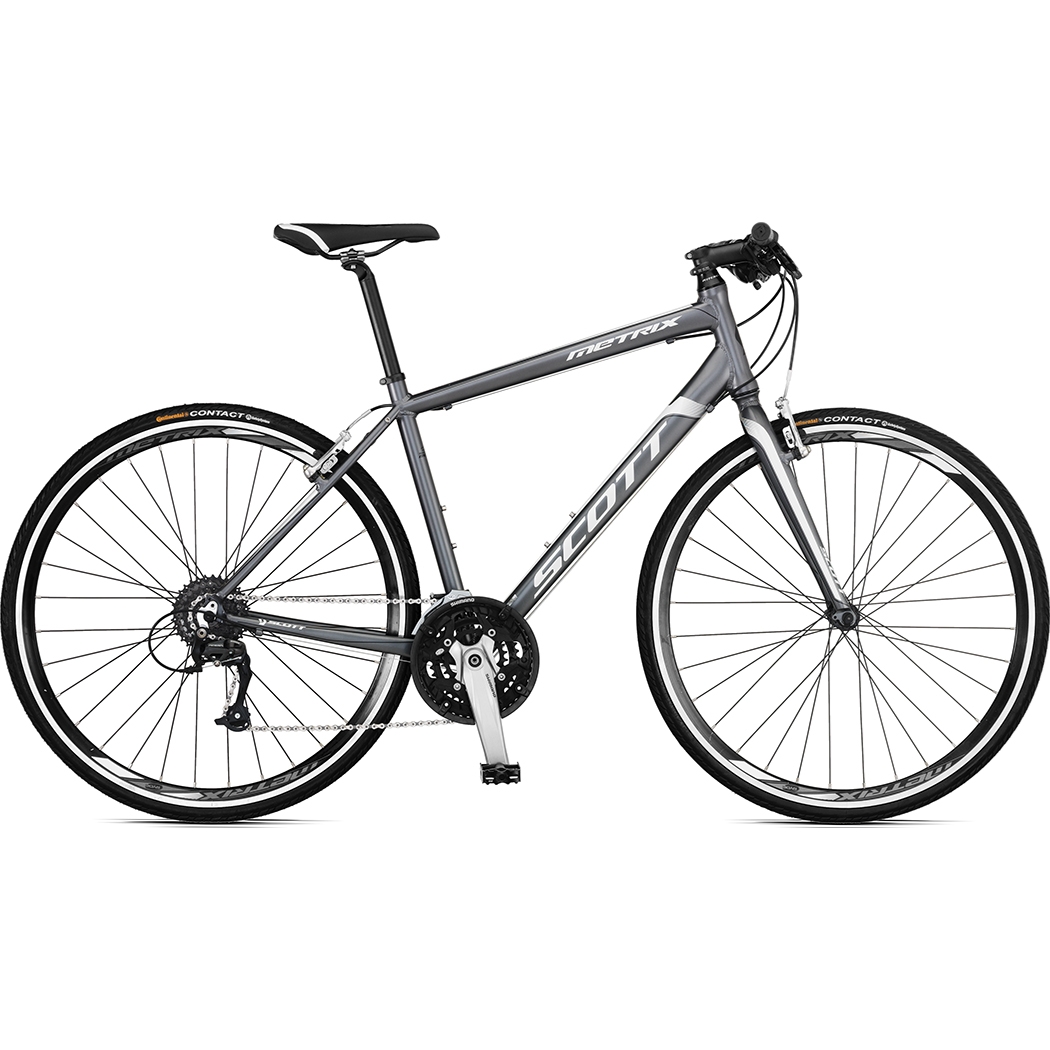

Scott Metrix 30

Comfortable and fast Flat Bar specific road geometry

Specifikationsnyheter
New Syncros ergonomic grips for more comfortable ride

Cykelspecifikationer
Ram Metrix V brake, 6061 Alloy, FlatBar specific Geometry
Gaffel eller ev. stötdämpare fram Metrix Alloy
Styrlager Ritchey OE Logic Zero, semi integrated
Växelförare bak Shimano Acera RD-M390, 27 Speed
Växelförare fram Shimano Acera FD-M390
Växelhandtag Shimano SL-M390
Bromshandtag Scott Comp
Bromsar Tektro RX1
Vevparti Shimano FC-M391, 48x36x26T, w/ chainguard
Vevlager Shimano BB-ES 25 / 68-126mm
Styre Metrix T shape Flat, 600 mm / 9° bend,
Styrstam JD-ST58 A (31,8mm)
Pedaler Wellgo 127 S
Sadelstolpe Alloy 31.6mm
Sadel Scott SC-19
Nav fram Formula FM-21
Nav bak Shimano FH-RM 30
Kedja KMC X-9
Kassett eller ev. drev bak Shimano CS-HG30, 11-32T
Ekrar stainless black, 15G/2mm
Fälgar Ryde DP 2000 700C, 32H, cnc
Däck Schwalbe Road Cruiser, 700 x 32C
Vikt 11.8 kg / 25.99 lbs

Ramgeometri
XS S M L XL
Head tube angle 71.0° 71.5° 72.0° 72.5° 73.0°
Head tube length 135 mm 5.3 in 155 mm 6.1 in 180 mm 7.1 in 205 mm 8.1 in 235 mm 9.3 in
Top tube horizontal 545 mm 21.5 in 555 mm 0.0 in 565 mm 0.0 in 580 mm 0.0 in 600 mm 0.0 in
Top tube length actual 509 mm 20.0 in 518 mm 20.4 in 535 mm 21.1 in 556 mm 21.9 in 573 mm 22.6 in
Seat tube angle 75.0° 74.5° 74.0° 73.5° 73.0°
Bottom bracket center to top of seattube 400 mm 15.7 in 450 mm 17.7 in 480 mm 18.9 in 510 mm 20.1 in 560 mm 22.0 in
Bottom bracket center to toptube center 343 mm 13.5 in 394 mm 15.5 in 424 mm 16.7 in 455 mm 17.9 in 505 mm 19.9 in
Chainstay length 435 mm 17.1 in 435 mm 17.1 in 435 mm 17.1 in 435 mm 17.1 in 435 mm 17.1 in
Bottom bracket offset -75 mm -3.0 in -75 mm -3.0 in -70 mm -2.8 in -70 mm -2.8 in -70 mm -2.8 in
Bottom bracket height 275 mm 10.8 in 275 mm 10.8 in 280 mm 11.0 in 280 mm 11.0 in 280 mm 11.0 in
Standover height 786 mm 30.9 in 825 mm 32.5 in 851 mm 33.5 in 879 mm 34.6 in 921 mm 36.3 in
Wheel base 1020 mm 40.2 in 1026 mm 40.4 in 1038 mm 40.9 in 1053 mm 41.5 in 1061 mm 41.8 in
Reach 368 mm 14.5 in 372 mm 14.6 in 380 mm 15.0 in 392 mm 15.4 in 396 mm 15.6 in
Stack 568 mm 22.4 in 589 mm 23.2 in 610 mm 24.0 in 635 mm 25.0 in 666 mm 26.2 in
Stem length 90 mm 90 mm 100 mm 100 mm 100 mm
