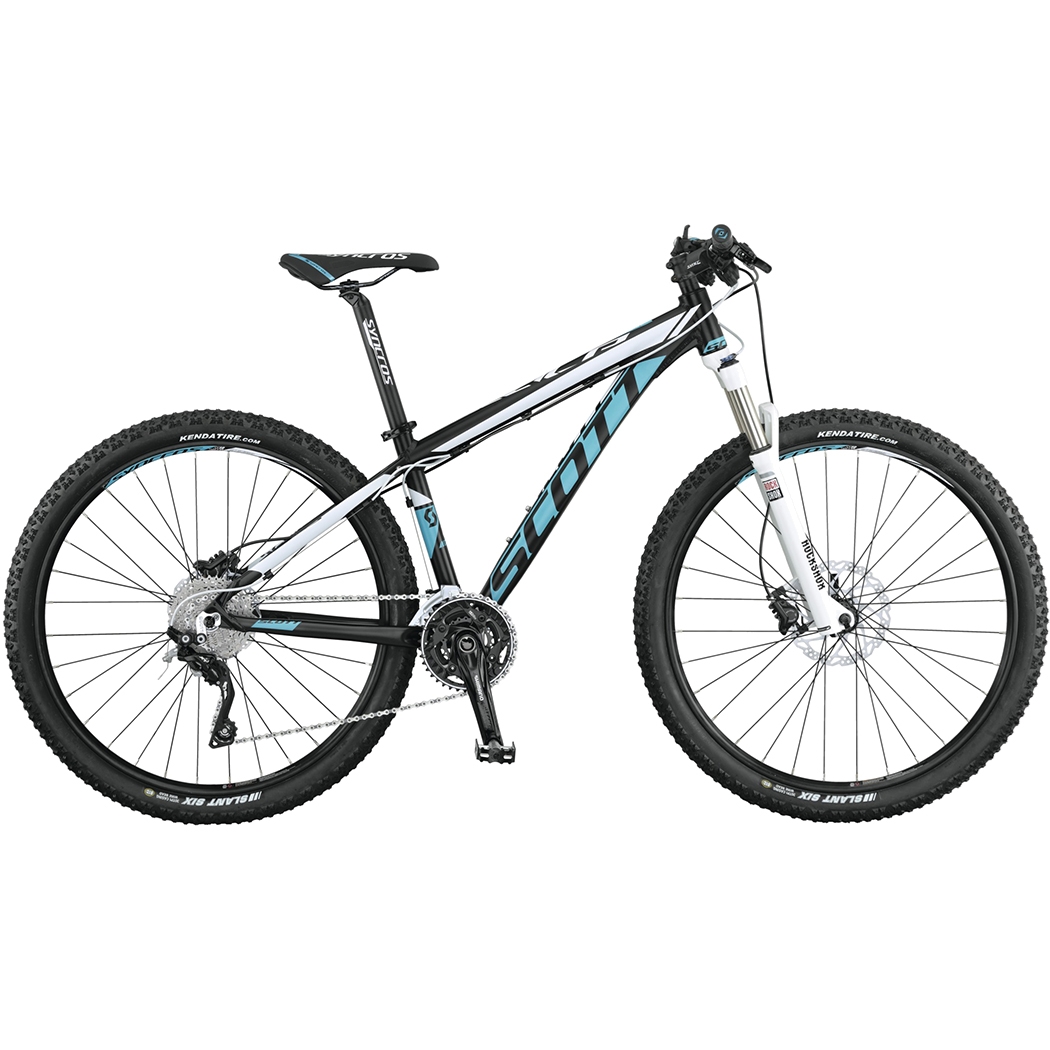

Scott Contessa Scale 710

The SCOTT Contessa Scale 710 features a super light Alloy Frame with Contessa Solution Geometry. The series comes fully equipped with a Rock Shox XC30, along with our PopLoc lockout technology to allow for mulitiple travel settings to always optimize your ride. Available in the 27.5" wheel size.

Cykelspecifikationer
Ram Contessa Race 700 series / 6061 Alloy D.B. / Solution geometry
Gaffel eller ev. stötdämpare fram Rock Shox XC30 TK 27.5" Solo Air, Alloy steerer Pop loc lockout reb. Adj. / 100mm travel
Gaffel övrigt Rock Shox Poploc lever
Styrlager Ritchey OE 1 1/8" semi integrated 44/50mm
Växelförare bak Shimano XT RD-M781 SGS Shadow Type / 30 Speed
Växelförare fram Shimano Deore FD-M61010 / 34.9mm
Växelhandtag Shimano Deore SL-M61010 Rapidfire plus / 2 way release w/gear indicator
Bromshandtag Shimano BL-M445 Disc
Bromsar Shimano BR-M447 hydr. disc 180F/160Rmm SM-RT54 CL Rotor
Vevparti Shimano FC-M622 2-piece Design 40Ax30Ax22 T
Vevlager Shimano Cartridge 68mm shell
Styre Syncros M3.0 Tbar 9° BS / 680mm
Styrstam Syncros M3.0 TDS-D507A 31.8mm
Pedaler Wellgo M-248DU
Sadelstolpe Syncros M3.0 / 31.6mm
Sadel Contessa Sport
Nav fram Formula CL51
Nav bak Shimano FH-RM 66-CL
Kedja KMC X10
Kassett eller ev. drev bak Shimano CS-HG5010 11-36 T
Ekrar 14 G, Stainless Black
Fälgar Syncros X-37 Disc 32H, black
Däck Kenda Slant 6 27.5 × 2.1 / 30TPI
Vikt i kg 12.80kg
Vikt i lbs 28.22lbs

Ramgeometri
S M L XL
Head tube angle 69.0 ° 69.0 ° 69.0 ° 69.0 °
Head tube length 100.0 mm 100.0 mm 115.0 mm 125.0 mm
Top tube horizontal 575.0 mm 600.0 mm 625.0 mm 650.0 mm
Standover height 728.9 mm 758.0 mm 786.8 mm 819.7 mm
Bottom bracket offset -44.0 mm -44.0 mm -44.0 mm -44.0 mm
Bottom bracket height 307.5 mm 307.5 mm 307.5 mm 307.5 mm
Wheel base 1,075.2 mm 1,100.2 mm 1,126.3 mm 1,152.0 mm
Bottom bracket center to toptube center 315.8 mm 369.3 mm 409.3 mm 458.2 mm
Bottom bracket center to top of seattube 390.0 mm 440.0 mm 480.0 mm 530.0 mm
Seat angle 73.0 ° 73.0 ° 73.0 ° 73.0 °
Chainstay 427.0 mm 427.0 mm 427.0 mm 427.0 mm
Reach 398.1 mm 423.1 mm 443.8 mm 466.0 mm
Stack 578.6 mm 578.6 mm 592.6 mm 601.9 mm
Stem length 70.0 mm 80.0 mm 90.0 mm 100.0 mm

Beskrivning av utvalda cykelegenskaper
27.5 wheels
When discussing the pros and cons of the big wheeled bikes, shorter riders find themselves in an ambivalent situation. They want to benefit from the 29” wheels, but suffer from the negative effects when fit is considered. Additionally, the increase in rotational weight challenges many lower watt producing riders, so the performance gains are negated when the rider cannot accelerate the wheel system as quickly. The solution for many riders is 27,5”. The new wheelsize standard combines the best of both worlds, 29” and 26”.

>Increased Roll-Over
>Increased Momentum
>Increased Traction
>Less rotational weight than 29”
>More Agile than 29”
>More suspension travel options
>Short chain stays
>Balanced Stability and Performance
>Geometry closer 26”
>Great balance of Agility and Momentum

Tapered headtube
The Scale and Spark feature a tapered head tube for increased stiffness, safety, confidence, and control.

IDS SL dropout system
Interchangeable and lightweight, the IDS-SL dropout system works with 142x12mm, 135x12mm and 135x5mm QR rear axle standards. Shred the turns more aggressively and with enhanced control, thanks to a laterally stiff rear end.

Direct post mount
We've saved even more weight by eliminating bulky brake hardware for mounting the rear caliper and integrated a direct post mount to the chain stay. This mounting position also decreases the load the brakes apply to the swingarm parts.
