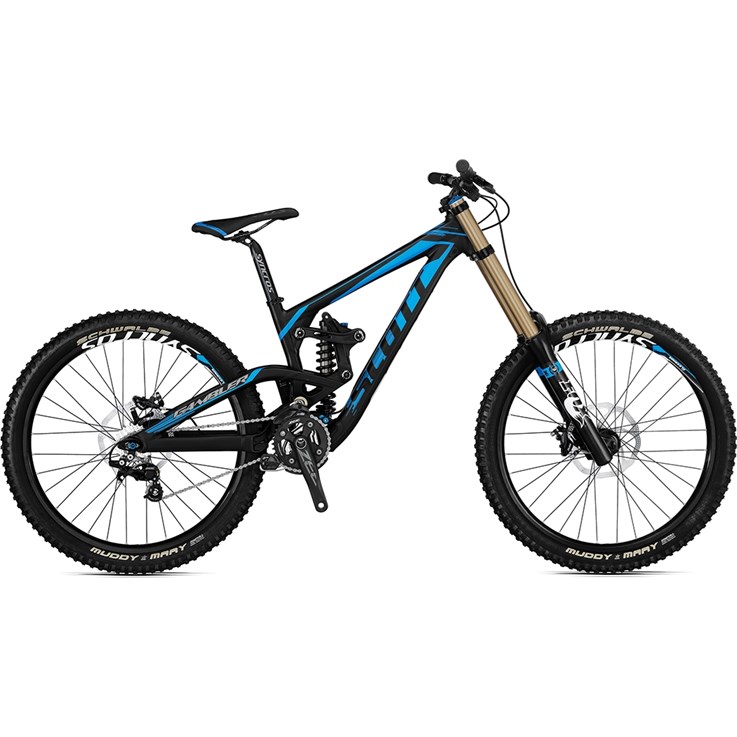

Scott Gambler 20

SEK
Klicka för din storlek.
  • S
  • M
  • L
Visa storleksrekommendation.
Leverans.
från 0 kr
Läs mer.
Lager.
Ej i lager*
Läs mer.
Tillverkare.
Artikelnummer.
227917-S (S)
Övriga art.nr.
227917-M (M)
227917-L (L)
A no compromises DH weapon with custom race tuned Fox suspension and World Cup podium proven components. All the custom Word Cup options, like lower and slacker geometry, longer shock and tweaked leverage ratio, are now available to you.

Specifikationsnyheter
Brendan Fairclough approved geometry & suspension. Highlights are a low leverage ratio suspension system based around a 10.5” shock and a floating linkage. The centered mass and low center of gravity enable quick direction changes and stability in corners, Syncros DH components

Cykelspecifikationer
Ram Gambler Alloy 6061, Hydroformed custom butted, PF BB107 / IDS X 12 x150mm Dropout, BB height and chainstay length adjustable, ISCG05 / 210mm rear travel
Gaffel eller ev. stötdämpare fram Fox 40 O/V Performance 203mm travel / Coil, preload adj. / Reb adj, , 20mm thru axle / alloy steerer
Stötdämpare bak Fox VAN RC Coil, Rebound and compression adj. custom tuned / 267 x 89mm, spring rates S 250 / M 300 / L 350
Styrlager Syncros DH, semi integrated straight / with adj +-1° or +-2° cups, ID 49.6mm / OD 55mm
Växelförare bak Shimano Zee RD-M640-SS , short cage / 10 Speed
Kedja GUIDE E.thirteen LG-1 ISCG05 w/Taco
Växelhandtag Shimano Zee SL-M640, Rapidfire Plus / 2 way release
Bromshandtag Avid Elixir 5 Disc
Bromsar Avid Elixir 5 Disc , 200mm F + R HS1 Rotor
Vevparti Shimano Zee FC-M645, 36T alloy chainring, 165mm
Vevlager Shimano SM-BB71-41A / shell 41x104.5mm
Styre Syncros DH 1.5, 7075 D.B / 20mm rise / 800mm, Syncros Pro DH dual lock on grips
Styrstam Syncros DH1.5, Direct Mount / 42-47mm ext.
Pedaler nil
Sadelstolpe Syncros FL2.5 / 31.6mm
Sadel Syncros DH 2.5
Nav fram Formula DH-92 20mm thru axle,
Nav bak Formula DHL-150 / 12mm thru axle, 150mm wide / sealed bearings
Kedja Shimano CN-HG54
Kassett eller ev. drev bak Shimano CS-4600, 11-25 T DH cassette
Ekrar DT Swiss Industry black
Fälgar Syncros FR 32 Disc, 32H
Däck Schwalbe Downhill Evolution Line, front: Muddy Mary 26 x2.35 Vertstar, rear: Muddy Mary 26 x 2.35 Trailstar , Triple Nano Compound / Wire Bead, 2-ply DH casing,, Snake Bite Protection / 67EPI
Vikt 18.3 kg / 40.31 lbs

Ramgeometri
S S M M L L
Position low Position high Position low Position high Position low Position high
Fork rake 42.0 mm 1.7 in 42.0 mm 1.7 in 42.0 mm 1.7 in 42.0 mm 1.7 in 42.0 mm 1.7 in 42.0 mm 1.7 in
Head tube angle 62.0° 62.7° 62.0° 62.7° 62.0° 62.7°
Head tube length 115.0 mm 4.5 in 115.0 mm 4.5 in 115.0 mm 4.5 in 115.0 mm 4.5 in 115.0 mm 4.5 in 115.0 mm 4.5 in
Top tube horizontal 525.0 mm 22.7 in 522.0 mm 20.6 in 550.0 mm 21.7 in 547.0 mm 21.5 in 584.5 mm 23.0 in 582.0 mm 22.9 in
Seat tube angle 75.6° 76.5° 75.6° 76.5° 75.6° 76.5°
Bottom bracket center to top of seattube 370.0 mm 14.6 in 370.0 mm 14.6 in 370.0 mm 14.6 in 370.0 mm 14.6 in 370.0 mm 14.6 in 370 mm 14.6 in
Chainstay length 425 mm 16.7 in 421.5 mm 16.6 in 425 mm 16.7 in 421.5 mm 16.6 in 425 mm 16.7 in 421.5 mm 16.6 in
440 mm 17.3 in 436.5 mm 17.2 in 440 mm 17.3 in 436.5 mm 17.2 in 440 mm 17.3 in 436.5 mm 17.2 in
Bottom bracket offset 0.0 mm 0.0 in + 9.5 mm 0.4 in 0.0 mm 0.0 in + 9.5 mm 0.4 in 0.0 mm 0.0 in + 9.5 mm 0.4 in
Bottom bracket height 345.0 mm 13.6 in 354.5 mm 14.0 in 345.0 mm 13.6 in 354.5 mm 14.0 in 345.0 mm 13.6 in 354.5 mm 14.0 in
Standover height 762.6 mm 30.0 in 767.6 mm 30.2 in 758.0 mm 29.8 in 763.5 mm 30.1 in 754.0 mm 29.7 in 760.0 mm 29.9 in
Wheel base 1160 mm 45.7 in 1156 mm 45.5 in 1185 mm 46.7 in 1181 mm 46.5 in 1210 mm 47.6 in 1206 mm 47.5 in
1175 mm 46.3 in 1171 mm 46.1 in 1200 mm 47.2 in 1196 mm 47.1 in 1225 mm 48.2 in 1221 mm 48.1 in
Reach 374.0 mm 14.7 in 381.5 mm 15.0 in 399.0 mm 15.7 in 406.0 mm 16.0 in 434.0 mm 17.1 in 441.0 mm 17.4 in
Stack 589.0 mm 23.2 in 593.0 mm 23.3 in 589.0 mm 23.2 in 593.0 mm 23.3 in 589.0 mm 23.2 in 593.0 mm 23.3 in
