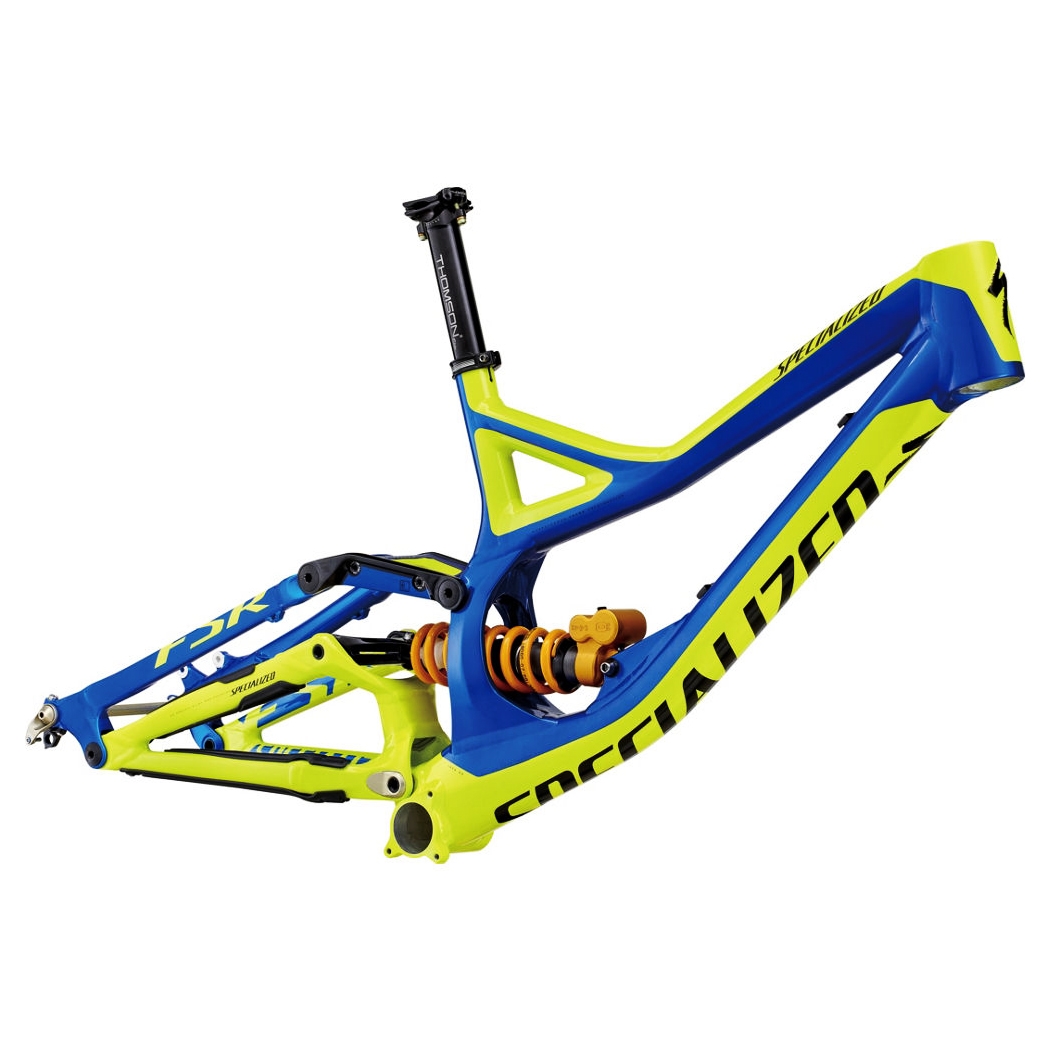

Specialized Demo 8 FSR Bara Ram (Frameset) Indigoblå/Gul

Cykelbeskrivning

The Demo 8 has multiple Downhill World Championships to its name, build up your own race machine with this frameset. With 200mm of rear wheel travel, FSR suspension, ground breaking Öhlins TTX22M shock, and 1.5" head tube, it's a force to be reckoned with.

>Manipulated M5 alloy FSR frame has 200mm of rear wheel travel; an oversized, alloy link, forged head tube; rear derailleur protector, with suspension linkage engineered for the world's toughest terrain.
>In a groundbreaking partnership, Specialized and Öhlins suspension have teamed up to develop the best performing bike and shock combination. The TTX22M shock uses Öhlins patented twin-tube design to separate compression from rebound.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

M5 manipulated alloy, 1.5" forged headtube, 150mm rear spacing, compact race design, ISCG '05 mount, cartridge bearing rear shock mount, rear derailleur protector, 200mm travel

SWAT (Storage, water, air and tools)

Stötdämpare bak

Custom Õhlins TTX22M, coil over w/ piggy back, spherical bearing mount, high/low speed comp, reb adj., 9.5x3.0", Spring Rate XS: 297lb, S:343lb, M:388, L:434lb

Gaffel eller ev. stötdämpare fram

Styrlager

1-1/2" integrated for 1-1/8" steerer, cartridge bearings

Styrstolpe eller ev. styrstam

Styre

Handtag

Bromsar fram

Bromsar bak

Bromshandtag

Växelförare fram

Växelförare bak

Växelreglage

Kassett eller ev. drev bak

Kedja

Vevparti

Vevparti utväxling

Vevlager

SRAM PF30 to BSA 83mm adapter

Pedaler

Fälgar

Nav fram

Nav bak

Ekrar

Däck fram

Däck bak

Innerslang

Sadel

Sadelstolpe

Thomson alloy straight w/ 12-degree clamp, 367mm

Sadelstolpsklämma

Specialized 7050 hard anodized alloy, single bolt, 34.9mm

Övrigt

Ramgeometri

Frame size

XS S M L.

Bottom bracket height high setting

353mm 353mm 353mm 353mm.

Bottom bracket height low setting

343mm 343mm 343mm 343mm.

Chainstay length

421mm 421mm 421mm 421mm.

Crank length

165mm 165mm 165mm 165mm.

Ground to top

936mm 936mm 936mm 936mm.

Handlebar width

750mm 750mm 750mm 750mm.

Head tube angle high setting

64.8° 64.8° 64.8° 64.8°.

Head tube angle low setting

64° 64° 64° 64°.

Head tube height

112mm 112mm 112mm 112mm.

Reach

390mm 410mm 430mm 447mm.

Seat tube angle actual high setting

62.8° 62.8° 62.8° 62.8°.

Seat tube angle actual low setting

62° 62° 62° 62°.

Seat tube angle effective

- High Setting 76.8° 76.8° 76.8° 76.8°.

Seat tube angle effective low setting

76° 76° 76° 76°.

Seat tube length center to top

394mm 394mm 419mm 458mm.

Seatpost length

300mm 300mm 300mm 300mm.

Stack

593mm 593mm 593mm 593mm.

Standover height

717mm 717mm 722mm 731mm.

Stem length

45mm 45mm 45mm 45mm.

Top tube length actual

485mm 504mm 517mm 530mm.

Top tube length horizontal

540mm 560mm 580mm 597mm.

Wheel base

1151mm 1171mm 1191mm 1208mm.
