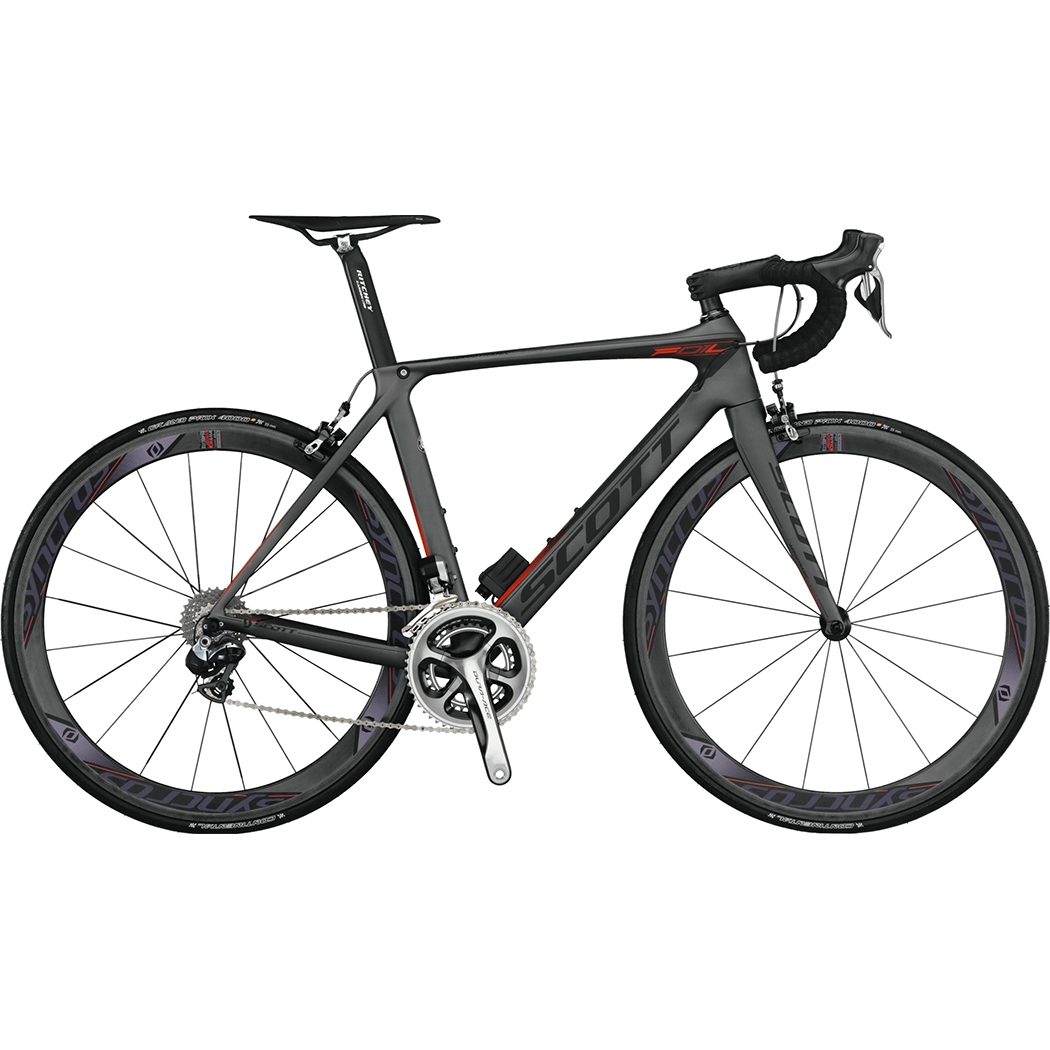

Scott Foil Premium CD22 (Compact Double 22 Växlar)

Super light and stiff FOIL Aero Frame and Fork (840/340 gr.), Shimano DI2 11 Speed, Syncros RR1.0 Carbon Clincher Wheelset

Specifikationsnyheter
Shimano Dura Ace DI2 11 Speed, Syncros RR1.0 Carbon Clincher Wheelset, Ritchey C260 Carbon Stem

Cykelspecifikationer
Ram Scott FOIL HMX NET, IMP Carbon Tech, F01 AERO Tech, Road Race geometry, Replaceable Dropout, STD Seattube / INT BB
Gaffel eller ev. stötdämpare fram Scott FOIL HMX NET, 1 1/8 " - 1 1/4" Carbon steerer, Integrated Carbon Dropout
Styrlager Ritchey WCS Integrated
Växelförare bak Shimano Dura-Ace RD-9070, 22 Speed Electronic
Växelförare fram Shimano Dura-Ace FD-9070, Eletronic Shift System
Växelhandtag Shimano Dura-Ace ST-9070, 22 Speed Electronic Shift,
Bromshandtag -
Bromsar Shimano Dura-Ace BR-9000, Super SLR Dual pivot
Vevparti 22-Speed: Shimano Dura-Ace FC-9000, Hollowtech II 34/50 T
Vevlager INT Dura Ace SM-BB9141
Styre Ritchey WCS Carbon EVO Curve , 31.8 Carbon Oversize Anatomic,
Styrstam Ritchey C260 Carbon Superlogic, OS 1-1/8" four Bolt
Pedaler nil
Sadelstolpe RITCHEY FOIL AERO WCS CARBON
Sadel FIZIK Arione 00 Carbon
Nav fram SYNCROS RR1.0
Nav bak SYNCROS RR1.0
Kedja Shimano Dura Ace CN-9000
Kassett eller ev. drev bak Shimano Dura - Ace CS-9000, 11-28 T
Ekrar SYNCROS RR1.0
Fälgar SYNCROS RR 1.0 CARBON CLINCHER, 16 Front / 20 Rear
Däck Continental , Grand Prix 4000, 700 x 23
Vikt 6.50 kg / 14.33 lbs

Ramgeometri
XXS/47 XS/49 S/52 M/54 L/56 XL/58 XXL/61
Head tube angle 70.5° 71.0° 72.0° 73.0° 73.0° 73.3° 73.3°
Head tube length 100 mm 3.9 in 105 mm 4.1 in 120 mm 4.7 in 140 mm 5.5 in 160 mm 6.3 in 180 mm 7.1 in 200 mm 7.9 in
Top tube horizontal 510 mm 20.1 in 520 mm 20.5 in 535 mm 21.1 in 550 mm 21.7 in 565 mm 22.2 in 580 mm 22.8 in 595 mm 23.4 in
Seat tube angle 74.5° 74.5° 74.0° 73.3° 73.3° 73.0° 72.5°
Bottom bracket center to toptube center 410 mm 16.1 in 430 mm 16.9 in 460 mm 18.1 in 480 mm 18.9 in 500 mm 19.7 in 520 mm 20.5 in 550 mm 21.7 in
Chainstay length 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in 405 mm 15.9 in
Bottom bracket offset -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in -67 mm -2.6 in
Standover height 717 mm 28.2 in 731 mm 28.8 in 755 mm 29.7 in 775 mm 30.5 in 794 mm 31.3 in 814 mm 32.0 in 838 mm 33.0 in
Wheel base 972 mm 38.3 in 978 mm 38.5 in 980 mm 38.6 in 979 mm 38.5 in 994 mm 39.1 in 1003 mm 39.5 in 1012 mm 39.8 in
Reach 371 mm 14.6 in 379 mm 14.9 in 384 mm 15.1 in 385 mm 15.2 in 394 mm 15.5 in 400 mm 15.7 in 403 mm 15.9 in
Stack 503 mm 19.8 in 509 mm 20.0 in 527 mm 20.7 in 549 mm 21.6 in 569 mm 22.4 in 589 mm 23.2 in 608 mm 23.9 in
Stem length 90 mm 100 mm 110 mm 110 mm 110 mm 120 mm 130 mm
