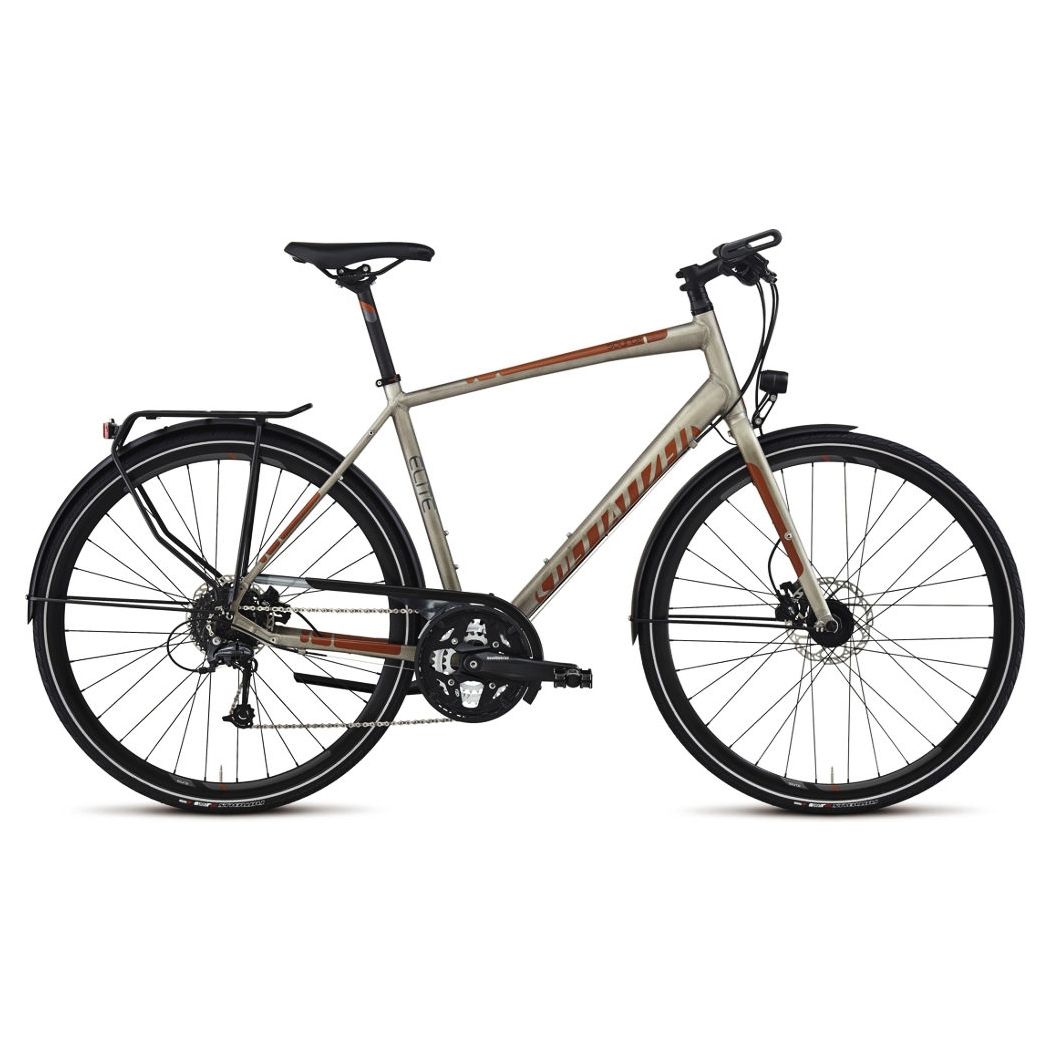

Specialized Source Elite Disc Materialfärg/Orange/Svart

Cykelbeskrivning

A true multi-tasker for anything from commuting to a weekend camping trek down the coast with loaded panniers, the Source Elite does it all anytime, anywhere with integrated lights, rack, and fenders; plus 9-speed Shimano Deore drivetrain for efficiency in any terrain.

>Light, A1 Premium Aluminum frame is built for high speed, low-fuss, and great versatility; with tapered head tube, rack/fender mounts, and wide tire clearance.
>Straight blade, alloy fork with fender mounts saves weight and adds durability to manage potholes and rough roads.
>BlackBelt protection and a grooved tread make the 32c Specialized Nimbus Sport tires with reflective strip perfect for city or open road use.
>Supernova E3 Pure 3 headlight supplies over 300 lumens of light, while a B&M Toplight Mini taillight to keeps you safe on the road, anytime. Both are powered by the Shimano dynamo hub.
>Super-light and compact Racktime hollow alloy rack with Racktime snap-in accessories system and hidden fender attachment; max load 25kg.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

Specialized A1 Premium Aluminum, fully manipulated tubing w/ smooth welds, integrated headset, w/ fender/rack eyelets, internal cable routing

SWAT (Storage, water, air and tools)

Stötdämpare bak

Gaffel eller ev. stötdämpare fram

Aluminum legs/crown, Cr-Mo steerer, 52mm fully integrated headset, fender/rack eyelets, internal light cable routing

Styrlager

1-1/8" sealed Cr-Mo bearings integrated w/ headset, 15mm alloy cone spacer, w/ 25mm of spacers

Styrstolpe eller ev. styrstam

3D forged alloy, 10-degree rise, 31.8mm

Styre

Specialized flat bar, 6061 double-butted alloy, 660mm wide, 10-degree backsweep, 31.8mm

Handtag

Body Geometry Targa, lock-on, closed end

Bromsar fram

Tektro Gemini, hydraulic disc, 160mm rotor

Bromsar bak

Tektro Gemini, hydraulic disc, 160mm rotor

Bromshandtag

Tektro Gemini, hydraulic lever

Växelförare fram

Shimano Acera

Växelförare bak

Shimano Deore. 9-speed

Växelreglage

Shimano Acera, 9-speed

Kassett eller ev. drev bak

Shimano HG-30, 9-speed, 11-34

Kedja

KMC X9

Vevparti

Shimano Alivio, Octalink, w/ chainguard

Vevparti utväxling

48/36/26

Vevlager

Shimano, Octalink spline, cartridge bearings, 68mm shell

Pedaler

Nylon body, alloy cage, toe clip capable

Fälgar

Disc, alloy double-wall, 32h

Nav fram

Shimano DH-3D35QR dynamo disc, QR, 32h

Nav bak

Disc, double-sealed, loose ball, ground race, dual-lock nuts w/ 19mm contact side, 5mm QR, 32h

Ekrar

Stainless, 14g

Däck fram

Specialized Nimbus Sport, 60TPI, wire bead, reflective, 700x32c

Däck bak

Specialized Nimbus Sport, 60TPI, wire bead, reflective, 700x32c

Innerslang

Standard presta valve

Sadel

Body Geometry Targa Sport, 155mm

Sadelstolpe

Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm

Sadelstolpsklämma

Forged alloy, 31.8mm

Belysning fram

Supernova E3 Pure3

Belysning bak

B&M Toplight Mini

Belysning strömkälla

Shimano DH-3N30QR, w/ QR, 32h

Kedjeskydd

Horn Catena 08, aluminum co-molded, w/ BB mount bracket

Stöd

Specialized aluminum

Pakethållare

Custom Racktime Light-it, hollow alloy, Snap-it accessory system, spring clip option, max. load 25kg

Skärmar

Specialized aluminum, w/ anodized struts

Lås

Ringklocka

Aluminum, mini

Övrigt

Ramgeometri

Frame size

SM MD LG XL.

Bottom bracket drop

70mm 70mm 70mm 70mm.

Chain stay length

445mm 445mm 445mm 445mm.

Crank length

170mm 175mm 175mm 175mm.

Fork rake

51mm 51mm 51mm 51mm.

Front to center

629mm 637mm 647mm 667mm.

Handle bar width

580mm 580mm 580mm 580mm.

Head tube angle

71° 71.5° 72° 72°.

Head tube length

150mm 165mm 190mm 225mm.

Seat post length

350mm 350mm 350mm 350mm.

Seat tube angle

73.25° 73.5° 73° 73°.

Seat tube length bottom bracket center to top

440mm 485mm 530mm 570mm.

Stand over height

750mm 786mm 821mm 859mm.

Stem length

90mm 90mm 100mm 100mm.

Top tube length horizontal

570mm 580mm 600mm 620mm.

Trail

67mm 63mm 60mm 60mm.

Wheel base

1065mm 1073mm 1082mm 1103mm.
