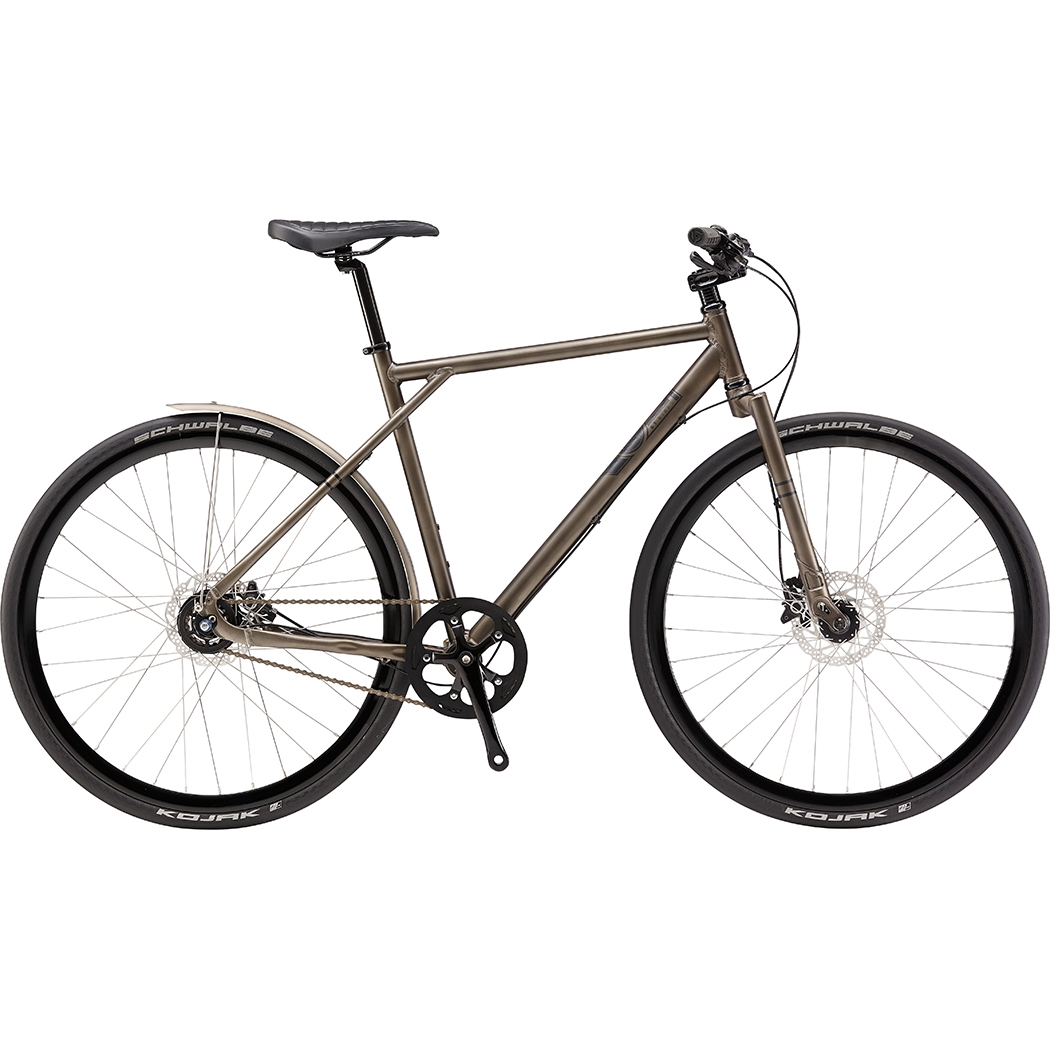

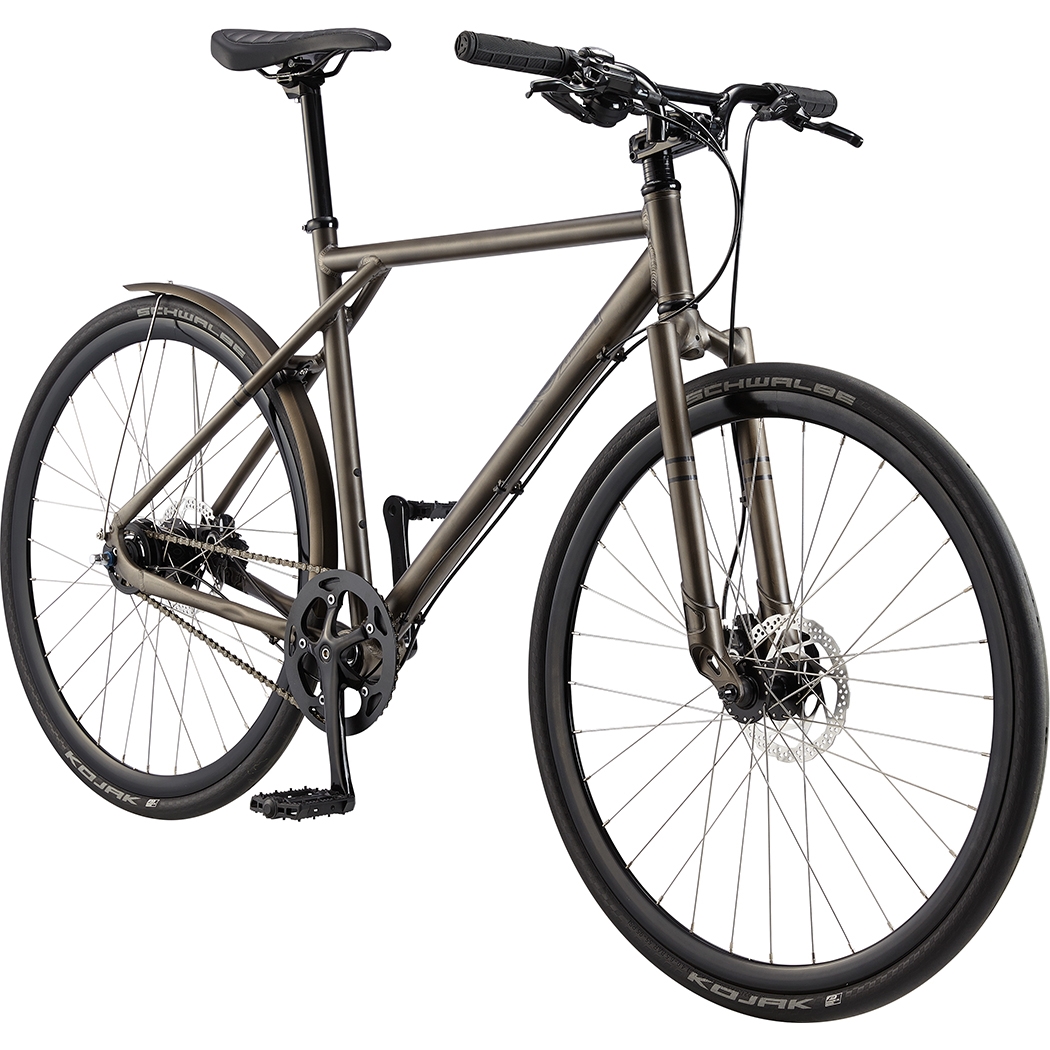

GT Eightball Matte Raw

There’s no denying the need for a certain “cool” factor needs to be met when it comes to choosing the perfect bike for all your urban adventures. And if you charge as hard through the city as you do through the rest of your life, then you need a bike that can handle the occasional curb hop or puddle jump. When you don’t want to sacrifice style points for quality builds, the GT Baller Series is the ride for you.

>GT Eightball Triple Triangle frame, vertical dropouts with replaceable derailleur hanger, Tektro eccentric BB, fender eyelets
>GT Tough Guy 6061 alloy steerer and legs, 700c disc specific
>Shimano Alfine 8spd internal rear hug with center lock, 18t cog and GT Baller crank with 46t alloy ring
>700 x 35c Schwalbe Kojak slick Tires
>Shimano Hydraulic disc brakes with 160mm rotors

Cykelspecifikationer
Storlek XS, S, M, L, XL
Färg Matte Raw
Ram GT Eightball Triple Triangle frame, Vert. Drop-outs with replaceable Derailleur hanger, Tektro eccentric BB, fender eyelets
Gaffel eller ev. stötdämpare fram GT Tough Guy 6061 alloy steerer, alloy legs 700c disc specific
Kedja KMC Z510
Vevparti GT Baller crank 46t alloy ring
Pedaler GT Nylon platforms
Växelhandtag Shimano Alfine 8
Kassett eller ev. drev bak Shimano Alfine 18t
Hjul GT Baller 30mm tall aero
Däck Schwalbe Kojak 700x35c slicks
Nav fram Formula Disc QR
Ekrar Stainless paint to match
Ekernipplar brass
Bromshandtag Shimano Hydrualic
Styre GT Cut Off Riser, 6061 alloy 30mm x 560mm
Styrstam GT BMX 3D forged
Handtag eller ev. styrlinda GT Wings
Styrlager Tange Seiki sealed Cartridge
Sadel GT
Sadelstolpe GT Alloy micro adjust
Sadelstolpsklämma GT

Ramgeometri
Size XXS XS S M L XL
Seat tube length(mm) 480 500 520 540 560 580
Horizontal top tube length(mm) 494 509 528 546 567 587
Stand over height(mm) 721 739 758 775 798 817
Head angle(°) 71 72 73 73 74 74
Seat angle(°) 76.5 76 75 75 74 74
Chain stay length(mm) 425 425 425 425 425 425
Head tube length(mm) 90 100 110 120 140 160
Bottom bracket height(mm) 277 277 280 280 285 285
Fork offset rake(mm) 43 43 43 43 43 43
Wheel base(mm) 987 990 994 1012 1017 1037
Bottom bracket drop(mm) 63 63 60 60 55 55
Front center(mm) 570 573 576 595 598 618
