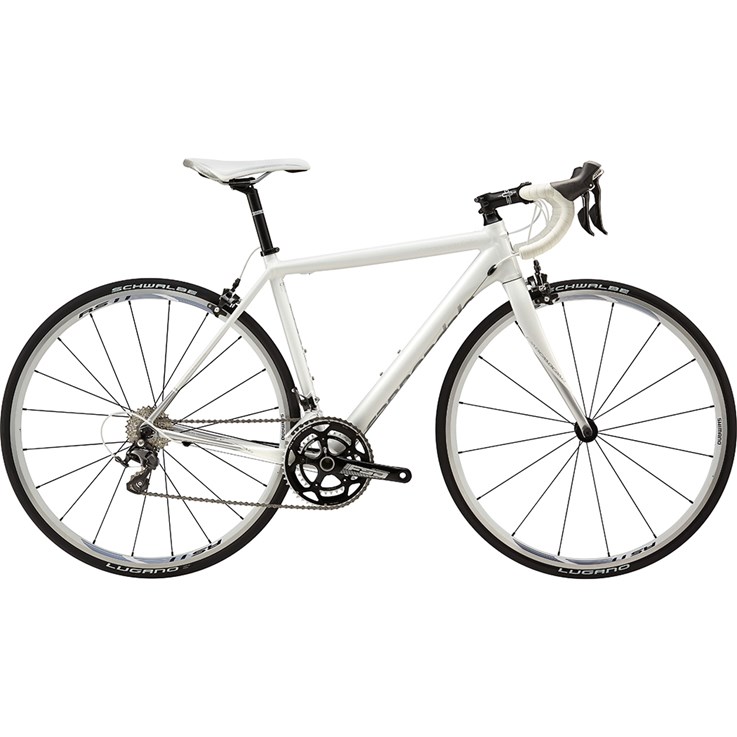

Cannondale CAAD10 Damcykel 105 Wht
The world’s most advanced aluminum road bike. Forget about diamonds, CAAD10 is a woman’s best friend. Weighing in at just 1020 grams for a 48cm frame, complete with hardware, and featuring our patented SPEED SAVE technologies, CAAD10 not only is the lightest aluminum road frame ever created, it’s lighter than most of our competitors’ elite carbon frames.
High-performance oriented women seeking a racy, lively, sharp-handling alternative to carbon.
Cykelvikt 51 cm 8,2 kg
Ram CAAD10 Women's, SmartFormed 6069 Alloy, Di2 Ready, SPEED SAVE, BB30, Di2 ready
Gaffel eller ev. stötdämpare fram CAAD10, SPEED SAVE Full Carbon, 1-1/8" to 1-1/4" tapered steerer
Vevparti FSA Gossamer Pro, BB30, 50/35
Vevlager FSA BB30
Växelreglage Shimano 105 5800 w/ reach adjust shims
Kassett eller ev. drev bak Shimano 105 5800, 11-28, 11-speed
Kedja Shimano HG600, 11-speed
Växelförare fram Shimano 105 5800, braze-on
Växelförare bak Shimano 105 5800
Fälgar Shimano RS11
Nav Shimano RS11
Däck Fram Schwalbe Lugano, 700x25c, folding
Pedaler Köp pedaler separat
Bromsar s Tektro R580
Styre Cannondale C3 Women's Compact Wing, butted 6061 alloy
Styrstolpe eller ev. styrstam Cannondale C3, 6061 Alloy, 31.8, 6 deg.
Styrlager CAAD10, 1-1/4" lower bearing, 25mm top cap
Bromshandtag Shimano 105 5800
Ekrar Shimano RS11
Handtag eller ev. linda Cannondale Bar Tape w/Gel, 2.5mm
Sadel Cannondale Women's Road Ergo
Sadelstolpe Cannondale C3, Alloy, 27.2x300mm
Sizes 44 48 51 54 56
Top tube length horizontal (cm) 49.4 50.9 52.3 53.8 55.4
Measured size * 43.4 46.4 49.3 51.4 53.4
Seat tube angle (degrees) 75.0° 74.5° 74.0° 73.5° *
Head tube angle (degrees) 70.0° 71.0° 71.5° 72.0° 73.0°
Chainstay length (cm) 40.5 H H H H
Fork rake (cm) 5.0 H H 4.5 H
Bottom bracket height (cm) 28.0 H H H H
Wheelbase (cm) 96.9 97.1 50.6 97.8 98.4
Trail (cm) 7.4 6.7 6.4 6.6 6
Stand over height (cm) 72.2 74.5 76.7 78.4 80.3
Bottom bracket drop (cm) 7.0 H H H H
Front center (cm) 57.4 57.7 12.8 58.3 58.9
Head tube length (cm) 10.4 11.9 13.4 15.0 16.5
Stack (cm) 50.0 51.8 53.4 55.3 57.1
Reach (cm) 36.0 36.5 37.0 37.5 38.5
Women ’s Race Geometry
The CAAD10 has the same stack/reach based geometry as the exceptional Women’s EVO. With shorter top tubes, slightly taller headtubes, and fork rakes that minimize toe overlap, Women’s Race Geometry delivers razor-sharp handling that fits.
SmartFormed 6069 Alloy Construction
A complex mix of hydroforming, mechanical shaping, taperbutting, double-pass smooth welding and heat treating, SmartForming is the most advanced aluminum construction in the world, for lighter, stronger frames.
SPEED SAVE vibration elimination system
The fork and rear stays on the CAAD10 are designed to allow perfectly balanced vertical flex. This lets the wheels track over rough roads, improving comfort, handling and control.
Form follows Function
From the oversized tapered head tube, to the laterally ovalized seat tube, to a top tube that is oversized for stiffness, but narrows through the center for knee clearance, every inch of the CAAD10 is engineered to perform. Even the cable routing changes with sizes to ensure ideal function on all sizes.
Narrower, ergonomic-shape handlebars, brakes positioned closer to the hands and women’s saddles are just some of the details that make these bike such a joy to ride.
All frames are Di2 ready and ship with all necessary wiring guides and cable covers.
