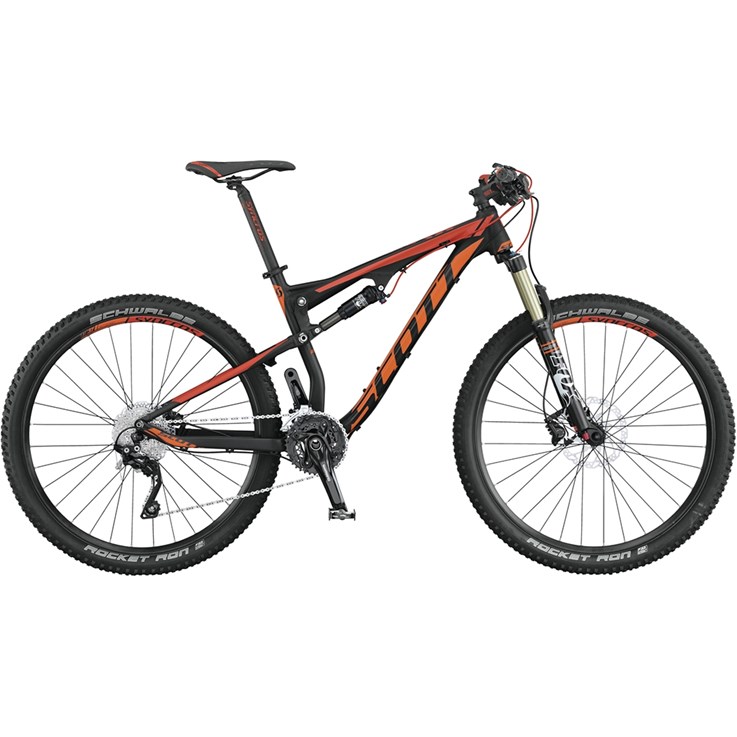

Scott Spark 750
The SCOTT Spark 750 has a super light Alloy frame, a FOX CTD fork and a FOX Float CTD shock, in combination with our TwinLoc technology to always allow you to optimize your ride. It's lightweight, durable, affordable and retains all the great geometry and ride of its Carbon cousins.
Ram Spark Alloy 6061 custom butted Hydroformed tubes / tapered Headtube replaceable derailleur hanger / 135mm BB92 / U-Mono Link / rear PM 160 BB height adj. Travel Front 120mm Rear 120 / CTD / Shock 190 × 50
Gaffel eller ev. stötdämpare fram FOX 32 Float Evolution CTD Air CTD damper with 3 modes Alloy 1 1/8" steerer reb. Adj
Stötdämpare bak FOX Float CTD / 3 modes Climb - Trail - Descend reb. Adj
Gaffel övrigt SCOTT TwinLoc Remote Technology 3 modes front and rear
Styrlager VP-J203SER / 1.5" - 1 1/8" reducer semi integ. OD 50/61mm / ID 44/55mm
Växelförare bak Shimano XT RD-M781 SGS Shadow Type / 20 Speed
Växelförare fram Shimano Deore FD-M615-E2 / DM
Växelhandtag Shimano Deore SL-M610-I Rapidfire Plus / 2 way release w/gear indicator
Bromshandtag Shimano BL-M506 Disc
Bromsar Shimano BR-M506 Disc 180/F and 160/Rmm SM-RT54 CL Rotor
Vevparti Shimano FC-M625 2-piece Design 38Ax24A T
Vevlager Shimano SM-BB71-41A / shell 41x89.5mm
Styre Syncros FL2.0 Tbar Alloy 6061D.B. / T shape Flat / 9° / 700mm
Styrstam Syncros FL2.0 6061 Alloy / oversize 31.8mm 1 1/8" / 6° angle
Pedaler Wellgo M-21
Sadelstolpe Syncros FL2.5 / 31.6mm
Sadel Syncros MTB Race
Nav fram Formula CL51
Nav bak Shimano FH-M615 Disc CL
Kedja KMC X10
Kassett eller ev. drev bak Shimano CS-HG5010 11-36 T
Ekrar Stainless Black 15G / 1.8mm
Fälgar Syncros XC / Eyelets / 32H XC37
Däck Schwalbe Rocket Ron / 2.25 67EPI Kevlar Bead / Dual compound Performance Series
Vikt i kg 12.70kg
Vikt i lbs 28.00lbs
S S M M L L XL XL
BB setting low BB setting high BB setting low BB setting high BB setting low BB setting high BB setting low BB setting high
Head tube angle 68.3 ° 68.8 ° 68.3 ° 68.8 ° 68.3 ° 68.8 ° 68.3 ° 68.8 °
Head tube length 105.0 mm 105.0 mm 110.0 mm 110.0 mm 120.0 mm 120.0 mm 135.0 mm 135.0 mm
Top tube horizontal 570.0 mm 568.5 mm 600.0 mm 598.5 mm 625.0 mm 623.5 mm 650.0 mm 648.6 mm
Standover height 761.7 mm 764.4 mm 763.3 mm 766.2 mm 794.6 mm 798.0 mm 823.9 mm 827.6 mm
Bottom bracket offset -21.5 mm -15.5 mm -21.5 mm -15.5 mm -21.5 mm -15.5 mm -21.5 mm -15.5 mm
Bottom bracket height 330.0 mm 336.0 mm 330.0 mm 336.0 mm 330.0 mm 336.0 mm 330.0 mm 336.0 mm
Wheel base 1,094.0 mm 1,094.0 mm 1,125.0 mm 1,125.0 mm 1,150.0 mm 1,150.0 mm 1,177.0 mm 1,177.0 mm
Bottom bracket center to toptube center
Bottom bracket center to top of seattube 412.0 mm 412.0 mm 440.0 mm 440.0 mm 490.0 mm 490.0 mm 530.0 mm 530.0 mm
Seat angle 73.0 ° 73.0 ° 73.0 ° 73.0 ° 73.0 ° 73.0 ° 73.0 ° 73.0 °
Chainstay 433.0 mm 433.0 mm 433.0 mm 433.0 mm 433.0 mm 433.0 mm 433.0 mm 433.0 mm
Reach 394.0 mm 398.9 mm 422.6 mm 427.4 mm 444.7 mm 449.5 mm 465.5 mm 469.9 mm
Stack 575.7 mm 572.3 mm 580.4 mm 576.8 mm 589.7 mm 586.1 mm 603.6 mm 600.2 mm
Stem length 70.0 mm 70.0 mm 80.0 mm 80.0 mm 90.0 mm 90.0 mm 100.0 mm 100.0 mm
Beskrivning av utvalda cykelegenskaper
Nude shock by Fox
Our new FOX Nude is the result of our successful partnership with FOX. The Nude project is a combination of both, SCOTT's unique patents and technology as well as FOX's suspension performance and experience. The goal was to create a rear shock that gains maximum performance in every riding situation while remaining lightweight. The FOX Nude works exclusively with our patented TwinLoc system and comes stock on both 27.5” and 29” versions. This new shock is a completely new development with the most advanced air spring and damping system. It features positive air volume micro-adjust with replaceable volume reducers custom tuned for each model and size. Both travel modes have separate damper settings relative to their travel length and effective forces. When collecting data for the new shock project, we also calculated rider input data, including forces such as the rider’s gyro-scoping pedal stroke and its' effects on the suspension. We simulated a rider's pedaling and jerky motions made while pedaling or clearing obstacles, and measured their influence on the suspension. Many other designs assume that a rider is static and coasting, or they only include acceleration forces on the suspension and drivetrain. We are more concentrated on suspending the movement of the rider instead of negating pedaling forces. The FOX Nude features a low profile rebound control and mode control pulley for uninterrupted access to water bottles. The lightest FOX Nude shock weight(6.5x1.5”) is 260g.
When discussing the pros and cons of the big wheeled bikes, shorter riders find themselves in an ambivalent situation. They want to benefit from the 29” wheels, but suffer from the negative effects when fit is considered. Additionally, the increase in rotational weight challenges many lower watt producing riders, so the performance gains are negated when the rider cannot accelerate the wheel system as quickly. The solution for many riders is 27,5”. The new wheelsize standard combines the best of both worlds, 29” and 26”.
>Less rotational weight than 29”
>More Agile than 29”
>More suspension travel options
>Short chain stays
>Balanced Stability and Performance
>Geometry closer 26”
>Great balance of Agility and Momentum
Direct post mount
We've saved even more weight by eliminating bulky brake hardware for mounting the rear caliper and integrated a direct post mount to the chain stay. This mounting position also decreases the load the brakes apply to the swingarm parts.
The Scale and Spark feature a tapered head tube for increased stiffness, safety, confidence, and control.
Adjustable bottom bracket height
The Spark employs an adjustable geometry by way of a shock mount chip in the linkage. By changing the shock mount chip--simply removing it and flipping it in either mounting position--you affect the bottom bracket height by 7mm, which also affects the head tube angle by 0.5 degrees. The Spark is the only XC/Marathon bike on the market that offers this feature.
IDS SL dropout system
Interchangeable and lightweight, the IDS-SL dropout system works with 142x12mm, 135x12mm and 135x5mm QR rear axle standards. Shred the turns more aggressively and with enhanced control, thanks to a laterally stiff rear end.
Twin Loc lver system
Our patented Twin Loc technology now offers simultaneous control of rear shock travel and fork lockout. The open position allows full travel, front and rear. One click switches the rear shock to Traction mode, while the fork remains fully active. Click again and rear shock and fork lock at the same time. No other bike in the world offers this user friendly system. Found on the Spark & Genius and Genius LT models. Only available for Nude2 shocks on 2013 or previous year models.
