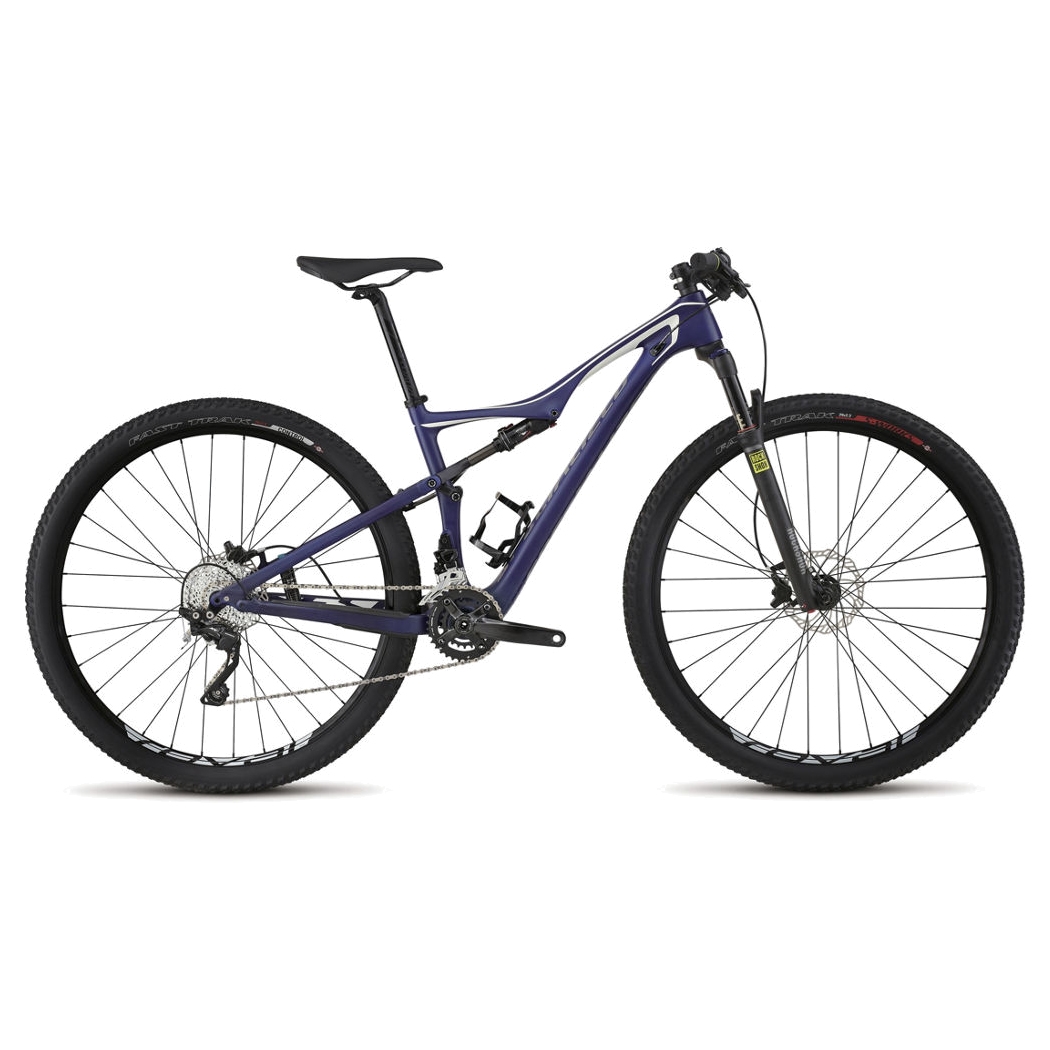

Specialized Era FSR Comp Carbon 29 Indigo/Met White/Sil/Hyp Grn

Cykelbeskrivning

The 100mm-travel, carbon fiber, Era Comp Carbon 29 is a pure-bred competitive XC machine. With the Specialized/FOX Brain shock and RockShox Reba fork, the all-new Era Comp is the fastest women's XC bike in the sport.

>Carbon, 100mm-travel frame w/ Women's Performance 29 Geometry and SWAT EMT kit for XC terrain.
>Specialized/FOX Brain shock w/ AUTOSAG knows the difference between smooth and rough terrain.
>RockShox Reba RL 90mm-travel fork w/ 15mm thru-axle provides XC traction and control.
>Roval 29 rims w/ Hi Lo hubs, 142+ rear hub spacing and 12mm axle for confident control.
>Custom SRAM PF30 crankset for stiff, yet lightweight pedaling performance.
>Magura MTS hydraulic disc brakes w/ Storm SL rotors for total control and performance.
>Ride longer and in more comfort w/ the Body Geometry Myth Comp saddle w/ hollow Cr-Mo rails.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

FACT 9m carbon front triangle, M5 alloy rear triangle, FACT IS construction, tapered headtube, carbon PF30 BB, full internal cable routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, SWAT EMT tool cradle, S: 90mm travel, L/XL: 100mm

Stötdämpare bak

FOX/Specialized remote Mini-Brain w/ AUTOSAG, inertia valve, BrainFade adjust, 200x48mm, 95mm travel

Gaffel eller ev. stötdämpare fram

RockShox Reba RL 29, Solo Air spring, tapered alloy steerer, w/ lockout, compression, rebound adjust, 15mm thru-axle, S: 90mm travel, L/XL: 100mm

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized, forged alloy, 6-degree rise

Styre

Specialized flat, 8-degree backsweep, 31.8mm

Handtag

Specialized Sip Grip, lock-on, half-waffle, S/M: regular thickness, Others: XL

Bromsar fram

Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, Storm SL rotor

Bromsar bak

Magura MTS, hydraulic disc, Hi Friction pad, alloy master cylinder, alloy caliper, Storm SL rotor

Bromshandtag

Magura MTS, alloy lever

Växelförare fram

Custom SRAM X0, 2x10, high direct mount

Växelförare bak

Shimano XT Shadow Plus, 10-speed, SGS long cage

Växelreglage

Shimano SLX, 10-speed, trigger

Kassett eller ev. drev bak

SRAM PG 1030, 10-speed, 11-36

Kedja

SRAM PC 1031, 10-speed, w/ PowerLink, nickel finish

Vevparti

Custom SRAM S-1250, 7050 alloy arms, 10-speed AM double, PF30 spindle

Vevlager

SRAM, PF30, OS press-in bearings, sealed cartridge

Pedaler

Resin test ride, w/ toe clips, CEN std.

Fälgar

Roval 29, alloy, 21mm inner width, 32h

Nav fram

Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h

Nav bak

Specialized Hi Lo disc, 4 sealed cartridge bearings, 12mm thru-axle, 32h

Ekrar

DT Swiss Industry, stainless

Däck fram

S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.2"

Däck bak

Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0"

Innerslang

Ultralight, presta valve

Sadel

Body Geometry Women's Myth Comp, hollow Cr-Mo rails, 155mm

Sadelstolpe

Specialized alloy, single bolt, 30.9mm

Sadelstolpsklämma

Alloy, 31.8mm

Ramgeometri

Frame size

S M L.

Seat tube length center to top

382mm 420mm 445mm.

Top tube length

, Horizontal 546mm 575mm 601mm.

Top tube length

, Actual 528mm 545mm 567mm.

Bottom bracket drop

40mm 45mm 50mm.

Bottom bracket height

322mm 327mm 332mm.

Chainstay length

448mm 448mm 448mm.

Seat tube angle actual

70.5° 71° 71.5°.

Seat tube angle effective

75° 75° 75°.

Head tube angle

70.5° 70.5° 70.5°.

Wheel base

1076mm 1108mm 1135mm.

Standover height

726mm 735mm 744mm.

Head tube length

90mm 95mm 105mm.

Stack

589mm 598mm 607mm.

Reach

388mm 415mm 438mm.

Handlebar width

680mm 680mm 680mm.

Stem length

60mm 75mm 90mm.

Crank length

165mm 170mm 175mm.

Seatpost length

350mm 650mm 400mm.
