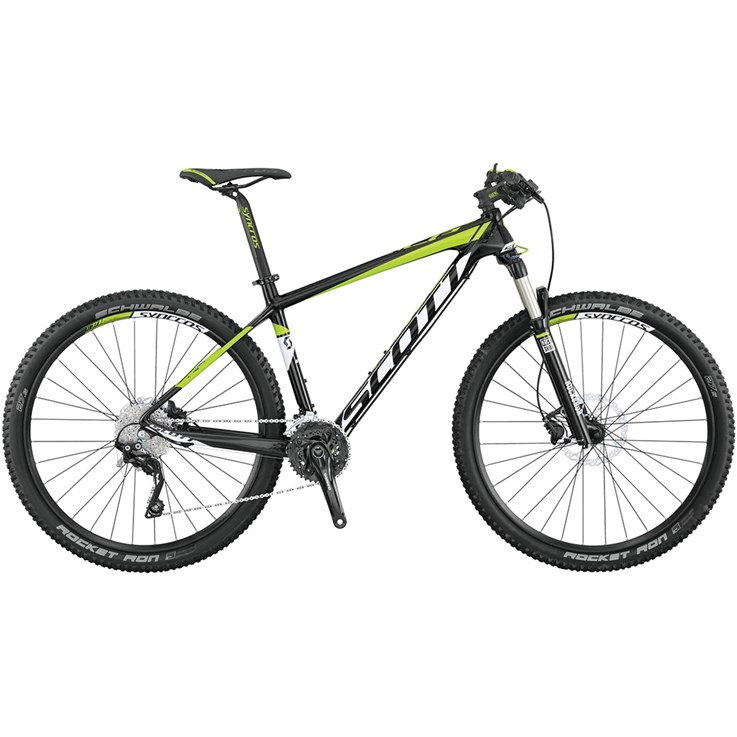

Scott Scale 735

The SCOTT Scale 735 boasts a super light Carbon Fiber frame. The series comes fully equipped with a Rock Shox fork, along with our Remote Lockout technology to always optimize your ride.

Cykelspecifikationer
Ram Scale Carbon IMP technology / Carbon / Tapered HT PM 160 Disc / BB92 IDS SL dropouts SDS Shock Damping System Travel 100mm
Gaffel eller ev. stötdämpare fram Rock Shox XC 30 Gold TK Solo Air Alloy Steerer / remote Lockout reb. Adj. / 100mm travel
Gaffel övrigt Rock Shox Pop Loc
Styrlager Syncros / VP-J205AM1 / 1.5" - 1 1/8" semi integ. OD 50/61mm / ID 44/55mm
Växelförare bak Shimano XT RD-M781 SGS Shadow Type / 20 Speed
Växelförare fram Shimano Deore FD-M615-E2 900 Series: Shimano Deore FD-M616 / 34.9
Växelhandtag Shimano DeoreSL-M610 Rapidfire plus / 2 way release w/gear indicator
Bromshandtag Shimano BL-M396 Disc
Bromsar Shimano BR-M396 Disc 180/F and 160/Rmm SM-RT54 CL Rotor
Vevparti Shimano FC-M625 2-piece Design 38 × 24 T
Vevlager Shimano SM-BB71-41A / shell 41x89.5mm
Styre Syncros FL2.0 Tbar Alloy 6061 / T shape Flat / 9° / 700mm
Styrstam Syncros FL2.0 6061 Alloy / oversize 31.8mm 1 1/8" / 6° angle
Sadelstolpe Syncros FL2.0 31.6mm
Sadel Syncros MTB Race
Nav fram Formula CL51
Nav bak Shimano FH-M615 Disc CL
Kedja KMC X10
Kassett eller ev. drev bak Shimano CS-HG5010 11-36 T
Ekrar Stainless Black 15G / 1.8mm
Fälgar Syncros XC / Eyelets / 32H XC37
Däck Schwalbe Rocket Ron / 2.1 67EPI Kevlar Bead / Dual compound Performance Series
Vikt i kg 11.10kg
Vikt i lbs 24.47lbs

Ramgeometri
S M L XL
Head tube angle 69.0 ° 69.0 ° 69.0 ° 69.0 °
Head tube length 100.0 mm 100.0 mm 115.0 mm 125.0 mm
Top tube horizontal 575.0 mm 600.0 mm 625.0 mm 650.0 mm
Standover height 728.9 mm 758.0 mm 786.8 mm 819.7 mm
Bottom bracket offset -44.0 mm -44.0 mm -44.0 mm -44.0 mm
Bottom bracket height 307.5 mm 307.5 mm 307.5 mm 307.5 mm
Wheel base 1,075.2 mm 1,100.2 mm 1,126.3 mm 1,152.0 mm
Bottom bracket center to toptube center 315.8 mm 369.3 mm 409.3 mm 458.2 mm
Bottom bracket center to top of seattube 390.0 mm 440.0 mm 480.0 mm 530.0 mm
Seat angle 73.0 ° 73.0 ° 73.0 ° 73.0 °
Chainstay 427.0 mm 427.0 mm 427.0 mm 427.0 mm
Reach 398.1 mm 423.1 mm 443.8 mm 466.0 mm
Stack 578.6 mm 578.6 mm 592.6 mm 601.9 mm
Stem length 70.0 mm 80.0 mm 90.0 mm 100.0 mm

Beskrivning av utvalda cykelegenskaper
27.5” wheels
When discussing the pros and cons of the big wheeled bikes, shorter riders find themselves in an ambivalent situation. They want to benefit from the 29” wheels, but suffer from the negative effects when fit is considered. Additionally, the increase in rotational weight challenges many lower watt producing riders, so the performance gains are negated when the rider cannot accelerate the wheel system as quickly. The solution for many riders is 27,5”. The new wheelsize standard combines the best of both worlds, 29” and 26”.

>Increased Roll-Over
>Increased Momentum
>Increased Traction
>Less rotational weight than 29”
>More Agile than 29”
>More suspension travel options
>Short chain stays
>Balanced Stability and Performance
>Geometry closer 26”
>Great balance of Agility and Momentum

Tapered headtube
The Scale and Spark feature a tapered head tube for increased stiffness, safety, confidence, and control.
