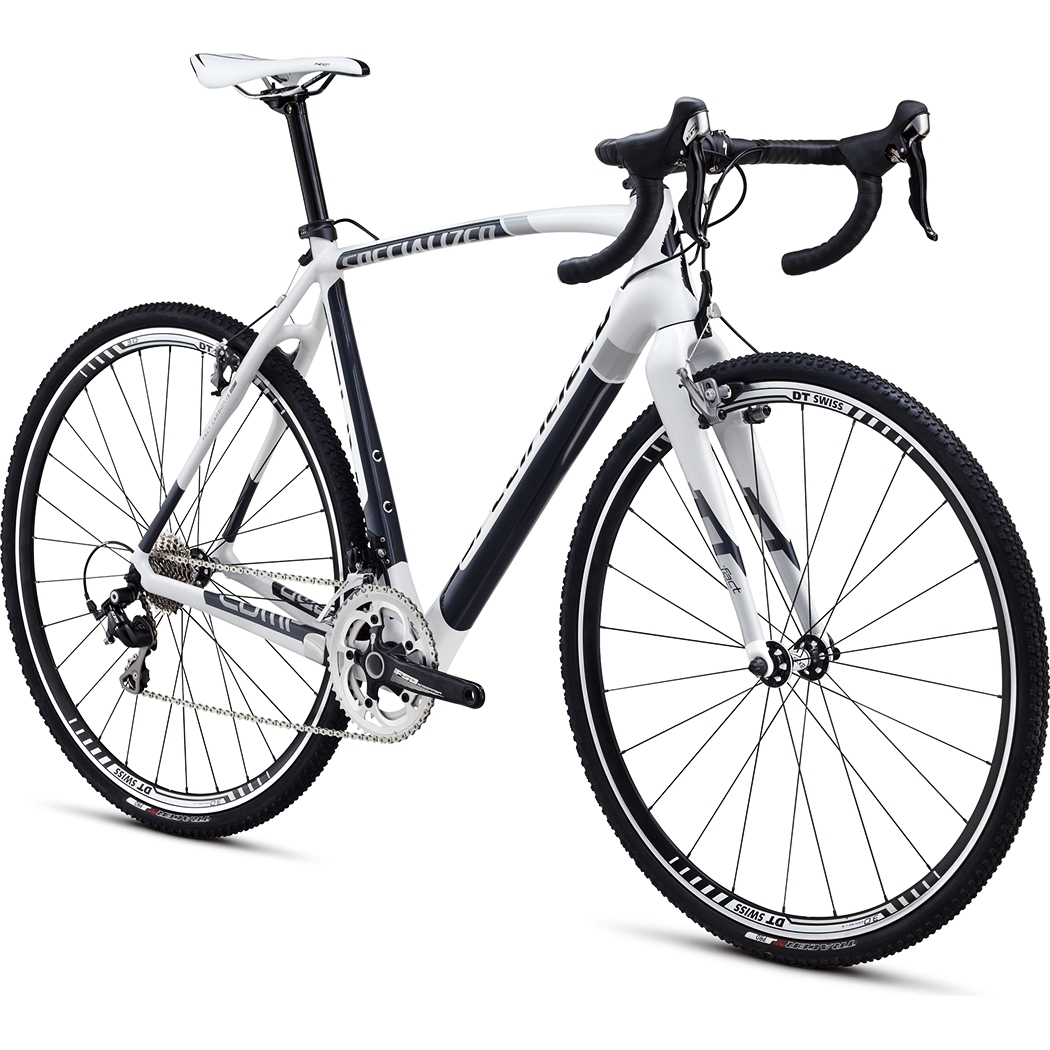

Specialized Crux Comp Kolfiber Vit
Visa storleksrekommendation.
Artikelnummer.
91E4-4149 (49)
Övriga art.nr.
91E4-4152 (52)
91E4-4154 (54)
91E4-4156 (56)
91E4-4158 (58)
91E4-4161 (61)
Cykelbeskrivning
With a FACT 10r carbon frame, race-optimized geometry, tapered head tube, internal cable routing, and an outstanding stiffness-to-weight ratio, the CruX Pro Carbon is the fastest cross bike we've ever made. DT Axis 3.0 wheels and Shimano 105 10-speed drivetrain complete the uber-tough, race-ready package.
>Specialized FACT 10r carbon canti frame, features cross specific geometry and race freatures, tapered headtube, and OSBB for greater stiffness, acceleration, efficency and handling on any race course.
>All-new FACT carbon canti fork with tapered steerer provides ample tire clearance and the best balance of strength, stiffness, and compliance for cyclocross racing.
>Race-ready DT Axis 3.0 wheels are fast, light and durable; fitted with Specialized Tracer Pro tires for reliable traction over all course conditions with fast CX tread.
>Specialized Tracer Pro tire with 120 TPI provides reliable traction over all course conditions with fast CX tread.
>FSA Gossamer BB30 crankset has cross-specific gearing and is tough and reliable in the nastiest conditions.
>Smooth, precise Shimano 105 STI shifters are renowned for their race-ready performance and exceptional value.
>Featherweight Phenom Comp saddle, tuned for stiffness, built for competition, and with light, super durable hollow Cr-Mo rails.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas.
Ram
Specialized CruX FACT 10r carbon canti, FACT IS construction, 1-3/8" lower bearing, OSBB
Stötdämpare bak
Gaffel eller ev. stötdämpare fram
Specialized FACT Canti carbon monocoque fork, carbon steerer and crown for 1-3/8" lower bearing
Styrlager
1-1/8" upper and 1-3/8" lower, stainless cartridge bearings integrated w/ headset, 8mm cone spacer, w/ 20mm of spacers
Styrstolpe eller ev. styrstam
Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt, 31.8mm
Styre
Specialized CX, 6061 alloy, shallow bend
Styrlinda
Specialized CX Pro gel
Bromsar fram
Shimano CX-50 canti
Bromsar bak
Shimano CX-50 canti
Bromshandtag
Växelförare fram
Shimano 105
Växelförare bak
Shimano 105
Växelreglage
Shimano 105 STI
Kassett eller ev. drev bak
Shimano Tiagra 10-speed, 12-28t
Kedja
KMC X10 CP
Vevparti
FSA Gossamer BB30
Vevparti utväxling
FSA, 46/36
Vevlager
OS integrated
Pedaler
Nylon flat test ride, loose-ball, w/ reflectors
Hjul fram
DT Axis 3.0
Hjul bak
DT Axis 3.0
Fälgar
Nav fram
Nav bak
Ekrar
Däck fram
Specialized Tracer Pro,120TPI, aramid bead, 700x33c
Däck bak
Specialized Tracer Pro,120TPI, aramid bead, 700x33c
Innerslang
Standard presta valve
Sadel
Body Geometry Phenom Comp, Cr-Mo rails, 143mm
Sadelstolpe
Specialized Sport alloy, 27.2mm
Sadelstolpsklämma
S-Works w/ brake stop, 32.6mm NOTESChainstay protector, derailleur hanger, clear coat, owner's manual
Ramgeometri
Frame size
460.0 490.0 520.0 540.0 560.0 580.0 610.0.
Seat tube length bottom bracket center to top
470mm 490mm 510mm 530mm 550mm 570mm 600mm.
Top tube length horizontal
501mm 513mm 537mm 549mm 560mm 570mm 587mm.
Bottom bracket drop
71mm 71mm 71mm 69mm 69mm 67mm 67mm.
Chain stay length
425mm 425mm 425mm 425mm 425mm 425mm 425mm.
Seat tube angle
75.5° 75.5° 74° 73.5° 73.25° 73° 72.5°.
Head tube angle
69.5° 70.5° 71.5° 71.5° 72° 72.5° 73°.
Fork rake
51mm 51mm 51mm 49mm 49mm 49mm 49mm.
Trail
75mm 69mm 62mm 64mm 61mm 58mm 55mm.
Front to center
593mm 593mm 595mm 601mm 606mm 609mm 615mm.
Wheel base
1008mm 1007mm 1009mm 1016mm 1022mm 1025mm 1031mm.
Stand over height
725mm 754mm 773mm 790mm 807mm 825mm 849mm.
Head tube length
100mm 115mm 125mm 140mm 155mm 170mm 190mm.
Handle bar width
40mm 40mm 42mm 42mm 42mm 44mm 44mm.
Stem length
75mm 75mm 90mm 100mm 100mm 110mm 110mm.
Crank length
170mm 170mm 170mm 172.5mm 172.5mm 175mm 175mm.
Seat post length
300mm 300mm 300mm 350mm 350mm 350mm 350mm.
Reach
366mm 369mm 375mm 378mm 384mm 387mm 392mm.
Stack
522mm 541mm 554mm 567mm 563mm 597mm 618mm.
