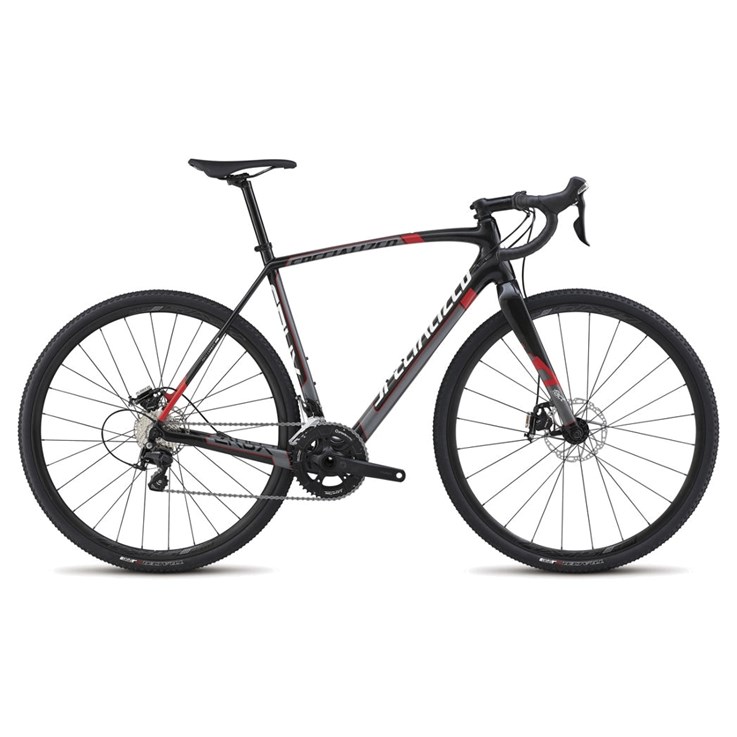

Specialized CruX Elite Carbon Carbon/Charcoal/Red
Visa storleksrekommendation.
Artikelnummer.
91415-4046 (46)
Övriga art.nr.
91415-4049 (49)
91415-4052 (52)
91415-4054 (54)
91415-4056 (56)
91415-4058 (58)
91415-4061 (61)
Cykelbeskrivning
The CruX Elite is a 'cross beast, with race-optimized geometry, tapered headtube, internal cable routing, and an outstanding stiffness-to-weight ratio to power through the nastiest courses. Reliable Shimano 105 drivetrain with integrated hydraulic disc brakes rounds out an excellent 'cross setup for the most demanding racers.
>AXIS 2.0 Disc wheels are lightweight with strong, reliable rims.
>Specialized Tracer Sport, 33c tires offer excellent grip in all conditions.
>Turn Zayante BB30 crankset for rock-solid shifting and performance.
>TRP HY/RD hydraulic disc brakes for effortless braking in even the nastiest conditions.
>Shimano 105, 11-speed rear derailleur for crisp shifting on demand.
>Body Geometry Phenom Comp saddle w/ hollow Cr-Mo rails provides comfort for all-out efforts.
>Specialized Sport, alloy seatpost w/ 2-bolt adjustment for any position.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas.
Ram
Specialized FACT 10r carbon, disc-specific, 1-3/8" lower bearing, OSBB
Gaffel eller ev. stötdämpare fram
Specialized FACT carbon
Styrlager
1-1/8" upper, 1-3/8” lower, steel bearings, 20mm alloy cone spacer, w/ 20mm spacers
Styrstolpe eller ev. styrstam
Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise
Styre
Specialized Comp, shallow drop, alloy, 125mm drop, 70mm reach
Styrlinda
Specialized CX Pro Gel
Bromsar fram
TRP HY/RD, hydraulic disc
Bromsar bak
TRP HY/RD, hydraulic disc
Växelförare fram
Shimano 105
Växelförare bak
Shimano 105, 11-speed
Växelreglage
Shimano 105 STI, 11-speed
Kassett eller ev. drev bak
Shimano 105, 11-speed, 11-28
Kedja
Shimano 105, 11-speed
Vevparti
Praxis Works, TURN Zayante, BB30
Pedaler
Nylon flat test ride, loose-ball, w/ reflectors
Hjul fram
AXIS 2.0 Disc SCS
Hjul bak
AXIS 2.0 Disc SCS
Däck fram
Specialized Tracer Sport, 60TPI, wire bead, 700x33c
Däck bak
Specialized Tracer Sport, 60TPI, wire bead, 700x33c
Innerslang
Standard, presta valve
Sadel
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Sadelstolpe
Specialized Sport, alloy, 2-bolt, 27.2mm
Sadelstolpsklämma
Alloy, 32.6mm
Ramgeometri
Frame size
46 49 52 54 56 58 61.
Seat tube length bottom bracket center to top
470mm 490mm 510mm 530mm 550mm 570mm 600mm.
Top tube length horizontal
510mm 516mm 537mm 548mm 560mm 570mm 587mm.
Bottom bracket drop
71mm 71mm 71mm 69mm 69mm 67mm 67mm.
Chain stay length
425mm 425mm 425mm 425mm 425mm 425mm 425mm.
Seat tube angle
75.5° 75.5° 74° 73.5° 73.25° 73° 72.5°.
Head tube angle
69.5° 70.5° 71.5° 71.5° 72° 72.5° 73°.
Fork rake
51mm 51mm 51mm 49mm 49mm 49mm 49mm.
Trail
75mm 69mm 62mm 64mm 61mm 58mm 55mm.
Front to center
593mm 593mm 595mm 601mm 606mm 609mm 615mm.
Wheel base
1008mm 1007mm 1009mm 1016mm 1022mm 1025mm 1031mm.
Stand over height
725mm 754mm 773mm 790mm 807mm 825mm 849mm.
Head tube length
100mm 115mm 125mm 140mm 155mm 170mm 190mm.
Handle bar width
400mm 400mm 420mm 420mm 420mm 440mm 440mm.
Stem length
75mm 75mm 90mm 100mm 100mm 110mm 110mm.
Crank length
170mm 170mm 170mm 172.5mm 172.5mm 175mm 175mm.
Seat post length
300mm 300mm 300mm 350mm 350mm 350mm 350mm.
Reach
366mm 369mm 376mm 379mm 384mm 387mm 393mm.
Stack
522mm 540mm 554mm 566mm 583mm 597mm 618mm.
