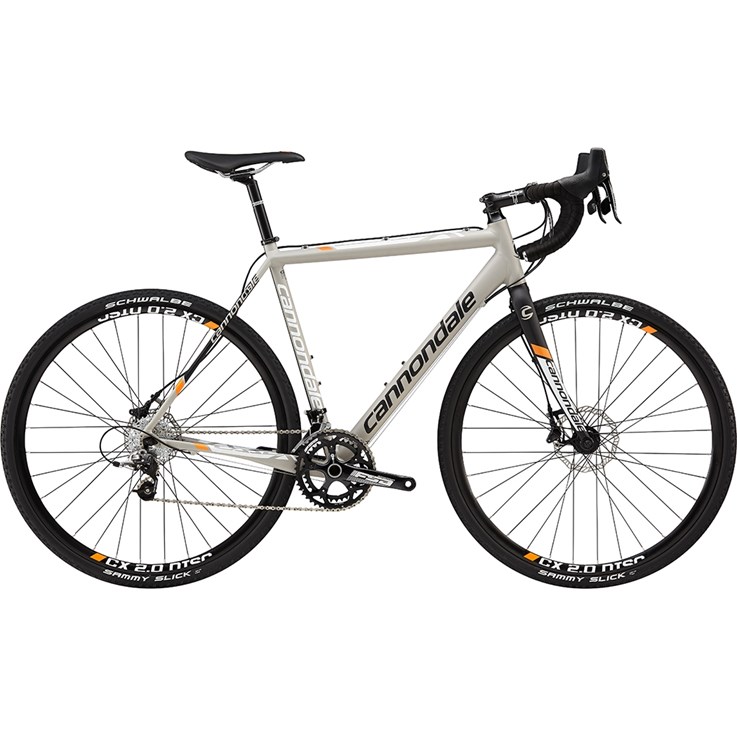

Cannondale CAADX Sram Rival Disc Gry
Artikelnummer.
CM24454401 (44)
Övriga art.nr.
CM24454801 (48)
CM24455101 (51)
CM24455401 (54)
CM24455601 (56)
CM24455801 (58)
CM24456101 (61)
Cross. Functional. If you are a "Race on Sunday, commute on Monday" kind of person, CAADX is the bike for you. SuperX -inspired tube shapes, SAVE stays and nimble geometry speak to its race heritage, while rack and fender mounts, disc brakes and a slightly more upright position expand its usability. From race to rat-race, CAADX rocks.
Cyklist
With its mix of high performance and durability, CAADX is perfect for cyclocross racers, fast commuters, winter training, or general rough-road riding.
Vikt
Cykelvikt
54 cm 8,3 kg
Cykelspecifikation
Ram
CAADX Cyclocross Disc, Optimized 6061 Alloy, BB30
Gaffel eller ev. stötdämpare fram
Cannondale Ultra X Disc, Carbon blades, 1-1/8"
Vevparti
FSA Gossamer Cross, BB30, 46/36
Vevlager
FSA BB30
Växelreglage
SRAM Rival 22 HRD
Kassett eller ev. drev bak
SRAM PG-1130, 11-28, 11-speed
Kedja
KMC X11, 11-speed
Växelförare fram
SRAM Rival 22, 31.8 clamp
Växelförare bak
SRAM Rival 22
Fälgar
Maddux CX 2.0 Disc, 32-hole
Nav
Formula CX20 front, CX 22 rear
Däck Fram
Schwalbe Sammy Slick, 700x35c
Pedaler
Wellgo w/ Clip and Strap
Bromsar
s SRAM Rival HRD hydraulic disc, 160/140mm
Styre
Cannondale C3 Compact, butted 6061 alloy
Styrstolpe eller ev. styrstam
Cannondale C3, 6061 Alloy, 31.8, 6 deg.
Styrlager
CAADX Si, 25mm top cap
Bromshandtag
SRAM Rival HRD
Ekrar
Stainless Steel, 15g
Handtag eller ev. linda
Cannondale Grip Bar Tape w/Gel, 3.5mm
Sadel
Cannondale Stage CX w/ Crmo Rails
Sadelstolpe
Cannondale C3 Alloy, 27.2mmx300mm
Ramgeometri
Sizes
44 48 51 54 56 58 61
Top tube length horizontal (cm)
51.5 52.5 53.5 54.5 56.0 57.5 59.0
Measured size *
44.0 47.0 50.0 53.0 55.0 57.0 60.0
Seat tube angle (degrees)
75.0 ° 74.5 ° 74.0 ° 73.5 ° 73.0 ° 73.0 ° 72.5 °
Head tube angle (degrees)
69.5 ° 70.5 ° 71.0 ° 72.0 ° 72.5 ° H H
Chainstay length (cm)
43.2 H H H H H H
Fork rake (cm)
4.5 H H H H H H
Bottom bracket height (cm)
26.7 H H H H H H
Wheelbase (cm)
101.0 101.1 101.4 101.2 101.8 H H
Trail (cm)
7.7 7.1 6.7 6.1 5.8 H H
Stand over height (cm)
73.9 76.2 78.5 80.7 82.0 84.0 86.0
Bottom bracket drop (cm)
6.7 H H H H H H
Front center (cm)
58.7 58.8 59.1 58.9 59.5 61.0 62.0
Head tube length (cm)
12.0 13.0 14.5 15.5 16.0 18.0 20.0
Stack (cm)
51.2 52.5 54.1 55.4 56.0 58.0 60.0
Reach (cm)
36.9 37.4 37.6 37.9 38.8 39.7 40.1
Cykelegenskaper
Relaxed race geometry
The CAADX has a slightly taller head tube and slightly slacker head tube angle than the SuperX, providing a more upright position and stable handling.
SAVE stays
The flattened shape and refined butting of the stays offer significant vertical compliance for comfort and control over rough surfaces, while remaining laterally rigid for solid power transfer and confident handling.
Smooth welds
A true smooth weld, rather than the sand, putty, and paint “smooth welds” of our competition. Cannondale’s trademark double-pass smooth weld technology eliminates the stress-risers and weak points found on traditionally-welded frames, enabling us to build lighter, stronger frames.
Taper-butted tubes
Like the legendary CAAD frames of the past, the CAADX features 6061 aluminum which has been taper-butted and heat-treated to a T6 hardness. The smooth transitions provided by taper-butting eliminate the internal stress risers of traditionally-butted frames, again allowing a lighter, stronger frame.
Full rear rack/fender mount and front fender mounts
Rack and fender compatibilty makes the CAADX ready for duty as a fast commuter or winter training rig.
Disk brake equipped
The top model comes with disk brakes for all-weather power and control.
