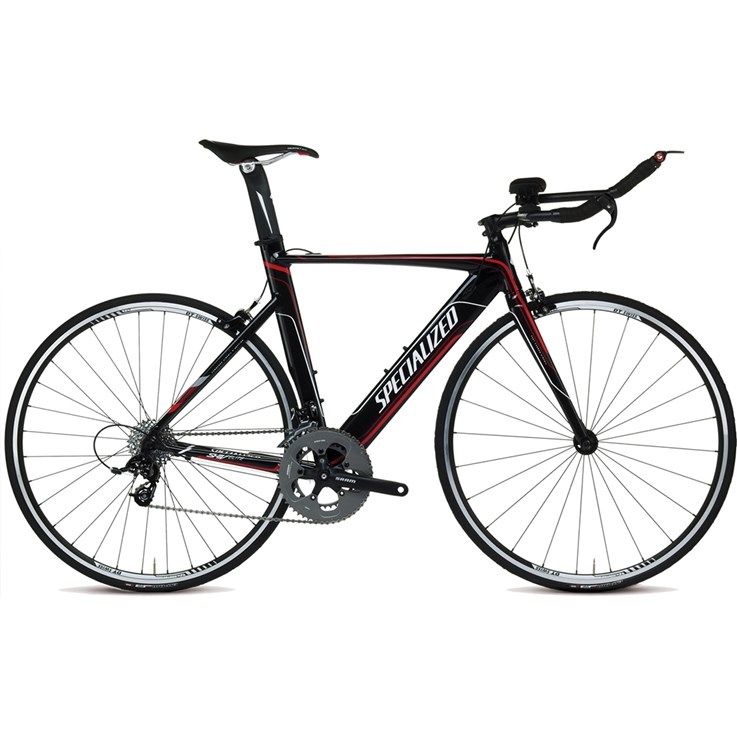

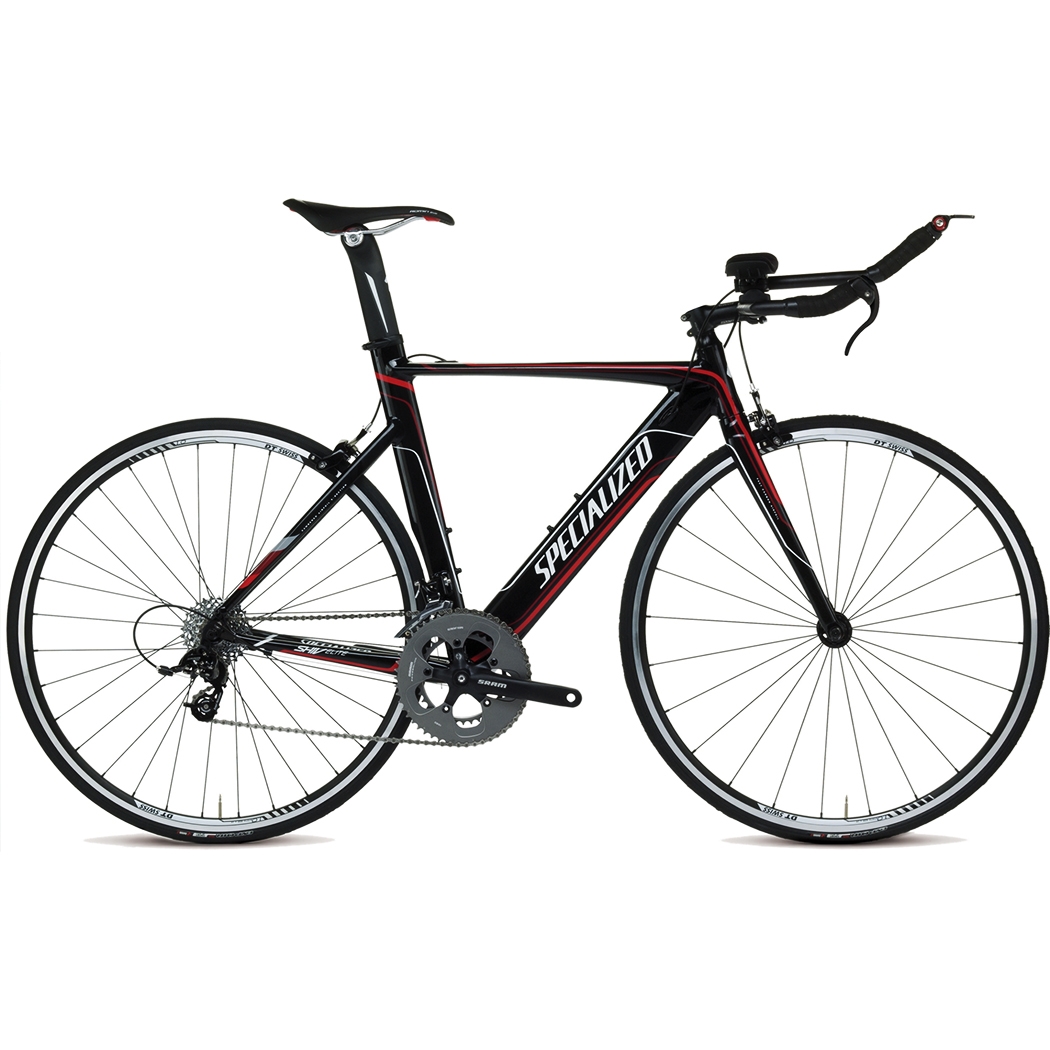

Specialized Shiv Elite A1 SRAM Apex Dubbel Kompakt Mid Svart/Röd
Visa storleksrekommendation.
Artikelnummer.
9921-5101 (XS)
Övriga art.nr.
9921-5102 (S)
9921-5103 (M)
9921-5104 (L)
9921-5105 (XL)
Cykelbeskrivning
The budget-minded Shiv Elite features a lightweight alloy frame with UCI-legal airfoil tubing, a stiff carbon fork, and our Hydroformed Alloy Aerobar for wind-cheating speed and solid handling. The SRAM Apex 10-speed drivetrain adds reliability and efficiency.
>Specialized A1 Premium Aluminum, smooth-weld aero frame is a high-value, high-performance, UCI-legal stealth machine for any race against the clock.
>Fully adjustable, Specialized Hydroformed Alloy Aerobar fits any rider to provide the fastest position.
>Specialized FACT carbon fork provides precise steering through the tightest turns and ultra light weight.
>Espoir Sport 23c tires with BlackBelt punture protection allows for smooth, fast, and confident ride.
>Stiff, light, UCI-legal bladed carbon seatpost flips between 20mm and 0mm setback; also wide range of vertical adjustability.
>10-speed SRAM Apex for high value, durability, and smooth shifting.
>Body Geometry Romin Evo Comp with hollow Cr-Mo rails with contoured profile and turned-down nose for comfort and power in aggressive position.
Cykelspecifikationer
Vikt
Uppgift om vikt saknas.
Ram
Specialized A1 Premium Aluminum aero tubing, smooth weld, 1-1/8" lower bearing
Stötdämpare bak
Gaffel eller ev. stötdämpare fram
Specialized FACT Aero carbon monocoque fork, alloy steerer and crown for 1-1/8" bearing
Styrlager
1-1/8" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers
Styrstolpe eller ev. styrstam
Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt, 31.8mm
Styre
Shiv Alloy aero base bar
Styrlinda
Specialized S-Wrap, w/ gel
Bromsar fram
Tektro forged alloy
Bromsar bak
Tektro forged alloy
Bromshandtag
TRP TL720 Aero lever
Växelförare fram
SRAM Apex
Växelförare bak
SRAM Apex
Växelreglage
SRAM TT500 SL
Kassett eller ev. drev bak
SRAM PG-1050, 10-speed, 11-28
Kedja
KMC X10 CP
Vevparti
SRAM S150
Vevparti utväxling
52/36
Vevlager
Sealed cartridge, PowerSpline, 68mm
Pedaler
Nylon flat test ride, loose-ball, w/ reflectors
Hjul fram
DT Axis 1.0
Hjul bak
DT Axis 1.0
Fälgar
Nav fram
Nav bak
Ekrar
Däck fram
Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x23c
Däck bak
Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x23c
Innerslang
Standard presta valve
Sadel
Body Geometry Romin Evo Comp, Cr-Mo rails, 143mm
Sadelstolpe
Venge Aero FACT Carbon
Sadelstolpsklämma
Venge Seat Clamp NOTESChainstay protector, derailleur hanger, clear coat, owner's manual
Ramgeometri
Frame size
XS S M L XL.
Frame Reach
365mm 385mm 405mm 425mm 445mm.
Frame stack
495mm 515mm 540mm 565mm 590mm.
Stem length -18° horizontal
90mm 90mm 90mm 90mm 90mm.
Seat tube length bottom bracket center to top
485mm 545mm 570mm 597mm 622mm.
Top tube length
484mm 508mm 533mm 559mm 585mm.
Bottom bracket drop
72mm 72mm 72mm 72mm 72mm.
Chain stay length
395mm 395mm 395mm 395mm 395mm.
Seat tube angle
77° 77° 77° 77° 77°.
Head tube angle
70.25° 71.5° 72° 72.5° 72.5°.
Fork rake
50mm 50mm 45mm 45mm 45mm.
Trail
68mm 60mm 63mm 59mm 59mm.
Front to center
575mm 590mm 609mm 632mm 660mm.
Wheel base
959mm 974mm 993mm 1016mm 1044mm.
Stand over height
725mm 761mm 786mm 812mm 836mm.
Head tube length
98mm 114mm 137mm 161mm 187mm.
Seat post length
300mm 300mm 350mm 350mm 350mm.
Crank length
165mm 170mm 172.5mm 172.5mm 175mm.
