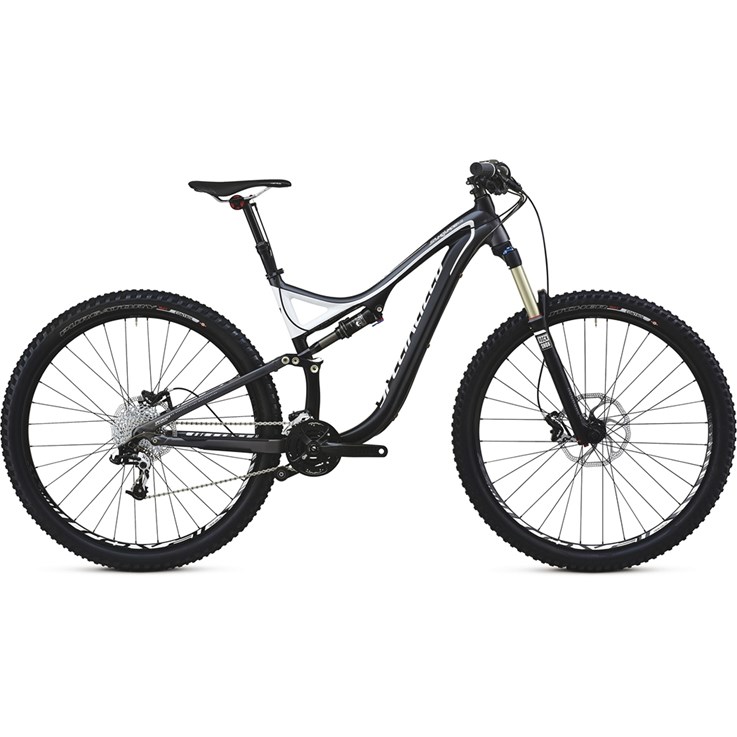

Specialized Stumpjumper FSR Comp Evo Grå/Vit/Svart

Cykelbeskrivning

The Stumpjumper FSR Comp EVO is purpose-built for the aggressive trail rider whose performance demands usually outgun thier budget, and features a slacker head angle and 150mm of front and rear travel. EVO performance tweaks include a Custom FOX Float CTD Evolution shock with AUTOSAG, a RockShox Revelation RC3 fork, and custom SRAM 2x10 drivetrain.

>M5 manipulated alloy frame with 150mm of rear wheel travel, EVO geometry, tapered head tube, 142mm dropouts, PF30 BB, and sealed cartridge bearing pivots pushes the boundaries of trail riding.
>FOX Float CTD Evolution shock with proprietary Specialized AUTOSAG features 3 compression settings: Climb, Trail and Descend, plus ProPedal.
>Specialized Command Post BlackLite uses a remote lever to adjust the saddle height on-the-fly to maximize climbing and descending performance.
>RockShox Revelation RC3 150mm fork has a tapered steerer, 20mm Maxle Lite thru-axle, 3-position damper: open, medium, and firm, rebound adjust, and lockout for a lightweight trail bike slider capable of ripping technical descents.
>Wider Roval rims mated to Specialized Hi Lo hubs, oversized endcaps, a 142+ rear hub spacing, and 12mm thru-axle increase wheel stiffness for more confident riding.
>2Bliss ready Specialized Butcher Control 2.3" dual-compound front tire for premium control on challenging trail conditions.
>All-new 2.3" Purgatory Control with Adaptive Tread Technology has a fast-rolling tread pattern with awesome bite for loose conditions.
>Custom SRAM S-1250 XC Trail double crankset with PF30 spindle for improved ground clearance and a custom alloy guard for chain retention during high-speed descents.
>The 720mm-wide Specialized All-Mountain low-rise handlebar is built to control rough trail riding.
>All-new Sip Grip, a lock-on, Aramid infused, half-waffle MTB grip boosts durability, comfort and control.
>Custom Avid Elixir 5 R SL with tool-less reach adjust, HS-1 rotors and alloy-backed organic pads for high-performance stopping power.
>SRAM PG-1030, 10-speed 11-36t cassette compliments the 2x10 drivetrain.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

M5 hydroformed tubing, EVO geometry, tapered HT, PF30 BB, ISCG ’05, Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel

Stötdämpare bak

Custom FOX Float CTD Evolution with AUTOSAG, Climb, Trail, Descend settings and rebound adj., 194x51mm

Gaffel eller ev. stötdämpare fram

Custom RockShox Revelation RC3, 3P damper, tapered alloy steerer, 3-position compression and reb adj., 20mm Maxle Lite, 150mm travel

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized XC Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm

Styre

Specialized All-Mountain low-rise, 6061 butted alloy, 720mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm

Handtag

Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness

Bromsar fram

Custom Avid Elixir 5 SL, hydraulic disc, alloy backed organic pads, HS-1 rotor. S/M: 180mm; L/XL 200mm rotor

Bromsar bak

Custom Avid Elixir 5 SL, hydraulic disc, alloy backed organic pads, HS-1 rotor. S/M: 160mm; L/XL 180mm rotor

Bromshandtag

Custom Avid Elixir 5 R SL, tool-less reach adj.

Växelförare fram

SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull

Växelförare bak

SRAM X9, 10-speed, mid cage Type 2

Växelreglage

SRAM X7, 10-speed, aluminum trigger, w/MatchMaker clamp

Kassett eller ev. drev bak

SRAM PG-1030, 10-speed, 11-36

Kedja

KMC X10, nickel plate, reusable Missing Link

Vevparti

Custom SRAM S-1250, 7050 alloy arms, 10-speed AM double, PF30 spindle, S: 170mm, Others: 175mm

Vevparti utväxling

36/24, w/ alloy guard

Vevlager

SRAM PF30, OS press-in bearing, sealed cartridge

Pedaler

Resin Test Ride Pedals with toe clips, CEN std.

Fälgar

Roval 26, alloy disc, 28mm wide, 32h

Nav fram

Specialized Hi Lo disc, sealed cartridge bearing, 20mm thru-axle, 32h

Nav bak

New Specialized disc, 4x-sealed cartridge bearing, 12mm thru-axle, 32h

Ekrar

DT Industry, 2.0 stainless

Däck fram

Specialized Butcher Control, 2Bliss Ready, 60TPI, aramid bead, 26x2.3"

Däck bak

Specialized Purgatory Control, 2Bliss Ready, 60TPI, aramid bead, dual-compound, 26x2.3"

Innerslang

Ultralight presta

Sadel

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm travel

Sadelstolpsklämma

Command Post 34.9mm clamp, 7050 hard anodized alloy collar, single bolt NOTESProtective clear coat, derailleur hanger, owners manual

Ramgeometri

Frame size

S M L XL.

Seat tube length center to top

396mm 430mm 468mm 523mm.

Top tube length

, Horizontal 556mm 587mm 617mm 642mm.

Top tube length

, Actual 556mm 588mm 616mm 641mm.

Bottom bracket drop

4mm 4mm 4mm 4mm.

Bottom bracket height

335mm 335mm 335mm 335mm.

Chainstay length

420mm 420mm 420mm 420mm.

Seat tube angle

Actual (Carbon) 68.2° 68.6° 69° 69.4°.

Seat tube angle

Actual (Alloy) 69° 69° 69° 69°.

Seat tube angle

Effective 73.5° 73.5° 73.5° 73.5°.

Head tube angle

67° 67° 67° 67°.

Wheel base

1095mm 1129mm 1160mm 1186mm.

Standover height

745mm 744mm 752mm 761mm.

Head tube length

110mm 130mm 140mm 150mm.

Stack

572mm 592mm 602mm 611mm.

Reach

388mm 414mm 442mm 464mm.

Handlebar width

720mm 720mm 720mm 720mm.

Stem length

60mm 60mm 75mm 90mm.

Crank length

170mm 175mm 175mm 175mm.

Seatpost length

380mm 425mm 425mm 425mm.
