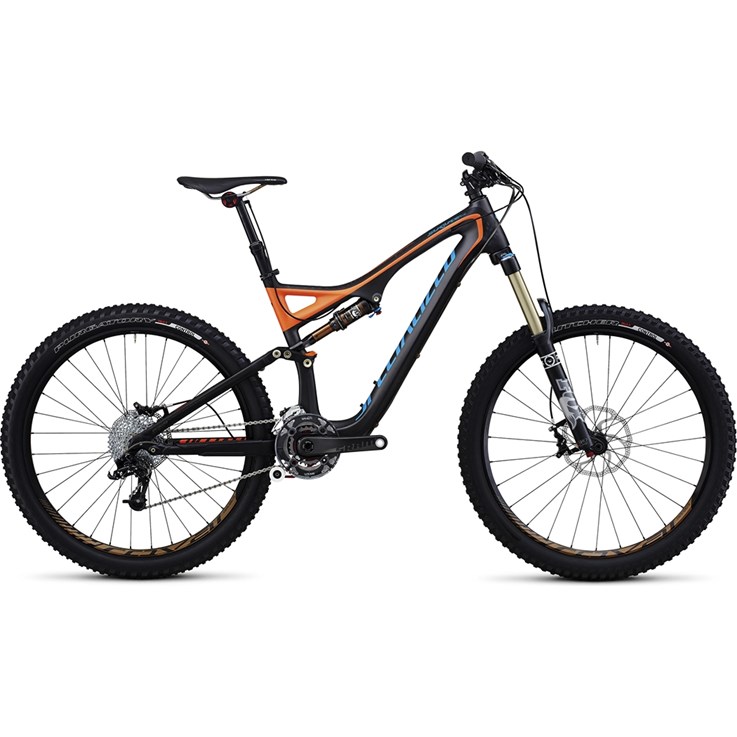

Specialized Stumpjumper FSR Expert Kolfiber Evo Grå/Orange/Blå

Cykelbeskrivning

The Stumpjumper FSR Expert Carbon EVO is purpose-built for the aggressive trail rider with a slacker head angle and 150mm of front and rear travel. EVO performance tweaks include a Custom FOX Float CTD Factory shock with AUTOSAG and Boost Valve, a Fox 34 TALAS CTD fork, and custom SRAM 2x10 drivetrain, carbon crank, and X0 Trail World Cup brakes.

>FACT 9m carbon main triangle with EVO geometry and M5 alloy rear triangle, 150mm of travel, full-cartridge bearing pivots, PF30 BB, ISCG '05, and 142mm dropouts makes an amazingly stiff, light, and agile trail bike.
>FOX Float CTD Evolution shock with Boost Valve, Kashima coating and AUTOSAG features 3 compression settings: Climb, Trail and Descend, plus ProPedal.
>FOX 34 TALAS CTD Performance fork features 150-120mm of adjustable travel, settings specifically for climbing and descending, and a 15mm thru-axle for precise handling.
>Roval Traverse 142+ all-mountain wheelset, with DT Swiss internals and spokes, 15mm thru-axle, and a 142+ rear hub spacing for durable, lightweight, and tubeless-ready performance.
>2Bliss ready Specialized Butcher Control 2.3" dual-compound front tire for premium control on challenging trail conditions.
>Custom SRAM S2200 carbon double XC Trail crankset with 36/24 gearing is built for strong ,yet lightweight performance; features a Gamut bashguard for added protection and chain retention.
>The 720mm-wide Specialized All-Mountain low-rise handlebar is built to control rough trail riding.
>All-new Sip Grip, a lock-on, Aramid infused, half-waffle MTB grip boosts durability, comfort and control.
>Avid X0 Trail World Cup hydraulic disc brakes with four-piston calipers deliver powerful stopping performance with a lightweight trail-friendly package.
>SRAM PG-1050, 10-speed 11-36t cassette compliments the 2x10 XC Trail drivetrain.
>Specialized Command Post BlackLite uses a remote lever to adjust the saddle height on-the-fly to maximize climbing and descending performance.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

FACT IS 9m carbon front triangle, EVO geometry, M5 alloy rear triangle, tapered HT, carbon PF30 BB, ISCG ’05, internal Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel

Stötdämpare bak

Custom FOX Float CTD Factory with AUTOSAG and Boost Valve, Climb, Trail, Descend settings and rebound adj., 194x51mm

Gaffel eller ev. stötdämpare fram

FOX 34 TALAS CTD Performance 26, air spring, tapered alloy steerer, Climb, Trail, Descend settings and reb adj., 15mm thru-axle, 150/120mm travel

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized XC Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm

Styre

Specialized All-Mountain low-rise bar, 7050 alloy, 720mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm

Handtag

Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness

Bromsar fram

Custom Avid X0 Trail World Cup, 4-piston caliper, alloy backed semi-metal pad, S/M:180mm rotor, Others: 200mm rotor

Bromsar bak

Custom Avid X0 Trail World Cup, 4-piston caliper, alloy backed semi-metal pad, S/M:160mm rotor, Others: 180mm rotor

Bromshandtag

Custom Avid X0, carbon blade, tool-less reach adj. w/MatchMaker clamp

Växelförare fram

SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull

Växelförare bak

SRAM X0 Type 2, 10-speed, mid cage

Växelreglage

SRAM X9, 10-speed, trigger, w/MatchMaker clamp

Kassett eller ev. drev bak

SRAM PG-1050, 10-speed, 11-36

Kedja

KMC X10, nickel plate, reusable Missing Link

Vevparti

Custom SRAM carbon S-2200, 10-speed AM double, PF30 spindle, removable spider, Gamut bash guard, S: 170mm, others: 175mm

Vevparti utväxling

Vevlager

SRAM PF30, OS press-in bearing, sealed cartridge

Pedaler

Resin Test Ride Pedals with toe clips, CEN std.

Fälgar

Roval Traverse, alloy disc, 28mm, 27/32h

Nav fram

Roval Traverse, 20mm thru-axle end caps, 27h

Nav bak

Roval Traverse 142+, 12mm thru-axle, 32h

Ekrar

DT Swiss Super Comp, 2.0/1.65/1.8 stainless

Däck fram

Specialized Butcher Control, 2Bliss Ready, 60TPI, aramid bead, 26x2.3"

Däck bak

Specialized Purgatory Control, 2Bliss Ready, 60TPI, aramid bead, dual-compound, 26x2.3"

Innerslang

Ultralight presta

Sadel

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm travel

Sadelstolpsklämma

Command Post 34.9mm clamp, 7050 hard anodized alloy collar, single bolt w/cable guide NOTESProtective clear coat, derailleur hanger, reflectors, owners manual, Mylar DT protector

Ramgeometri

Frame size

S M L XL.

Seat tube length center to top

396mm 430mm 468mm 523mm.

Top tube length

, Horizontal 556mm 587mm 617mm 642mm.

Top tube length

, Actual 556mm 588mm 616mm 641mm.

Bottom bracket drop

4mm 4mm 4mm 4mm.

Bottom bracket height

335mm 335mm 335mm 335mm.

Chainstay length

420mm 420mm 420mm 420mm.

Seat tube angle

Actual (Carbon) 68.2° 68.6° 69° 69.4°.

Seat tube angle

Actual (Alloy) 69° 69° 69° 69°.

Seat tube angle

Effective 73.5° 73.5° 73.5° 73.5°.

Head tube angle

67° 67° 67° 67°.

Wheel base

1095mm 1129mm 1160mm 1186mm.

Standover height

745mm 744mm 752mm 761mm.

Head tube length

110mm 130mm 140mm 150mm.

Stack

572mm 592mm 602mm 611mm.

Reach

388mm 414mm 442mm 464mm.

Handlebar width

720mm 720mm 720mm 720mm.

Stem length

60mm 60mm 75mm 90mm.

Crank length

170mm 175mm 175mm 175mm.

Seatpost length

380mm 425mm 425mm 425mm.
