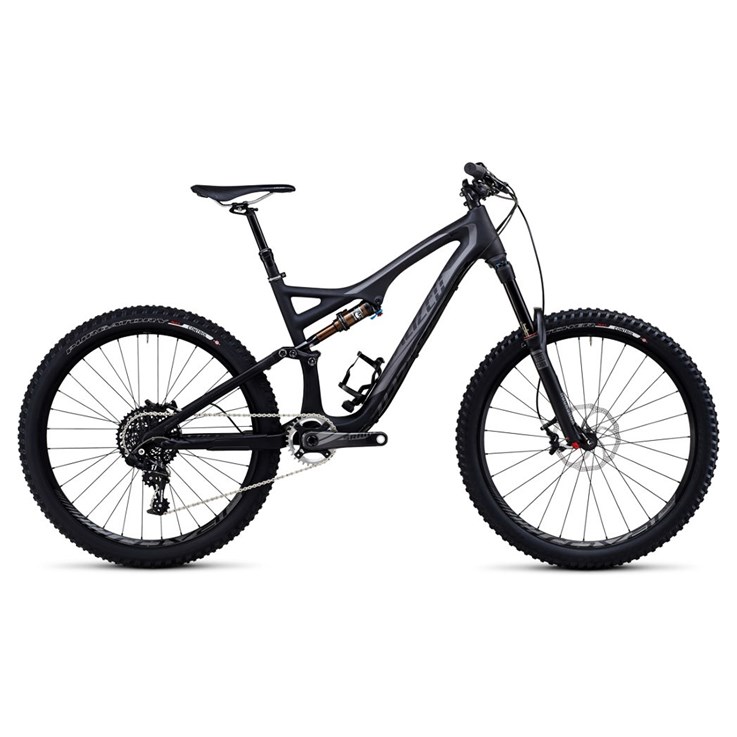

Specialized Stumpjumper FSR Expert Carbon EVO Materialfärg/Svart/Flerfärgad

Cykelbeskrivning

The Stumpjumper FSR Expert Carbon EVO is purpose-built for the aggressive trail rider. It separates itself from other carbon Stumpys with a slacker head angle and 150mm of front and rear travel. The Expert Carbon EVO features a Fox Float CTD Factory shock with AUTOSAG, Boost Valve and Kashima coating, a RockShox Pike RC fork, SRAM X0 11-speed drivetrain and 2Bliss Ready Specialized Butcher and Purgatory Control 2.3" tires.

>Hot, new asymmetrical graphic on the FACT 9m carbon FSR frame with slacker, lower EVO geometry, 150mm of travel, full-cartridge bearing pivots, PF30 BB, and 142mm dropouts makes it the meanest trail bike out there.
>FOX Float CTD Factory shock with Boost Valve, Kashima coating and AUTOSAG features 3 compression settings: Climb, Trail and Descend with Trail and rebound adjust.
>750mm wide mini-rise alloy handlebars control the new RockShox Pike RC fork is a great blend of stiffness and weight with great tuning options with 150mm of and a 15mm thru-axle for precise handling.
>Lightweight Roval Traverse 142+ alloy All-Mountain wheelset, with DT Swiss internals and spokes, 15mm thru-axle, and 142mm rear hub spacing for durable, lightweight, and tubeless-ready performance.
>The 2Bliss Ready Specialized Butcher and Purgatory Control 2.3" tires for premium control on challenging trail conditions.
>SRAM X0 11-speed drivetrain featuring a custom S-2200 carbon crankset with PF30 spindle, single chainring setup works with SRAM X0 10-42 cassette for premium shifting and a huge gear range.
>All-new Avid Elixir 7 Trail hydraulic disc brakes with four-piston calipers deliver powerful stopping performance with a lightweight trail-friendly package.
>All-new, Specialized Command Post IR uses a remote lever to adjust saddle height on-the-fly to maximize climbing and descending performance.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas

Ram

FACT 9m carbon front triangle, EVO geometry, FACT IS construction, M5 alloy rear triangle, tapered headtube, carbon PF30 BB, ISCG ’05, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel

SWAT (Storage, water, air and tools)

Bottle cage, EMT Tool, and Top Cap Chain Tool w/ SWAT Technology

Stötdämpare bak

Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, Kashima coating, Climb, Trail, Descend settings and reb adj., 195x51mm

Gaffel eller ev. stötdämpare fram

RockShox RC, Solo Air spring, tapered alloy steerer, comp, lockout, and reb adj., 15mm thru-axle, 150mm travel

Styrlager

1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings

Styrstolpe eller ev. styrstam

Specialized Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm clamp

Styre

Specialized All-Mountain, low-rise, 7050 alloy, 750mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm

Handtag

Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness

Bromsar fram

Custom Avid Elixir 7 Trail, 4-piston caliper, steel backed metallic pad, S/M: 180mm, Others: 200mm rotor

Bromsar bak

Custom Avid Elixir 7 Trail, 4-piston caliper, steel backed metallic pad, S/M: 160mm, Others: 180mm rotor

Bromshandtag

Custom Avid Elixir 7 Trail, hydraulic disc, tool-less reach adj.

Växelförare fram

Växelförare bak

SRAM X0, 11-speed, mid cage

Växelreglage

SRAM X0, 11-speed, trigger

Kassett eller ev. drev bak

SRAM X0, 11-speed, 10-42

Kedja

SRAM X0, 11-speed, hollow plates/pins, PowerLink

Vevparti

Custom SRAM carbon S-2200, 34T XX1 style single ring, PF30 spindle, removable spider, S: 170mm, Others: 175mm

Vevparti utväxling

Vevlager

SRAM PF30, OS press-in bearings, sealed cartridge

Pedaler

Fälgar

Roval Traverse, alloy disc, 24mm internal width, 27h/32h

Nav fram

Roval Traverse, 15mm thru-axle end caps, 27h

Nav bak

Roval Traverse 142+, XX1 driver body, 12mm thru-axle, 32h

Ekrar

DT Swiss Super Comp, 2.0/1.65/1.8 stainless

Däck fram

Specialized Butcher Control, 2Bliss Ready, 26x2.3", foldable aramid bead, 60TPI

Däck bak

Specialized Purgatory Control, 2Bliss Ready, 26x2.3", foldable aramid bead, dual-compound, 60 TPI

Innerslang

Sadel

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

Sadelstolpe

Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel

Sadelstolpsklämma

7050 hard anodized alloy, single bolt, 34.9mm

Övrigt

Ramgeometri

Frame size

S M L XL.

Bottom bracket drop

4mm 4mm 4mm 4mm.

Bottom bracket height

335mm 335mm 335mm 335mm.

Chainstay length

420mm 420mm 420mm 420mm.

Crank length

170mm 175mm 175mm 175mm.

Handlebar width

750mm 750mm 750mm 750mm.

Head tube angle

67° 67° 67° 67°.

Head tube length

110mm 130mm 140mm 150mm.

Reach

388mm 414mm 442mm 464mm.

Seat tube angle

Actual (Alloy) 69° 69° 69° 69°.

Seat tube angle

Actual (Carbon) 68.2° 68.6° 69° 69.4°.

Seat tube angle

Effective 73.5° 73.5° 73.5° 73.5°.

Seat tube length center to top

396mm 430mm 468mm 523mm.

Seatpost length

380mm 425mm 425mm 425mm.

Stack

572mm 592mm 602mm 611mm.

Standover height

745mm 744mm 752mm 761mm.

Stem length

60mm 60mm 75mm 90mm.

Top tube length

, Actual 556mm 588mm 616mm 641mm.

Top tube length

, Horizontal 556mm 587mm 617mm 642mm.

Wheel base

1095mm 1129mm 1160mm 1186mm.
