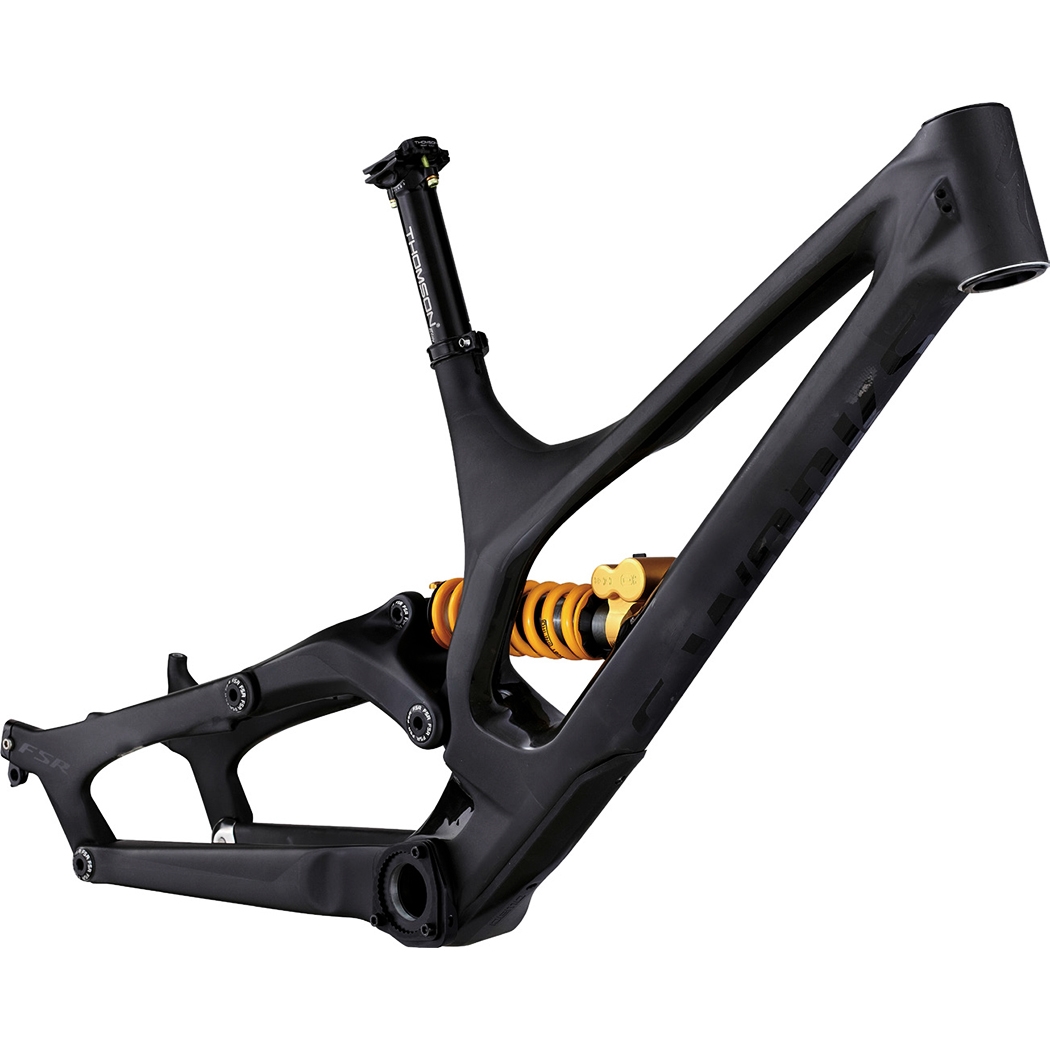

Specialized S-Works Demo 8 Frame Satin/Gloss Carbon/Black

Cykelbeskrivning

Let's not kid ourselves—downhill is all about speed. And when it comes to squeezing every last ounce of fast out of a track, your machine needs to be just as fine-tuned as your skills. That's why we offer our legendary, World-Cup-proven S-Works Demo 8 FSR as a frameset. It's constructed from our finest carbon fiber, FACT 11m, for unparalleled stiffness and strength. Meanwhile, it's been built aboard our ultra-capable S3 650b Geometry to ensure a roomy top tube for added control, ultra-short, nimble chainstays, a low bottom bracket that keeps you feeling planted, and a slack front end that provides the utmost in responsive handling at speed. For suspension, this Demo features 200mm of travel delivered via a game changing custom Öhlins rear shock. Altogether, it's a blank canvas of pure performance and potential speed. Build it how you want it, and race it like you mean it.

Cykelspecifikationer

Vikt

Uppgift om vikt saknas.

Ram

FACT 11m carbon, S3 Geometry, carbon front triangle, full carbon link and rear end, FACT IS construction, PF30 BB, full internal cable routing, 135mm dropouts, lipped and sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm travel.

Stötdämpare bak

Custom Öhlins, high/low speed compression adjust, rebound adjust, 9.5x3".

Styrlager

1-1/8" upper, 1-1/2" lower, semi-integrated, cartridge bearings.

Vevlager

SRAM, BB30, 83mm.

Sadelstolpe

Thomson, alloy, straight, 12-degree clamp.

Sadelstolpsklämma

Specialized, 7050 alloy, single bolt, 36.9mm.

Ramgeometri

Frame size

S M L XL.

Stack

614mm 614mm 614mm 614mm.

Reach

395mm 420mm 440mm 460mm.

Head tube length

105mm 105mm 105mm 105mm.

Head tube angle

63.5° 63.5° 63.5° 63.5°.

Bottom bracket height

342mm 342mm 342mm 342mm.

Bottom bracket drop

12mm 12mm 12mm 12mm.

Trail

118mm 118mm 118mm 118mm.

Fork length full

590mm 590mm 590mm 590mm.

Fork rake offset

52mm 52mm 52mm 52mm.

Front to center

754mm 779mm 799mm 819mm.

Chain stay length

430mm 430mm 430mm 430mm.

Wheel base

1183mm 1208mm 1228mm 1248mm.

Seat tube length horizontal

571mm 596mm 616mm 636mm.

Standover height

698mm 698mm 698mm 698mm.

Seat tube length

394mm 394mm 419mm 419mm.

Seat tube angle

74° 74° 74° 74°.

Handlebar width

780mm 780mm 780mm 780mm.

Stem length

45mm 45mm 45mm 54mm.

Crank length

165mm 165mm 165mm 165mm.

Seatpost length

367mm 367mm 367mm 367mm.
